Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Shock Sensor >> Diagrams

Shock Sensor: Diagrams

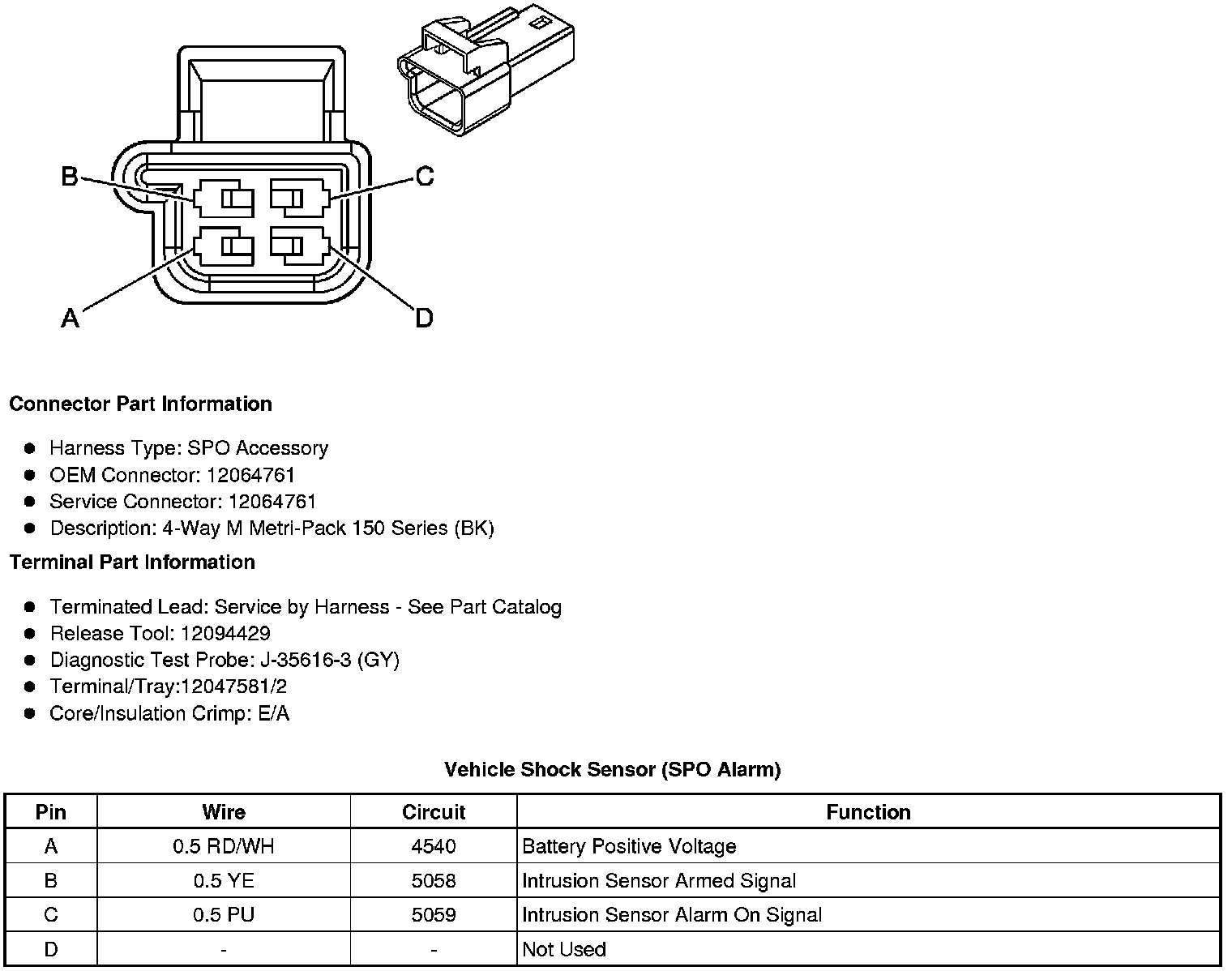

Component Connector End Views

Vehicle Shock Sensor (SPO Alarm)
