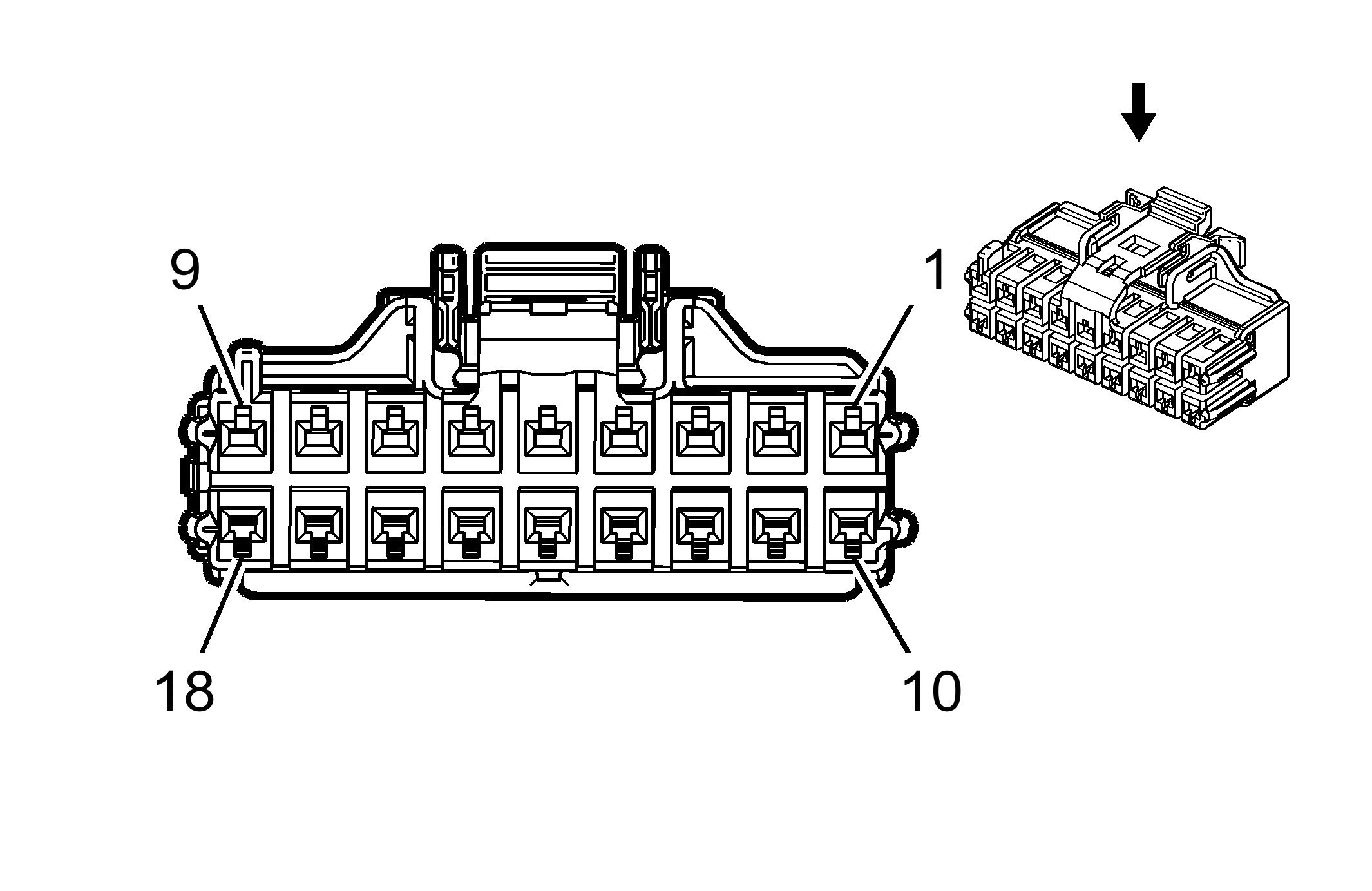

C4A Hybrid/EV Battery Pack Cell Section 1 X1
 Courtesy of GENERAL MOTORS CORP.
|
Connector Part Information
- Harness Type: Hybrid Battery
- OEM Connector: 10021053-1-0000A
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F (OG)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Service by Harness - See Part Catalog
- Diagnostic Test Probe: Service by Harness - See Part Catalog
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Service by Harness - See Part Catalog
|
C4A Hybrid/EV Battery Pack Cell Section 1 X1
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
- |
- |
- |
Not Used |
- |
| 2 |
0.35 |
BN |
5571 |
Battery Voltage Signal (12) |
- |
| 3 |
0.35 |
YE |
5573 |
Battery Voltage Signal (14) |
- |
| 4 |
0.35 |
BN/WH |
5575 |
Battery Voltage Signal (16) |
- |
| 5-7 |
- |
- |
- |
Not Used |
- |
| 8 |
0.35 |
L-GN/VT |
5577 |
Battery Voltage Signal (18) |
- |
| 9 |
0.35 |
L-GN/GY |
5407 |
Battery Module Temperature Signal (16) |
- |
| 10 |
- |
- |
- |
Not Used |
- |
| 11 |
0.35 |
YE/GY |
5572 |
Battery Voltage Signal (13) |
- |
| 12 |
0.35 |
WH/BK |
5574 |
Battery Voltage Signal (15) |
- |
| 13-16 |
- |
- |
- |
Not Used |
- |
| 17 |
0.35 |
WH/L-BU |
5576 |
Battery Voltage Signal (17) |
- |
| 18 |
0.35 |
BK/L-GN |
3775 |
Low Reference |
- |
