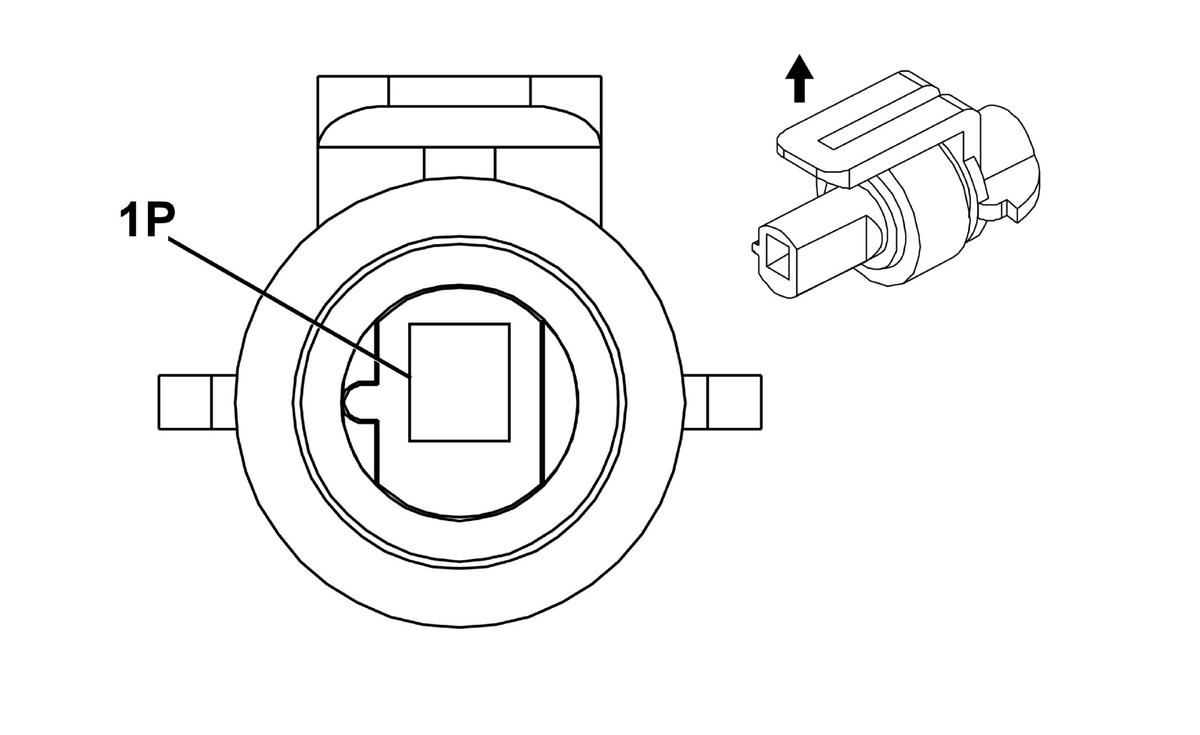

B37 Engine Oil Pressure Switch
 Courtesy of GENERAL MOTORS CORP.
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 15345499
- Service Connector: 13355771
- Description: 1-Way F Metri-Pack 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 12048074/2
- Core/Insulation Crimp: E/1
|
B37 Engine Oil Pressure Switch
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
0.75 |
YE/L-BU |
231 |
Oil Pressure Switch Signal |
- |
