Instrument Cluster Wiring Schematics

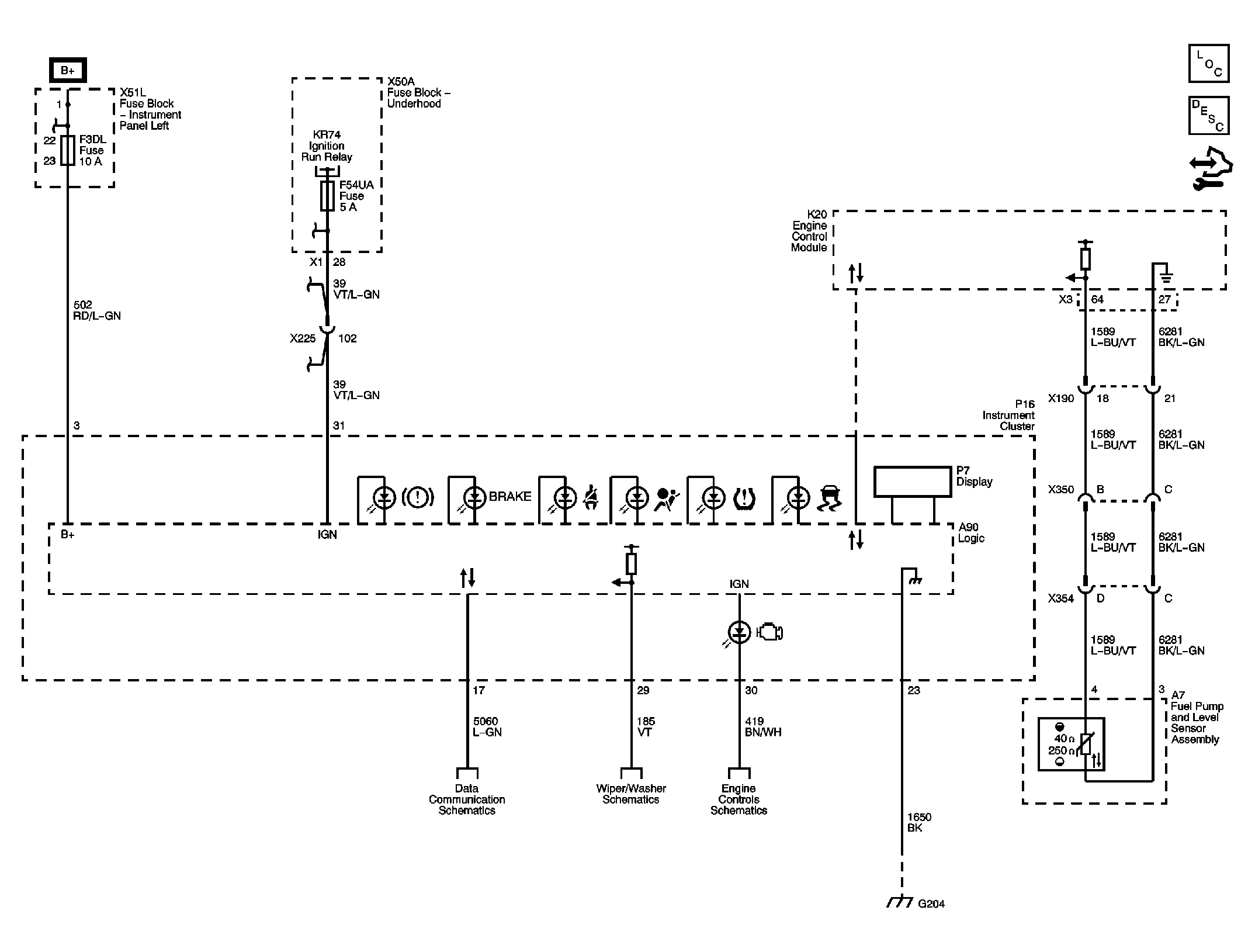

Fig 1: Power, Ground, Serial Data And Indicators Wiring Schematic

GM2488725

Courtesy of GENERAL MOTORS CORP.
