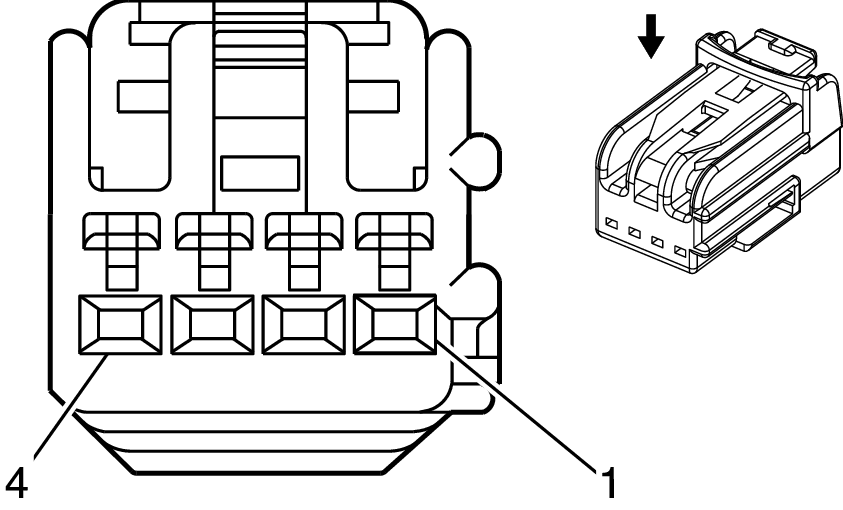

X902 Body Harness to Liftgate Harness (UVC)
Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-6386-40
- Service Connector: 88988116
- Description: 4-Way F 64 YESC Series (L-GY)
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 7282-6560-40
- Service Connector: 19153179
- Description: 4-Way M 64 YESC Series (L-GY)
|
Terminal Part Information
- Terminated Lead: 13575847
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: 7116-4720-02/14
- Core/Insulation Crimp: H/H
|
Terminal Part Information
- Terminated Lead: 13575828
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-65B (L-BU)
- Terminal/Tray: 7114-4720-02/14
- Core/Insulation Crimp: H/H
|
X902 Body Harness to Liftgate Harness (UVC)
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PK |
239 |
Ignition Voltage |
1 |
0.35 PK |
239 |
Ignition Voltage |
| 2 |
0.35 BARE |
6974 |
Shield Wire |
2 |
0.35 BARE |
6974 |
Shield Wire |
| 3 |
0.35 PK |
6972 |
Camera Video Signal (+) |
3 |
0.35 PK |
6972 |
Camera Video Signal (+) |
| 4 |
0.35 L-BU |
6973 |
Camera Video Signal (-) |
4 |
0.35 L-BU |
6973 |
Camera Video Signal (-) |
