X901 Body Harness to Liftgate Harness

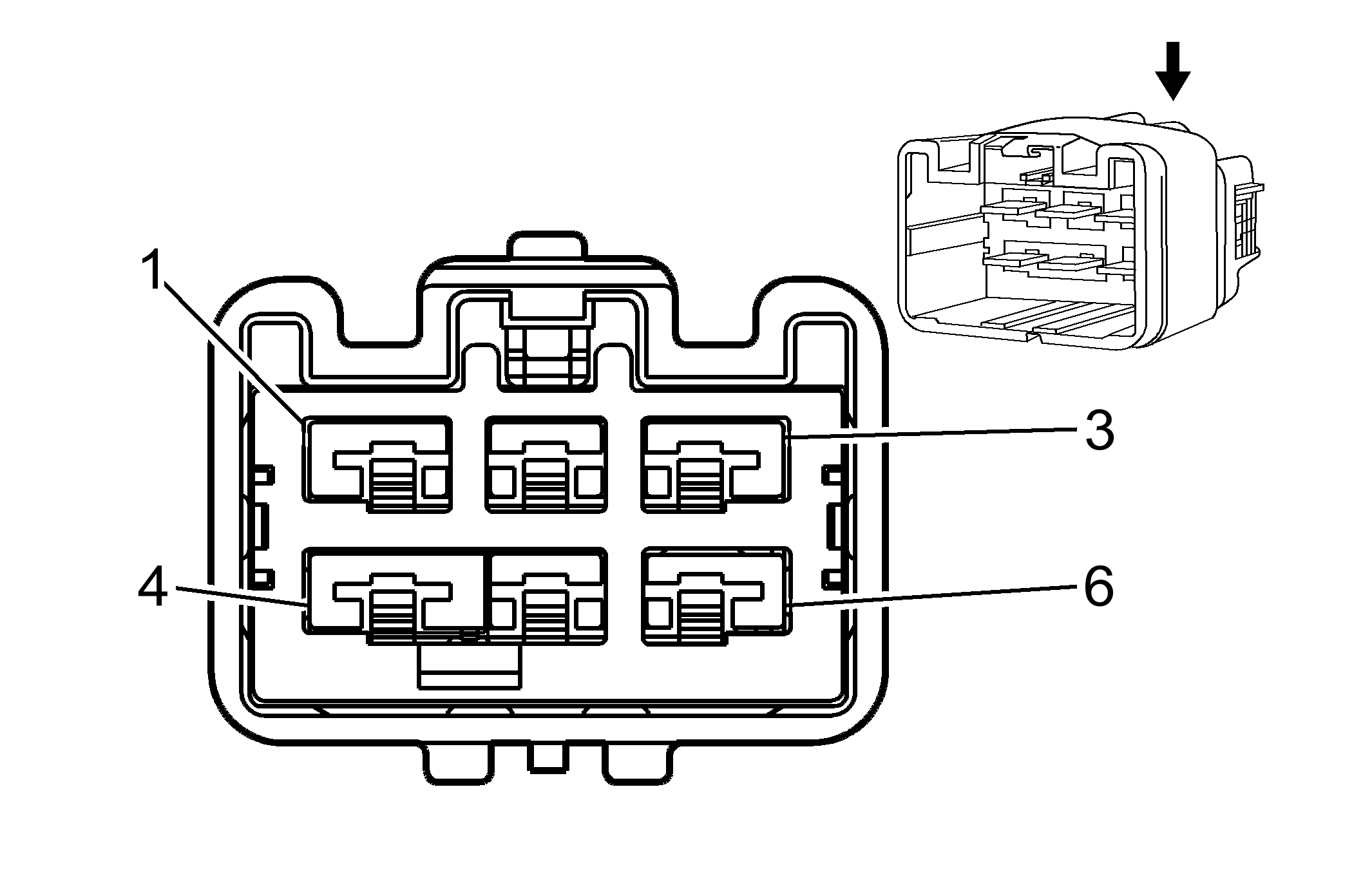

Connector Part Information Harness Type: Body OEM Connector: 7283-3740-40 Service Connector: 19153168 Description: 6-Way F Kaizen YESC Series (L-GY)

Connector Part Information Harness Type: Liftgate OEM Connector: 7282-5604-40 Service Connector: 19167747 Description: 6-Way M 6.3 YESC Series (L-GY)

Terminal Part Information Pins: 1, 3 Terminated Lead: 13575835 Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-42 (RD) Terminal/Tray: 7116-4122-02/10 Core/Insulation Crimp: Pins: 1 : A/B Core/Insulation Crimp: Pins: 3 : D/G Pins: 2, 4 Terminated Lead: 13578928 Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-42 (RD) Terminal/Tray: 7116-4121-02/10 Core/Insulation Crimp: C/B Pins: 5, 6 Terminated Lead: 13575833 Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-42 (RD) Terminal/Tray: 7116-4120-02/9 Core/Insulation Crimp: E/B

Terminal Part Information Pins: 1, 3 Terminated Lead: Pending Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-43 (RD) Terminal/Tray: 7114-4122-02/9 Core/Insulation Crimp: Pins: 1 : A/B Core/Insulation Crimp: Pins: 3 : D/G Pins: 2, 4 Terminated Lead: Pending Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-43 (RD) Terminal/Tray: 7114-4121-02/9 Core/Insulation Crimp: C/B Pins: 5, 6 Terminated Lead: 13575825 Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-43 (RD) Terminal/Tray: 7114-4120-02/9 Core/Insulation Crimp: E/B

X901 Body Harness to Liftgate Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	3 BK	650	Ground	1	3 BK	650	Ground
2	2 BN	5790	Liftgate Cinch Latch Motor Open Control (TB5)	2	2 BN	5790	Liftgate Cinch Latch Motor Open Control (TB5)
3	5 PU	293	Rear Defog Element Voltage	3	5 PU	293	Rear Defog Element Voltage
4	2 L-BU	5791	Liftgate Cinch Latch Motor Close Control (TB5)	4	2 L-BU	5791	Liftgate Cinch Latch Motor Close Control (TB5)
5	1 BK	650	Ground	5	1 BK	650	Ground
6	1 RD/WH	3840	Battery Positive Voltage	6	1 RD/WH	3840	Battery Positive Voltage
