X500 Driver Door Harness to Body Harness

GM1864301

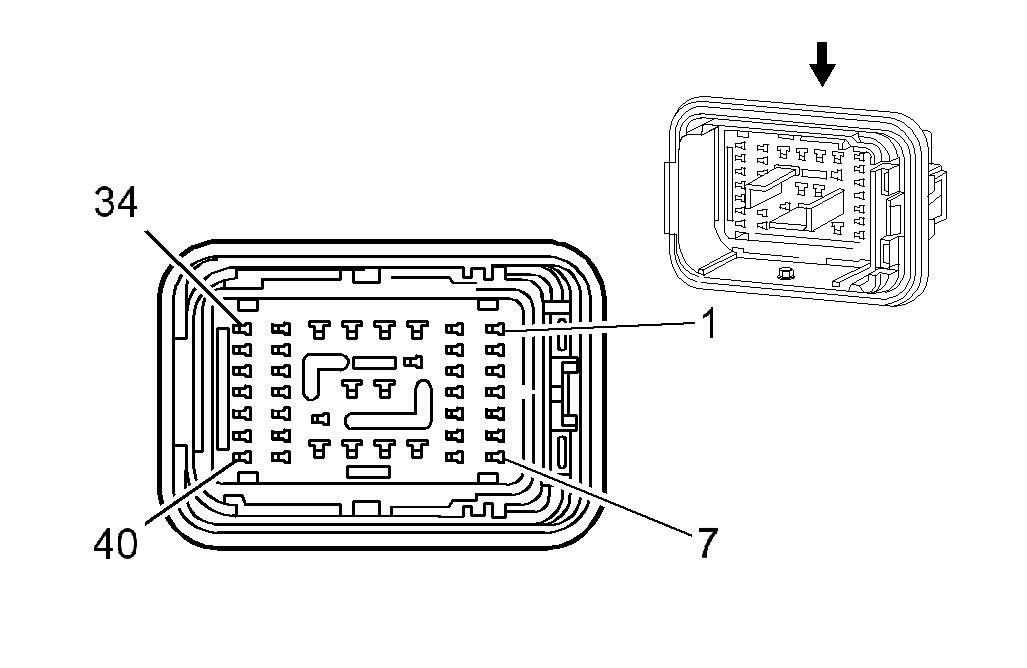

GM1864302
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 6098-5138
  • Service Connector: 19167743
  • Description: 40-Way F Sealed (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 6098-6553
  • Service Connector: 13577279
  • Description: 40-Way M Sealed (BK)
Terminal Part Information
  • Pins: 1, 2, 4, 6-14, 16, 25, 27-39
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Pins: 15, 23
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: F/D
  • Pins: 17-22, 24, 26
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins: 18, 20, 21 - E/A
  • Core/Insulation Crimp:Pins: 17, 19, 22, 24, 26 - 2/A
 Terminal Part Information
  • Pins: 1, 2, 4, 6-14, 16, 25, 27-39
  • Terminated Lead: Service by Terminal - 15304702
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: Pins: 1, 2, 4, 6, 9-14, 16, 25, 28-39 - E/C
  • Core/Insulation Crimp: Pins: 7, 8, 27 - E/4
  • Terminated Lead: Service by Terminal - 15304724
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-5 (PU)
  • Terminal/Tray: 15304724/8
  • Core/Insulation Crimp: Pins: 15, 23 - A/D
  • Core/Insulation Crimp: Pins: 19, 22 - 2/A
  • Pins: 17, 24, 26
  • Terminated Lead: Service by Terminal - 15304724
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-5 (PU)
  • Terminal/Tray: 15304724/8
  • Core/Insulation Crimp: 2/A
  • Pins: 18, 20, 21
  • Terminated Lead: Service by Terminal - 15304722
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-5 (PU)
  • Terminal/Tray: 15304722/8
  • Core/Insulation Crimp: E/C
X500 Driver Door Harness to Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.35 L-BU/WH 280 Power Window Master Switch Lockout Right Rear Signal (without AXE) 1 0.35 L-BU/WH 280 Power Window Master Switch Lockout Right Rear Signal (without AXE)
2 0.35 GY 6175 Driver Heated Seat Switch Back Signal (A45 with KA1 or KB6) 2 0.35 GY 6175 Driver Heated Seat Switch Back Signal (A45 with KA1 or KB6)
3 - - Not Used 3 - - Not Used
4 0.5 GY/BK 745 Left Front Door Ajar Switch Signal (without AXE) 4 0.35 GY/BK 745 Left Front Door Ajar Switch Signal (without AXE)
5 - - Not Used 5 - - Not Used
6 0.35 PU 169 Power Window Master Switch Left Rear Down Signal (without AXE) 6 0.35 PU 169 Power Window Master Switch Left Rear Down Signal (without AXE)
7 0.5 L-BU/WH 1314 Left Turn Signal Indicator Lamp Voltage (DNP or DNT or DS3) 7 0.5 L-BU/WH 1314 Left Turn Signal Indicator Lamp Voltage (DNP or DNT or DS3)
8 0.5 OG 2267 Mirror Heating Element Voltage (DS3) 8 0.5 OG 2267 Mirror Heating Element Voltage (DS3)
9 0.35 PU 6174 Driver Heated Seat Switch Back LED (A45 with KA1 or KB6) 9 0.35 PU 6174 Driver Heated Seat Switch Back LED (A45 with KA1 or KB6)
10 0.35 PU/WH 889 Passenger Mirror Motor Down Control (DL6 or DS3) 10 0.35 PU/WH 889 Passenger Mirror Motor Down Control (DL6 or DS3)
11 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal (without AXE) 11 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal (without AXE)
12 0.35 OG/WH 881 Passenger Mirror Motor Right Control (DL6 or DS3) 12 0.35 OG/WH 881 Passenger Mirror Motor Right Control (DL6 or DS3)
13 0.35 D-BU 1307 Power Window Master Switch Lockout Signal (without AXE) 13 0.35 D-BU 1307 Power Window Master Switch Lockout Signal (without AXE)
14 0.35 TN/WH 330 Passenger Mirror Motor Voltage (DL6 or DS3) 14 0.35 TN/WH 330 Passenger Mirror Motor Voltage (DL6 or DS3)
15 3 BK 550 Ground 15 3 BK 550 Ground
16 0.35 D-BU 6172 Driver Heated Seat Switch Back Cushion Signal (A45 with KA1 or KB6) 16 0.35 D-BU 6172 Driver Heated Seat Switch Back Cushion Signal (A45 with KA1 or KB6)
17 1 RD/WH 3240 Battery Positive Voltage (AXE) 17 1 RD/WH 3240 Battery Positive Voltage (AXE)
18 0.35 BN 6173 Driver Heated Seat Switch Back Cushion LED (A45 with KA1 or KB6) 18 0.8 BN 6173 Driver Heated Seat Switch Back Cushion LED (A45 with KA1 or KB6)
19 0.8 GY 118 Left Front Speaker Output (-) 19 0.8 GY 118 Left Front Speaker Output (-)
20 0.35 WH/BK 6177 Driver Heated Seat Medium Indicator Control (A45 with KA1 or KB6) 20 0.8 WH/BK 6177 Driver Heated Seat Medium Indicator Control (A45 with KA1 or KB6)
21 0.5 RD/WH 1940 Battery Positive Voltage (DL6 or DS3) 21 0.5 RD/WH 1940 Battery Positive Voltage (DL6 or DS3)
22 0.8 TN 201 Left Front Speaker Output (+) 22 1 TN 201 Left Front Speaker Output (+)
23 3 RD/WH 3340 Battery Positive Voltage (without AXE) 23 3 RD/WH 3340 Battery Positive Voltage
2 RD/WH 3340 Battery Positive Voltage (AXE)
24 0.8 TN 694 Driver Door Lock Actuator Unlock Control (without AXE) 24 1 TN 694 Driver Door Lock Actuator Unlock Control (without AXE)
25 0.35 L-BU 1662 Driver Heated Seat Low Temperature Indicator Control (A45 with KA1 or KB6) 25 0.35 L-BU 1662 Driver Heated Seat Low Temperature Indicator Control (A45 with KA1 or KB6)
26 0.8 GY 295 Door Lock Actuator Lock Control (without AXE) 26 1 GY 295 Door Lock Actuator Lock Control (without AXE)
27 0.35 D-GN 1661 Driver Heated Seat High Temperature Indicator Control (A45 with KA1 or KB6) 27 0.35 D-GN 1661 Driver Heated Seat High Temperature Indicator Control (A45 with KA1 or KB6)
0.35 GY 8 Instrument Panel Lamp Voltage (without AXE or DL6 or DS3) 0.5 GY 8 Instrument Panel Lamp Voltage (without AXE or DL6 or DS3)
28 0.35 L-BU 166 Power Window Master Switch Right Front Up Signal (without AXE) 28 0.35 L-BU 166 Power Window Master Switch Right Front Up Signal (without AXE)
29 0.35 TN 167 Power Window Master Switch Right Front Down Signal (without AXE) 29 0.35 TN 167 Power Window Master Switch Right Front Down Signal (without AXE)
30 0.35 GY 1690 Automatic Day/Night Mirror Signal (DNP) 30 0.35 GY 1690 Automatic Day/Night Mirror Signal (DNP)
31 0.35 PK 1691 Low Reference (DNP) 31 0.35 PK 1691 Low Reference (DNP)
32 0.35 WH 2132 Side Impact Sensing Module - Left - Signal 32 0.35 WH 2132 Side Impact Sensing Module - Left - Signal
33 0.35 PU/WH 6628 Low Reference 33 0.35 PU/WH 6628 Low Reference
34 0.5 OG/BK 781 Driver Door Lock Switch Unlock Signal (without AXE) 34 0.35 OG/BK 781 Driver Door Lock Switch Unlock Signal (without AXE)
35 0.5 PK/BK 780 Driver Door Lock Switch Lock Signal (without AXE) 35 0.35 PK/BK 780 Driver Door Lock Switch Lock Signal (without AXE)
36 0.35 PU/WH 1382 LED Dimming Signal (without AXE) 36 0.35 PU/WH 1382 LED Dimming Signal (without AXE)
0.35 D-GN 5060 Low Speed GMLAN Serial Data (AXE) 0.35 D-GN 5060 Low Speed GMLAN Serial Data (AXE)
37 0.35 PU 171 Power Window Master Switch Right Rear Down Signal (without AXE) 37 0.35 PU 171 Power Window Master Switch Right Rear Down Signal (without AXE)
38 0.35 YE 43 Ignition Voltage (without AXE) 38 0.35 YE 43 Ignition Voltage (without AXE)
39 0.35 L-GN 170 Power Window Master Switch Right Rear Up Signal (without AXE) 39 0.35 L-GN 170 Power Window Master Switch Right Rear Up Signal (without AXE)
40 - - Not Used 40 - - Not Used
