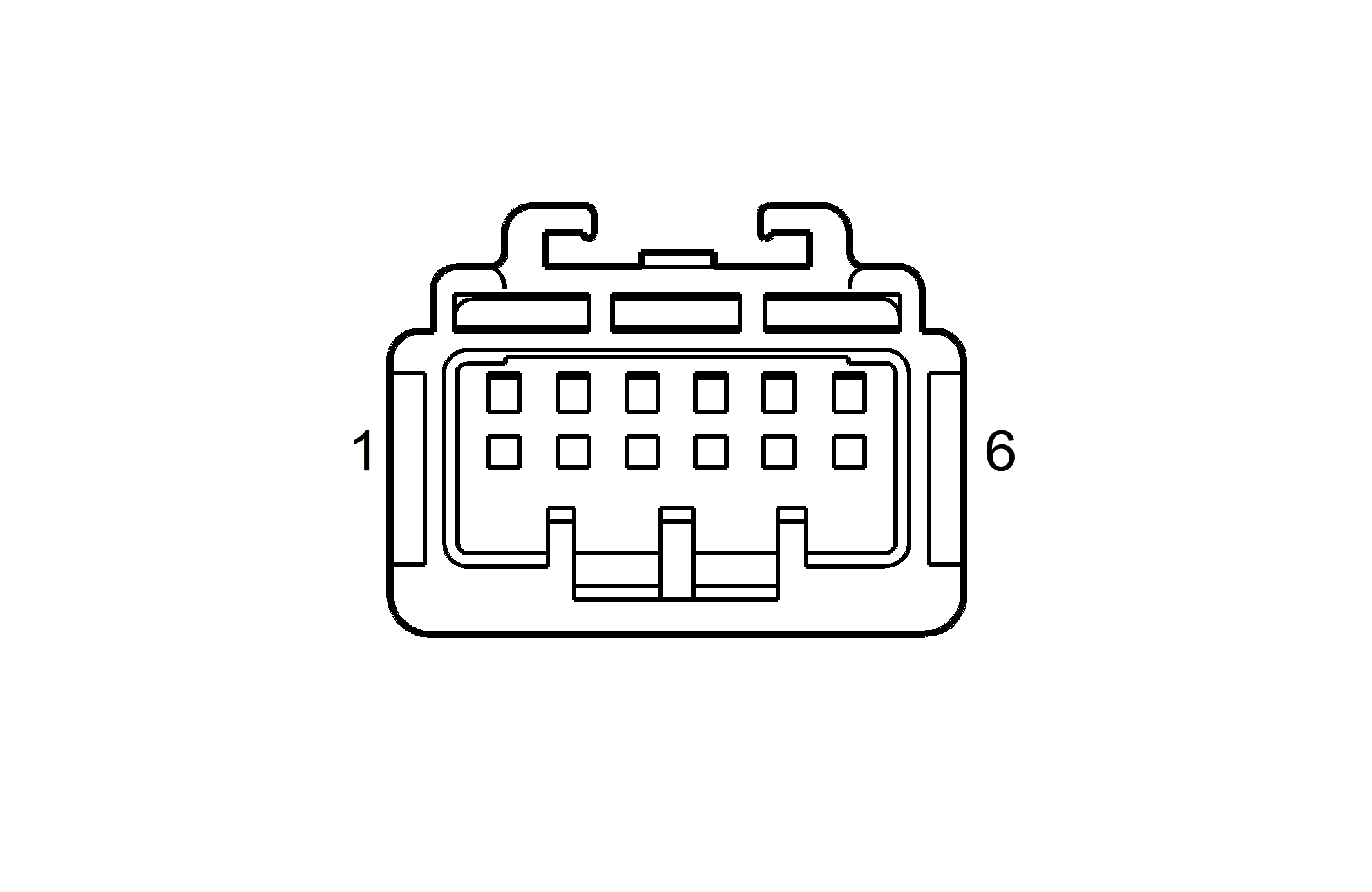

X372 DVD Signal Cable 3B to DVD Signal Cable 1B (SPO Accessory)

Connector Part Information Harness Type: SPO Accessory Signal Cable 3B OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 6-Way F (BK) with (BK) case	Connector Part Information Harness Type: SPO Accessory Signal Cable 1B OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 6-Way M (BK) with (BK) case
Terminal Part Information Terminal/Tray: Service by Harness - See Part Catalog Core/Insulation Crimp: Not Available Release Tool/Test Probe: Not Available	Terminal Part Information Terminal/Tray: Service by Harness - See Part Catalog Core/Insulation Crimp: Not Available Release Tool/Test Probe: Not Available

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	RD	-	I2C Data	1	RD	-	I2C Data
2	BK	-	I2C Clock Signal	2	BK	-	I2C Clock Signal
3	WH	-	Left Audio Signal (+)	3	WH	-	Left Audio Signal (+)
4	RD	-	Right Audio Signal (+)	4	RD	-	Right Audio Signal (+)
5	YE	-	DVD Video Signal (+)	5	YE	-	DVD Video Signal (+)
6	BK	-	DVD Video (-)	6	BK	-	DVD Video (-)
