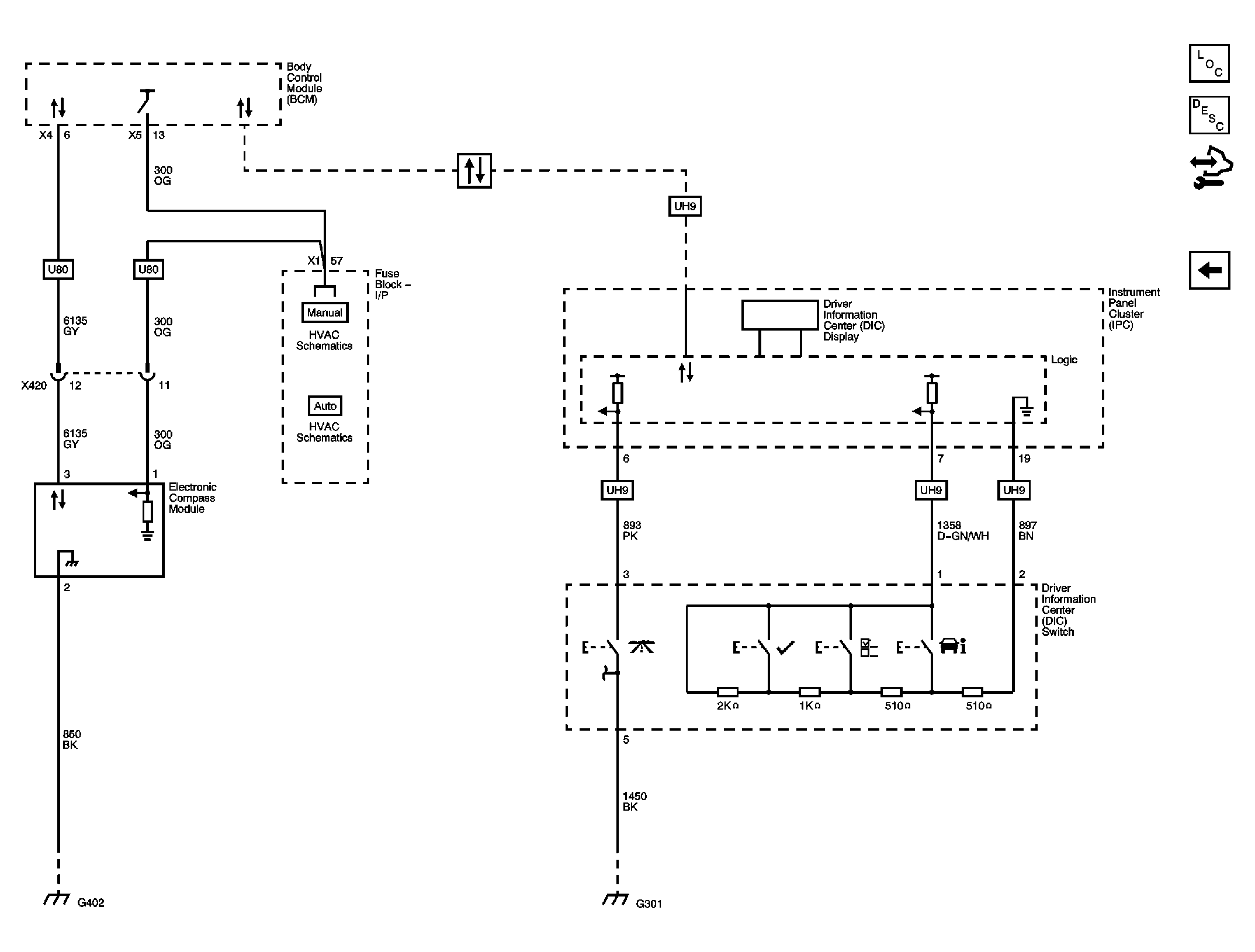

Home >> Chevrolet >> 2011 >> Traverse LTZ, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Wiring Schematics >> Instrument Cluster Wiring Schematics >> UH9 and U80
