Power, Ground, and Gauges

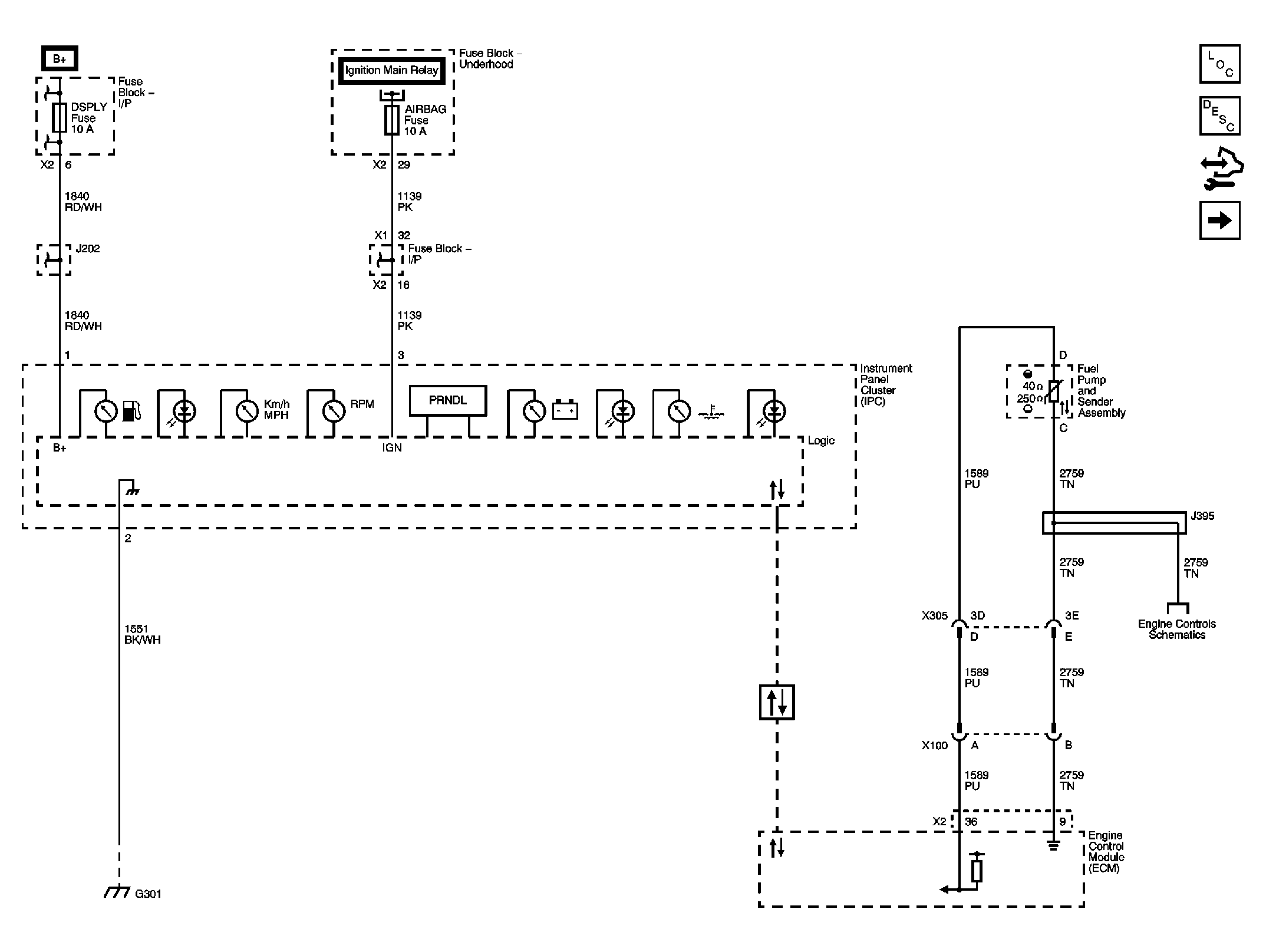

Fig 1: Power, Ground, and Gauges Wiring Schematic

GM2381762

Courtesy of GENERAL MOTORS CORP.
