Home >> Chevrolet >> 2011 >> Traverse LTZ, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Wiring Schematics >> Instrument Cluster Wiring Schematics >> Indicators and Lighting

Indicators and Lighting

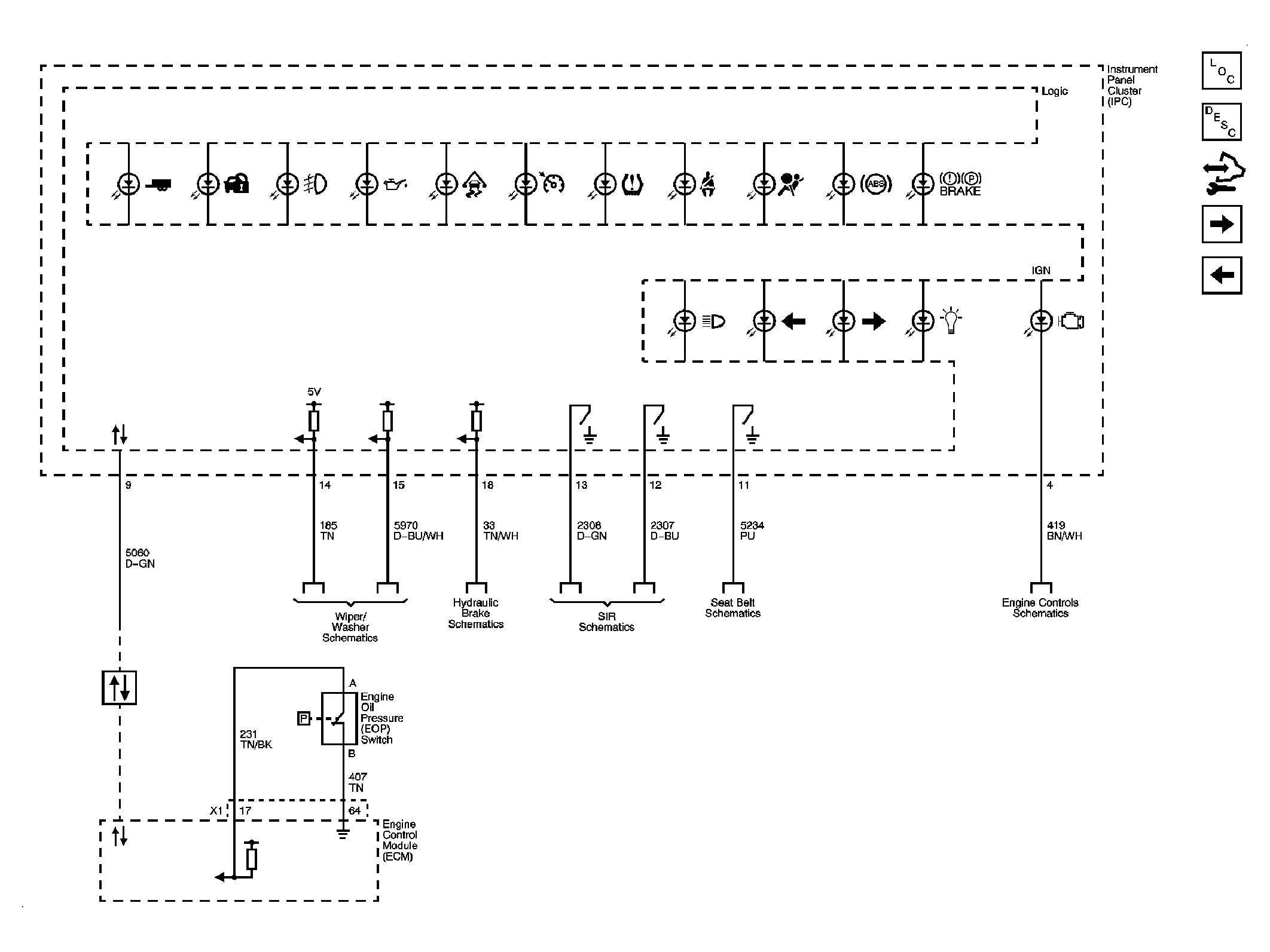

Fig 1: Indicators and Lighting Wiring Schematic

GM2381764

Courtesy of GENERAL MOTORS CORP.
