Instrument Panel System Displays And Gauges
>>
Wiring Schematics
>>
Audible Warnings Schematics
>>
Audible Warnings
Audible Warnings

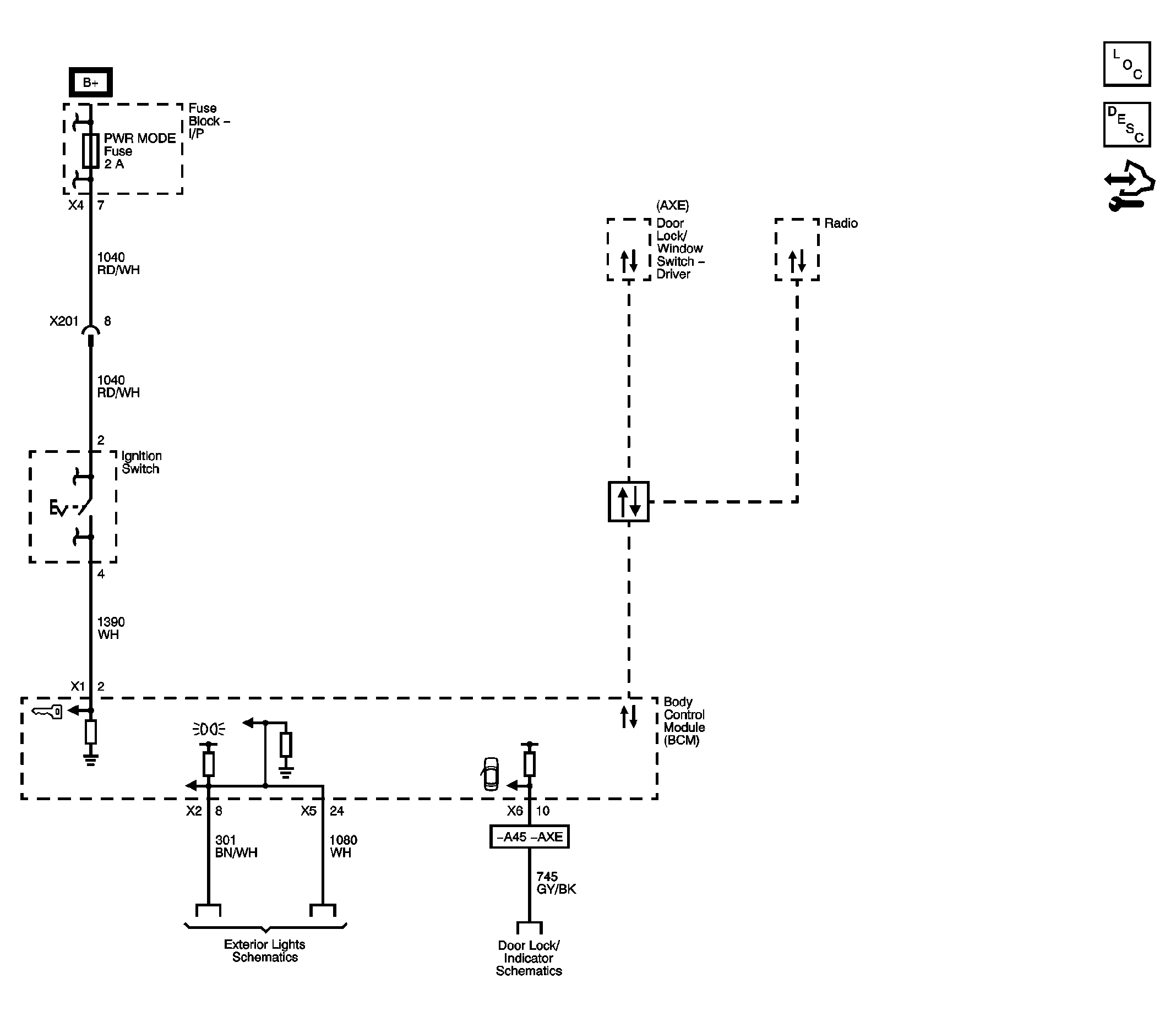

Fig 1: Audible Warnings Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
