Connector Views




Component Connector End Views

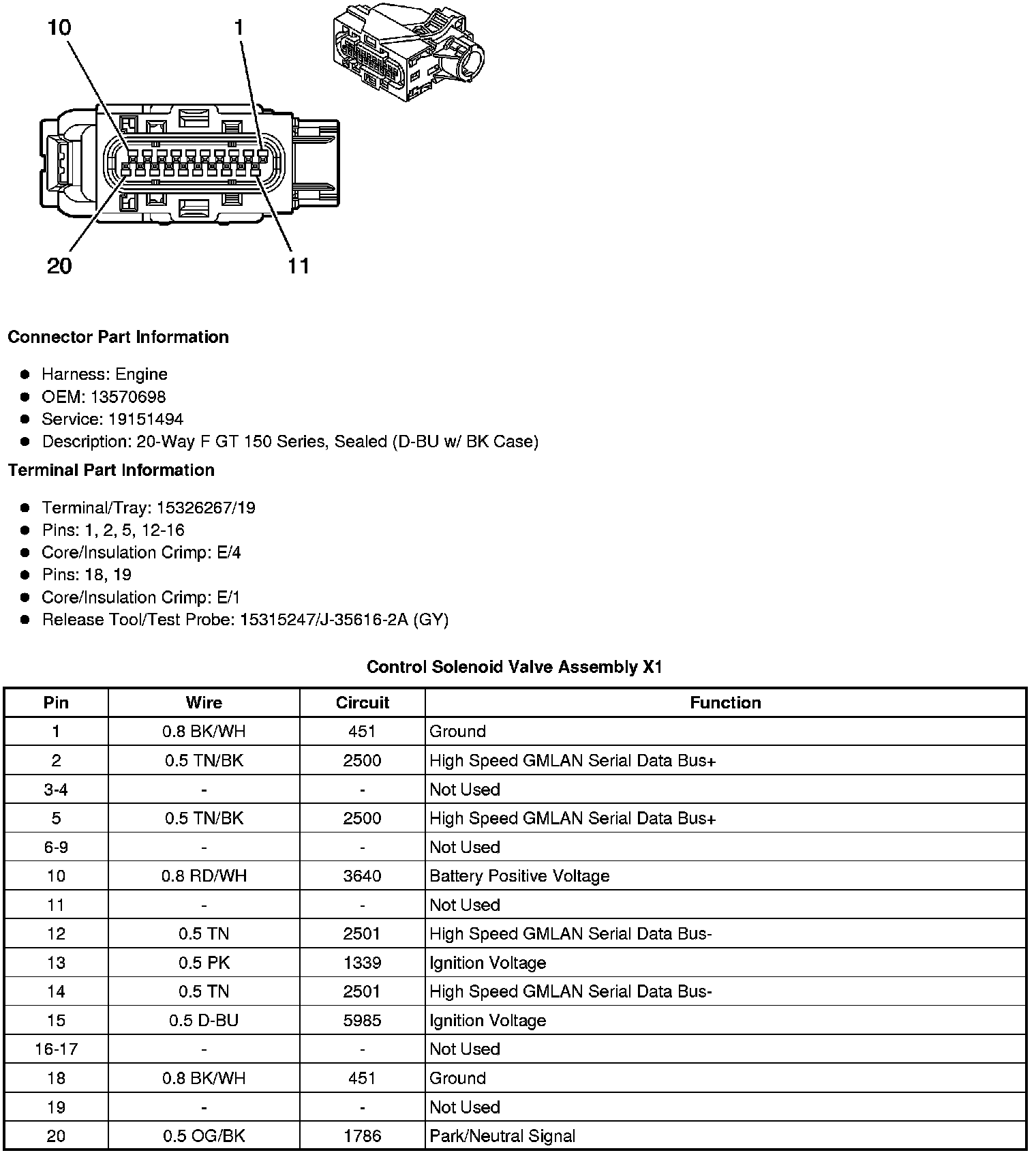

Control Solenoid Valve Assembly X1

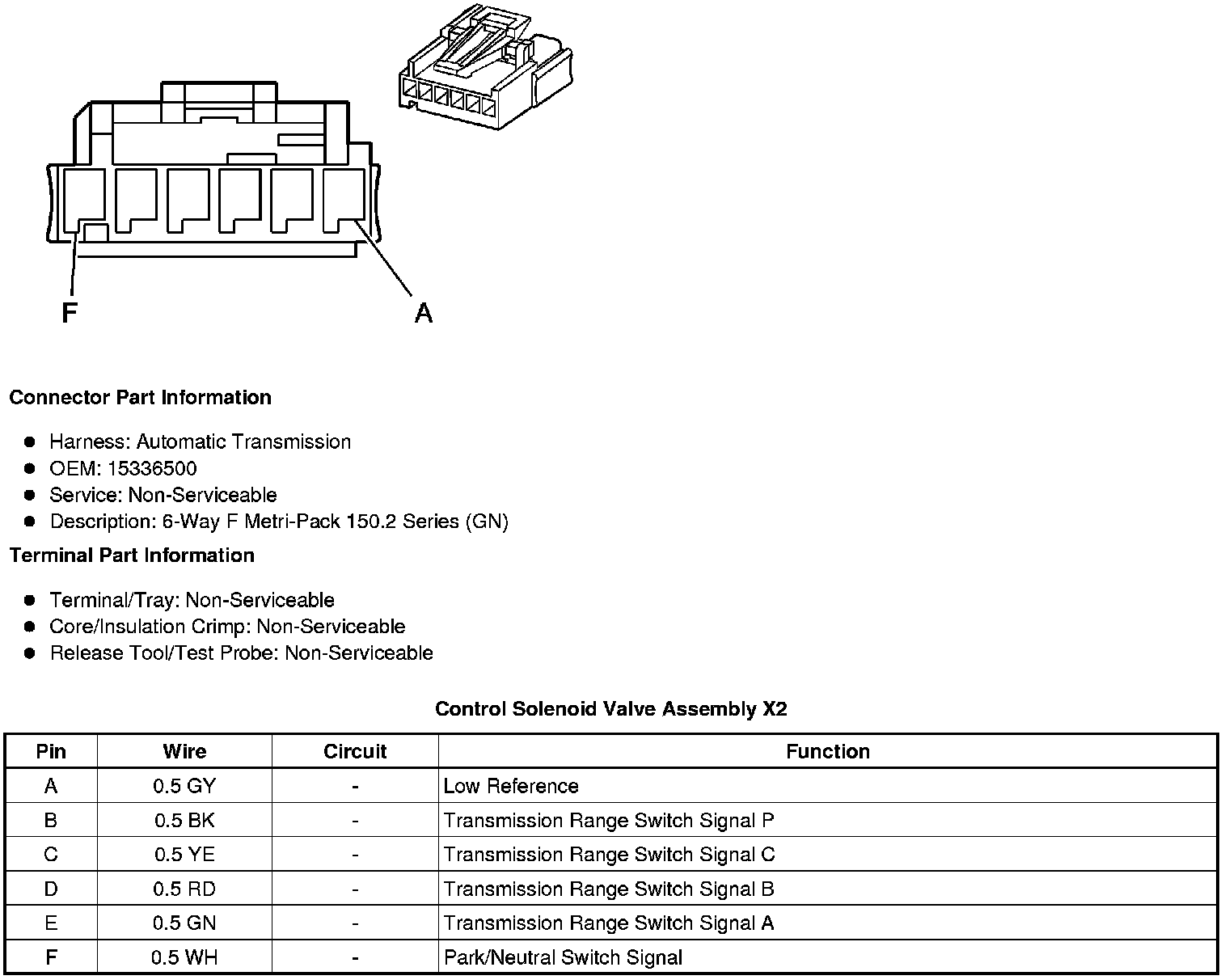

Control Solenoid Valve Assembly X2





Control Solenoid Valve Assembly X3





Control Solenoid Valve Assembly X4
