Leak Inspection Points
WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

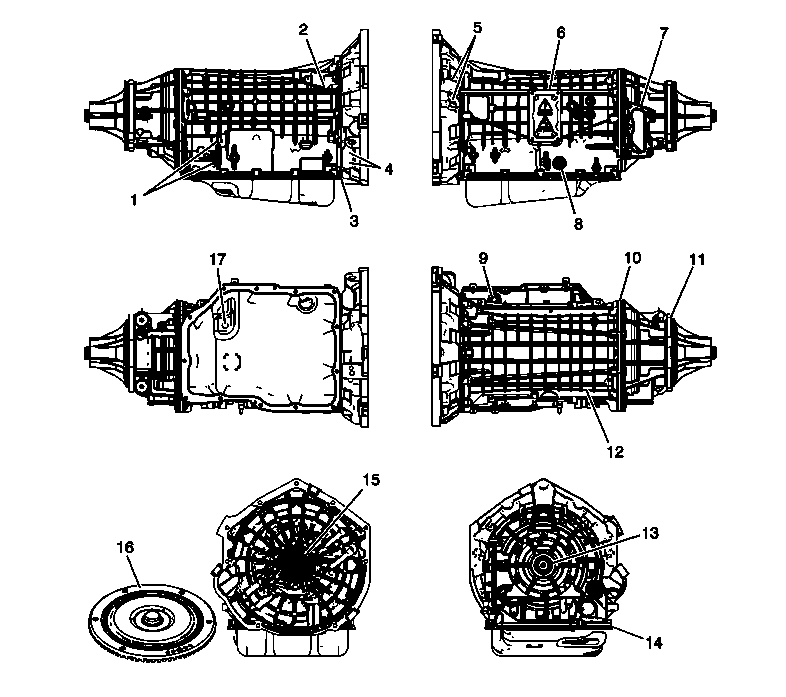

| Callout | Component Name |
|---|---|
| 1 | 24-Way Connector Assembly or A/Trans Electrical Connector Passage Sleeve |
| 2 | A/Trans Vent Pipe |
| 3 | A/Trans Torque Dampener Housing Gasket |
| 4 | A/Trans Fluid Cooler Pipe Fitting Seal |
| 5 | Line Pressure Test Hole Plug or Auxiliary Pump Pressure Test Hole Plug |
| 6 | Drive Motor/Generator Power Inverter Module Cable Housing Cover Seals |
| 7 | Park Pawl Cover Seal |
| 8 | Manual Shift Shaft Seal |
| 9 | Transmission Fluid Fill Tube Seal |
| 10 | A/Trans Rear Case Gasket |
| 11 | Extension Assembly Gasket |
| 12 | A/Trans Case Assembly |
| 13 | Output Seal |
| 14 | A/Trans Fluid Pan Gasket |
| 15 | A/Trans Torque Dampener Seal |
| 16 | A/Trans Torque Dampener Assembly |
| 17 | A/Trans Fluid Pan Drain Plug O-Ring Seal |
