X176 Engine Harness to Transmission Harness (M99)
X176 Engine Harness to Transmission Harness (M99)

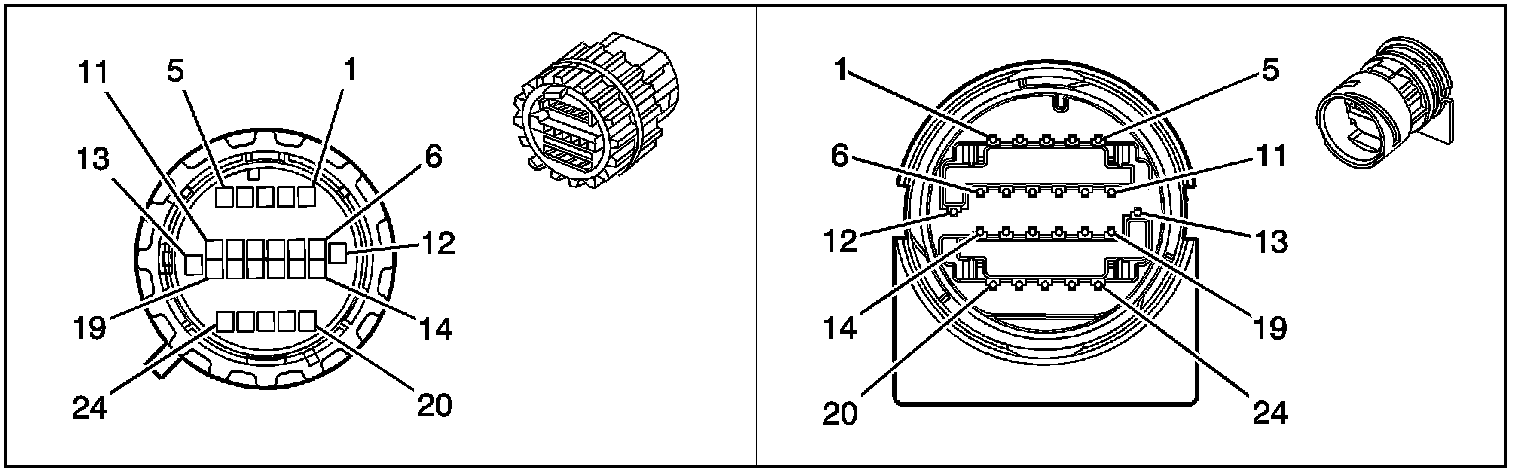

Inline Harness Connector End Views

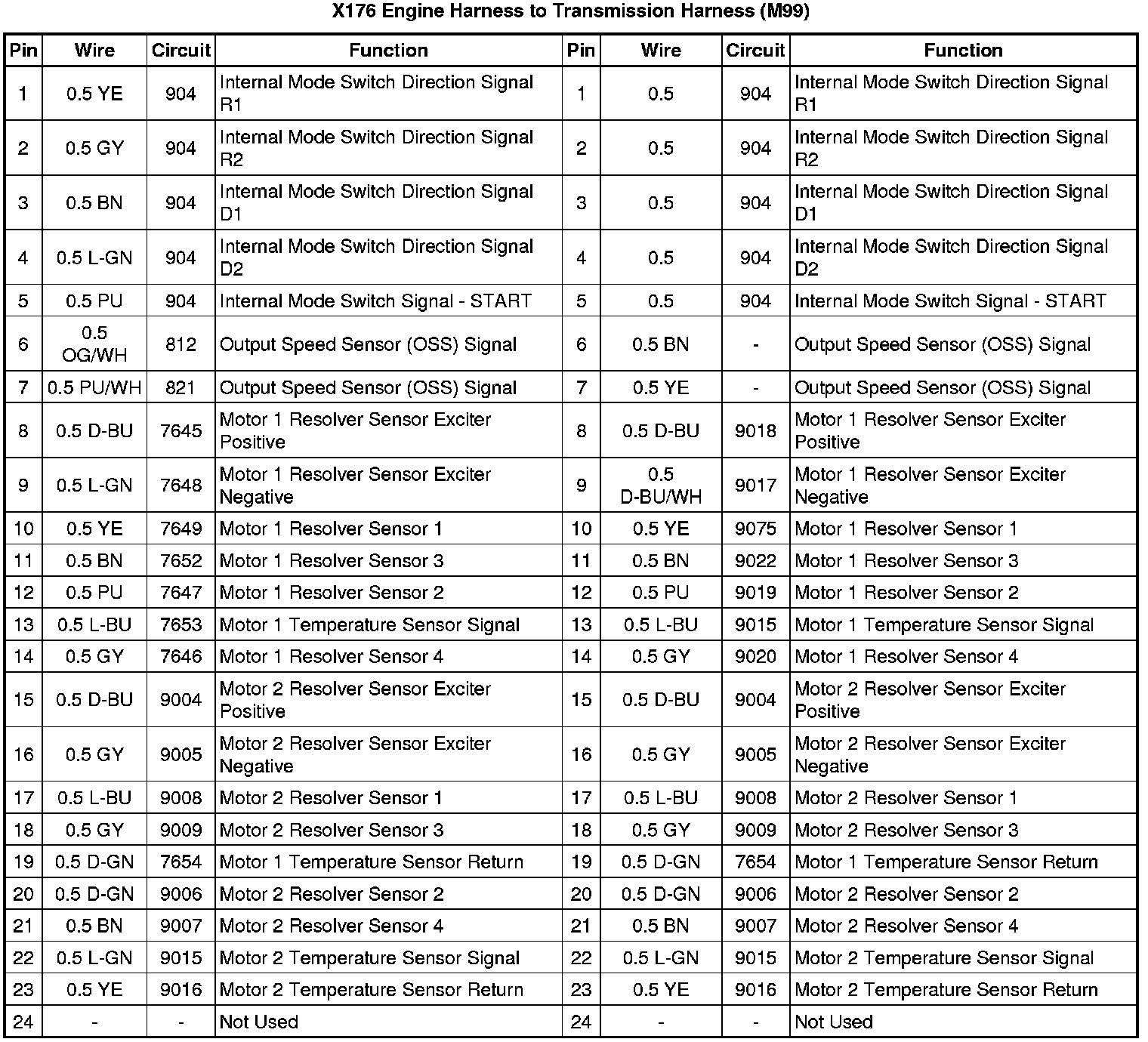

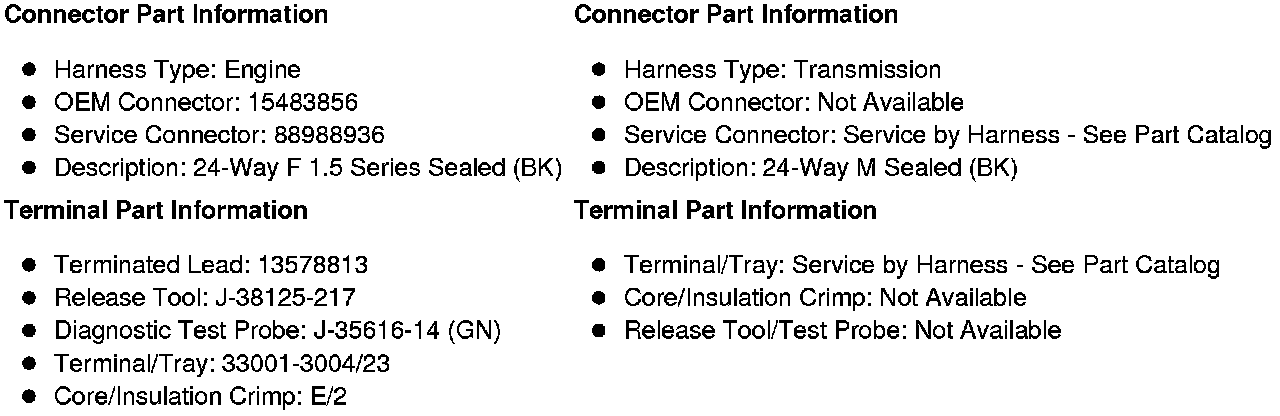

X176 Engine Harness to Transmission Harness (M99)
