X119 Forward Lamp Harness to Export Side Repeater Jumper Harness (EXP)

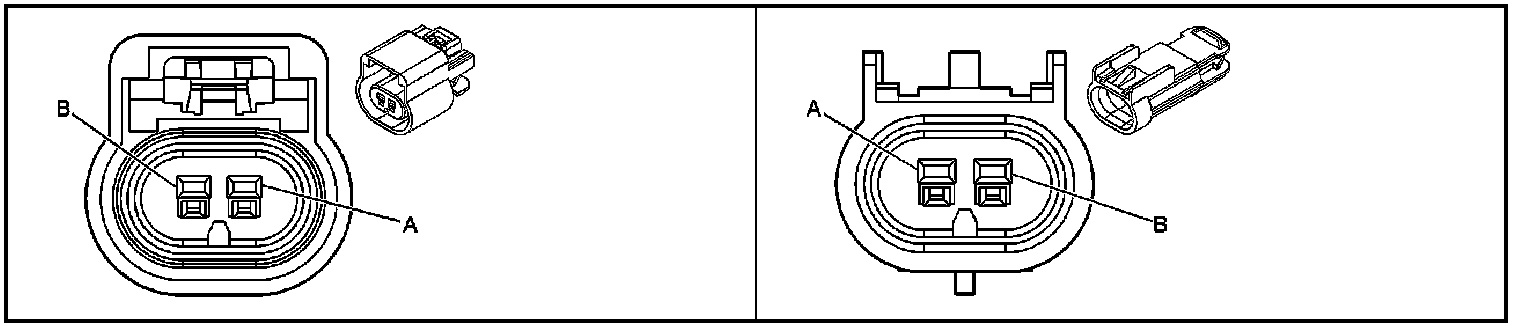

Inline Harness Connector End Views

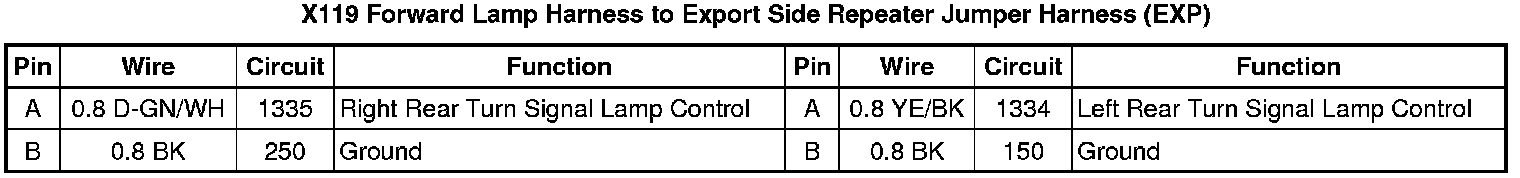

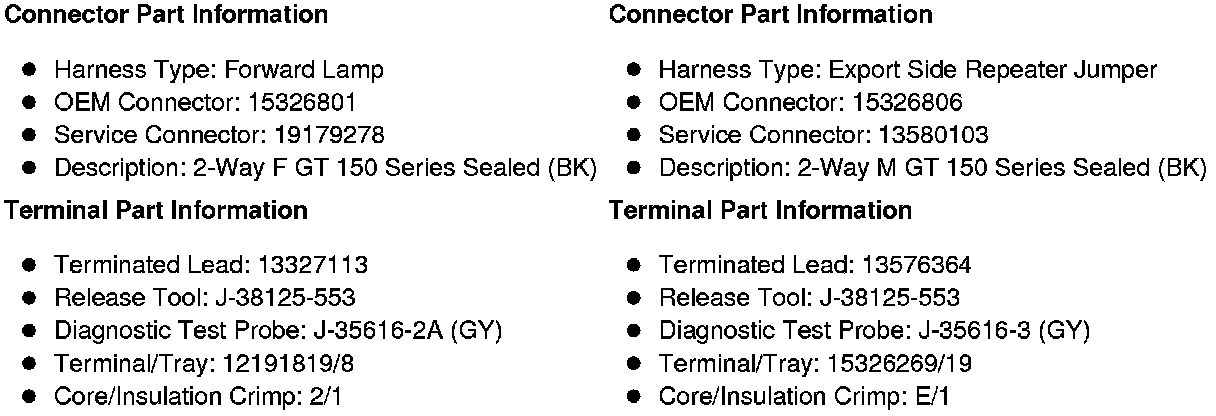

X119 Forward Lamp Harness to Export Side Repeater Jumper Harness (EXP)
