X115 Chassis Harness to Instrument Panel Harness

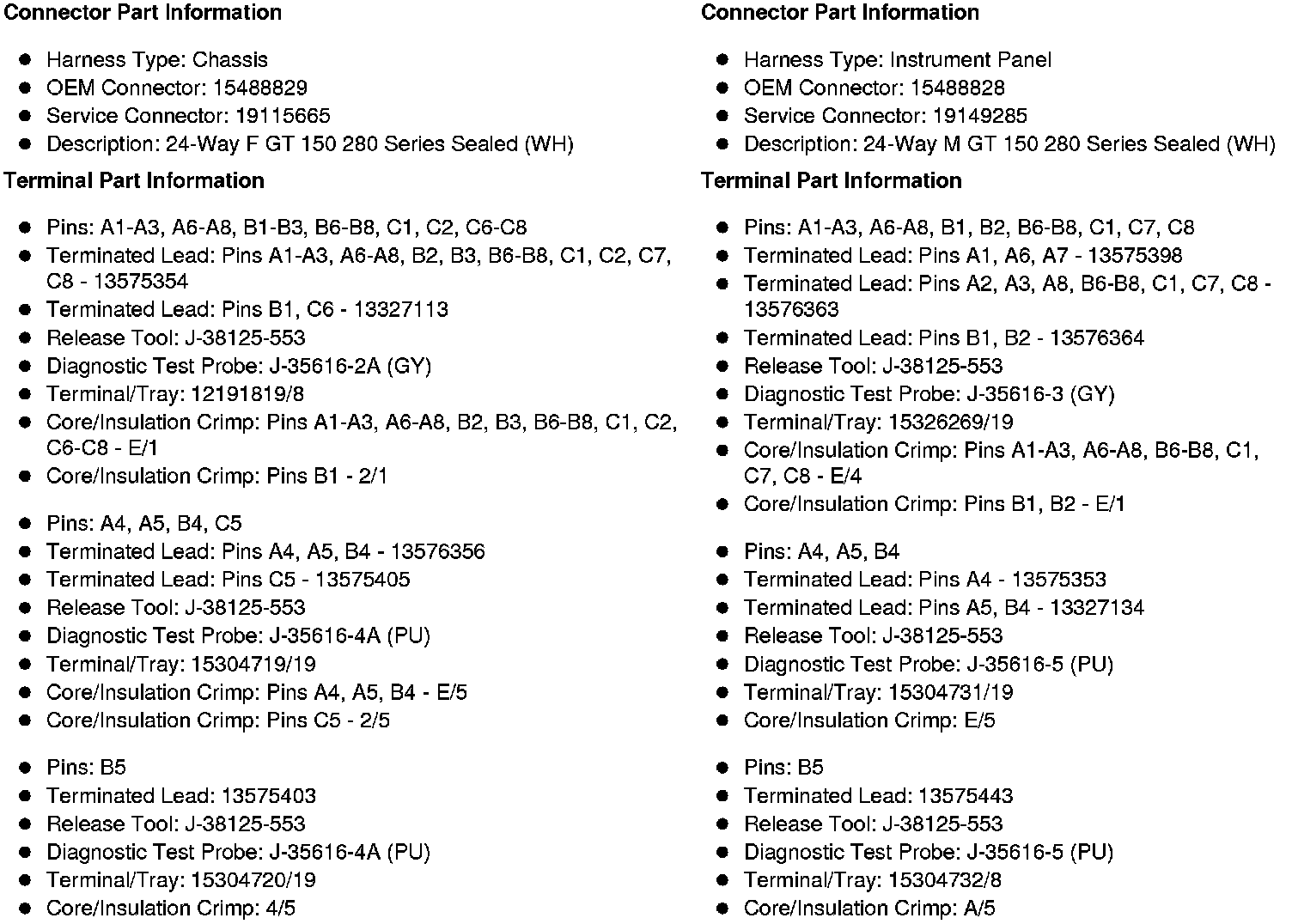

X115 Chassis Harness to Instrument Panel Harness

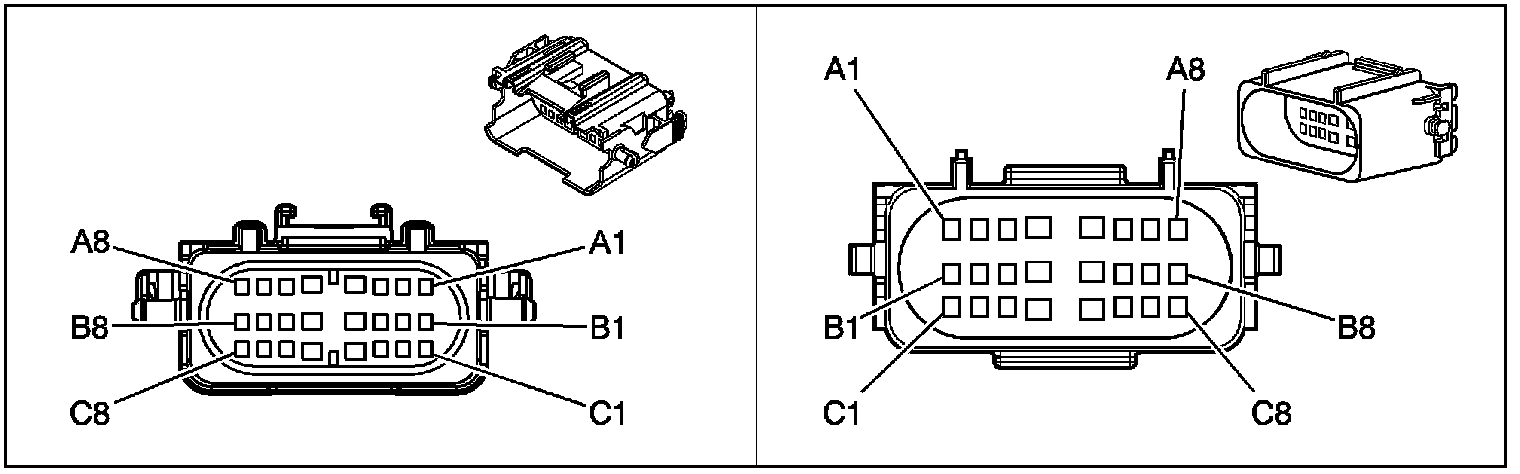

Inline Harness Connector End Views

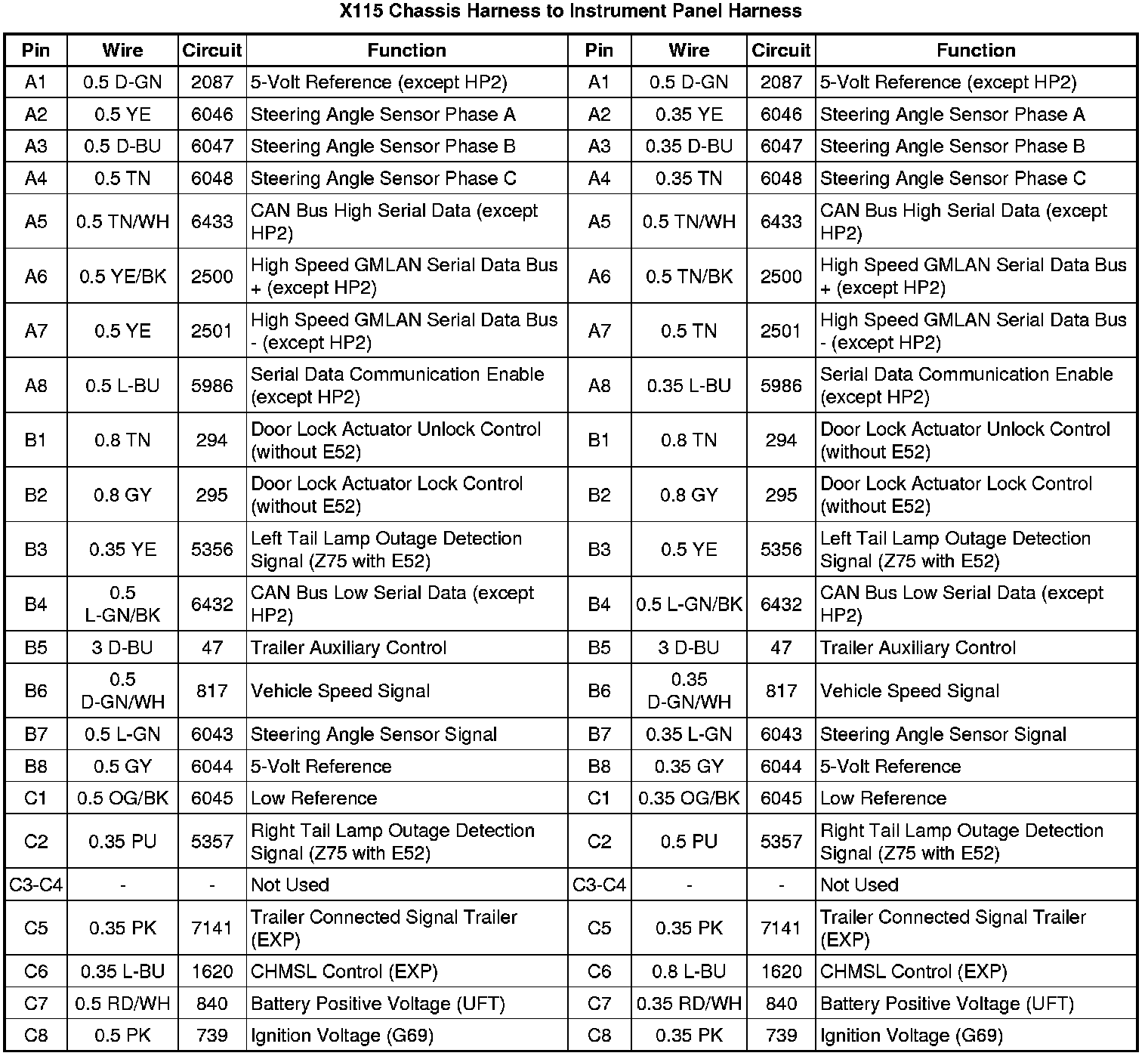

X115 Chassis Harness to Instrument Panel Harness
