Assist Step Replacement (Chevrolet HP2)


Assist Step Replacement (Chevrolet HP2)

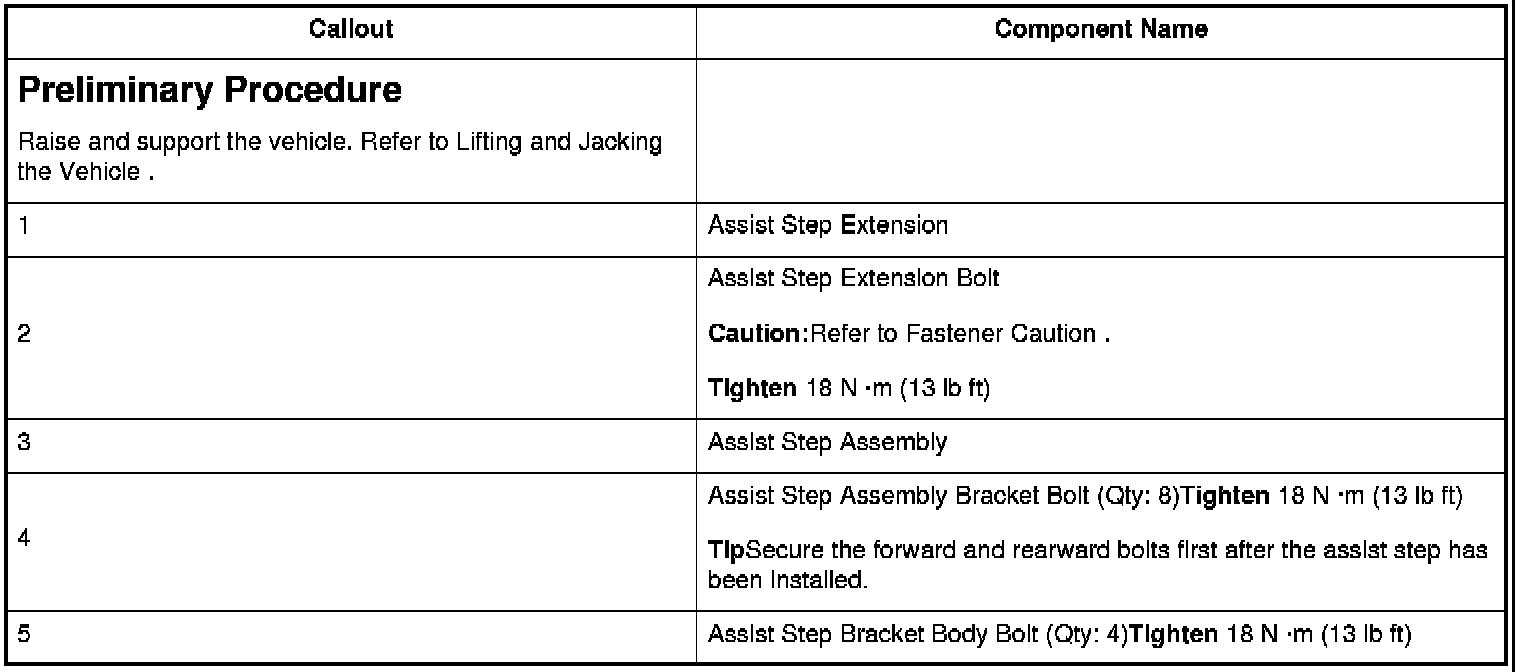

Preliminary Procedure

Caution:Refer to Fastener Caution.
TightenTighten
TipSecure the forward and rearward bolts first after the assist step has been installed.
Tighten
