Seat Belt Buckle Switch: Diagrams




Component Connector End Views

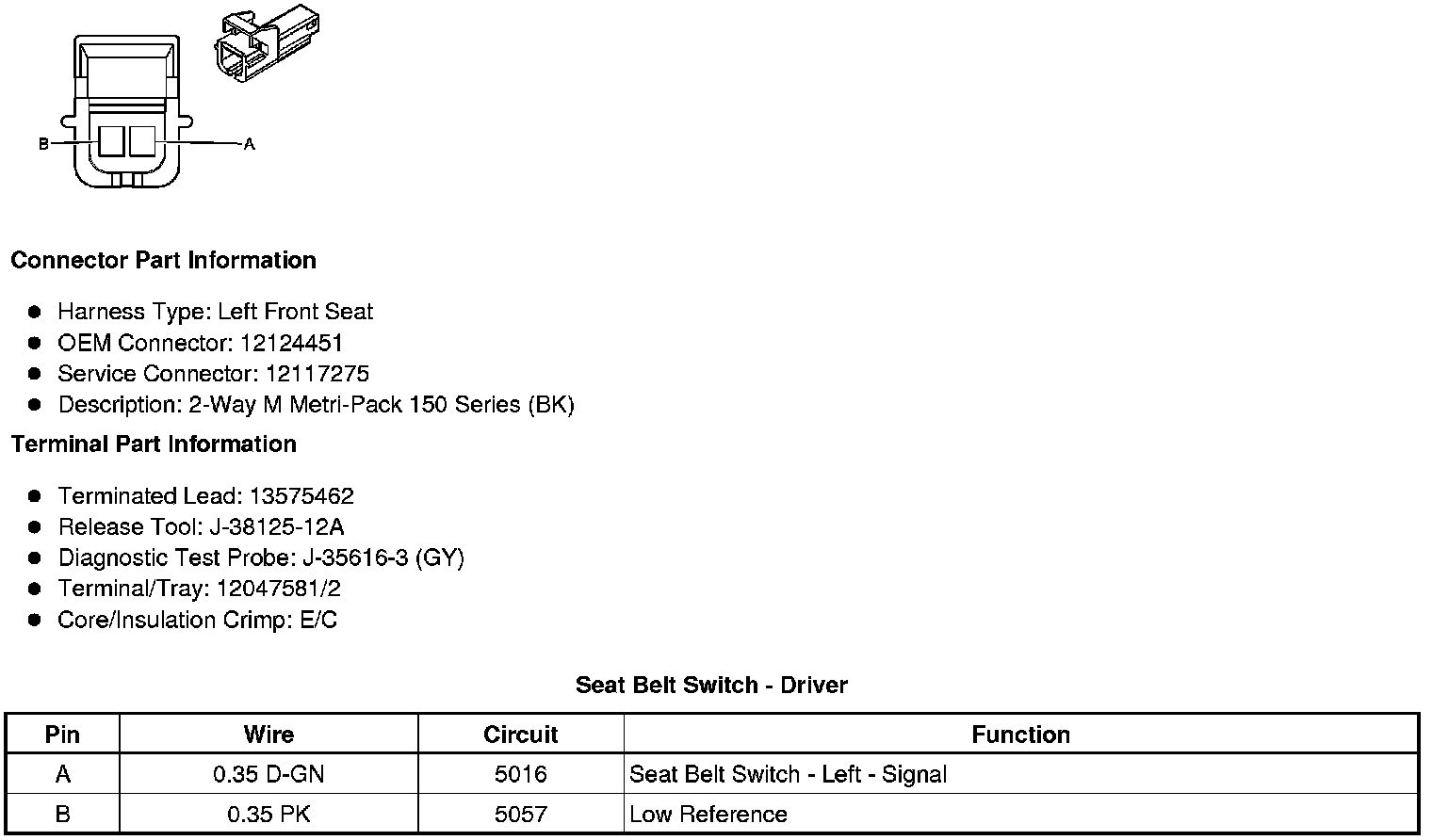

Seat Belt Switch - Driver

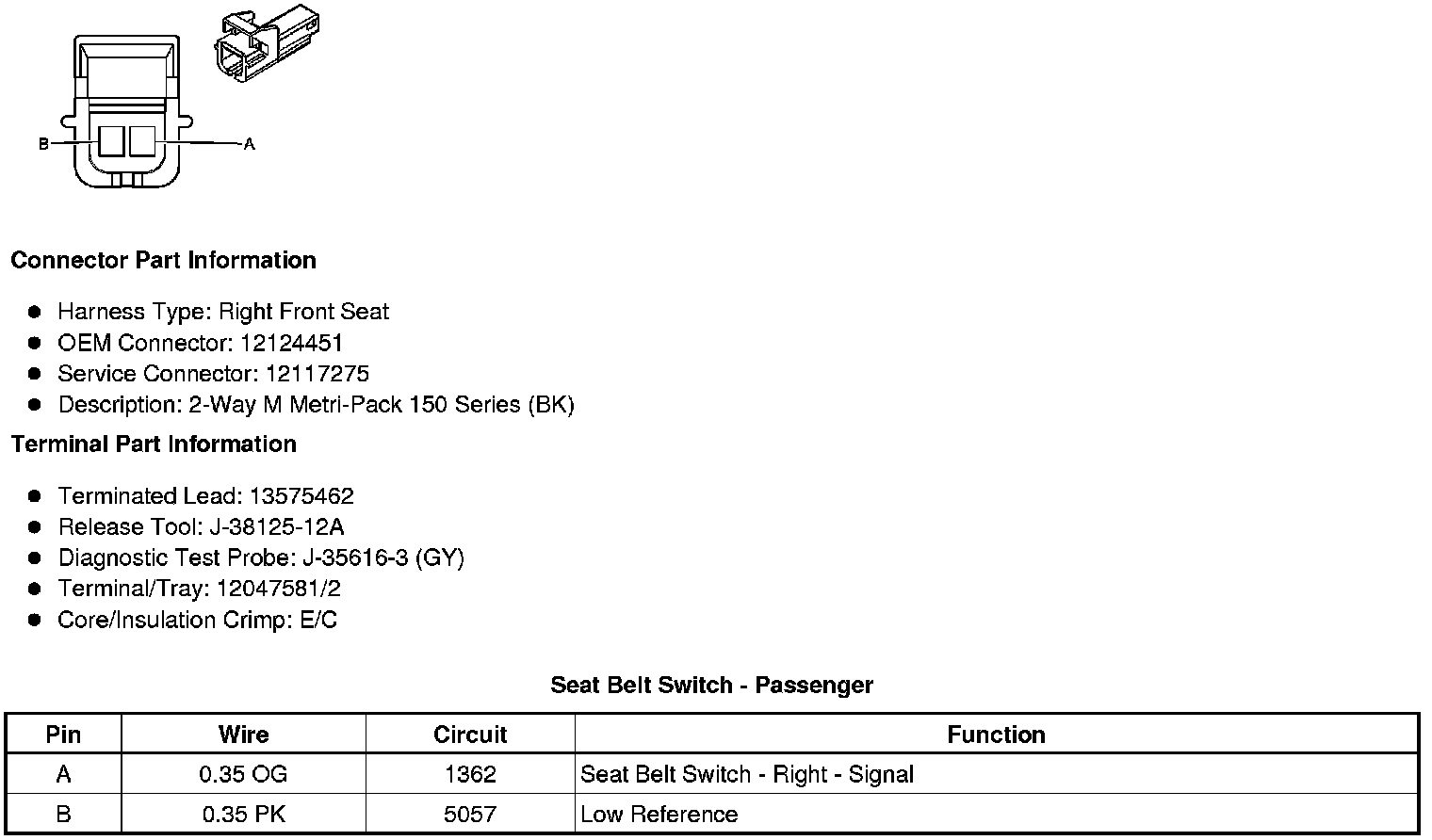

Seat Belt Switch - Passenger
