Steering Mounted Controls Assembly: Locations




Instrument Panel/Center Console Component Views

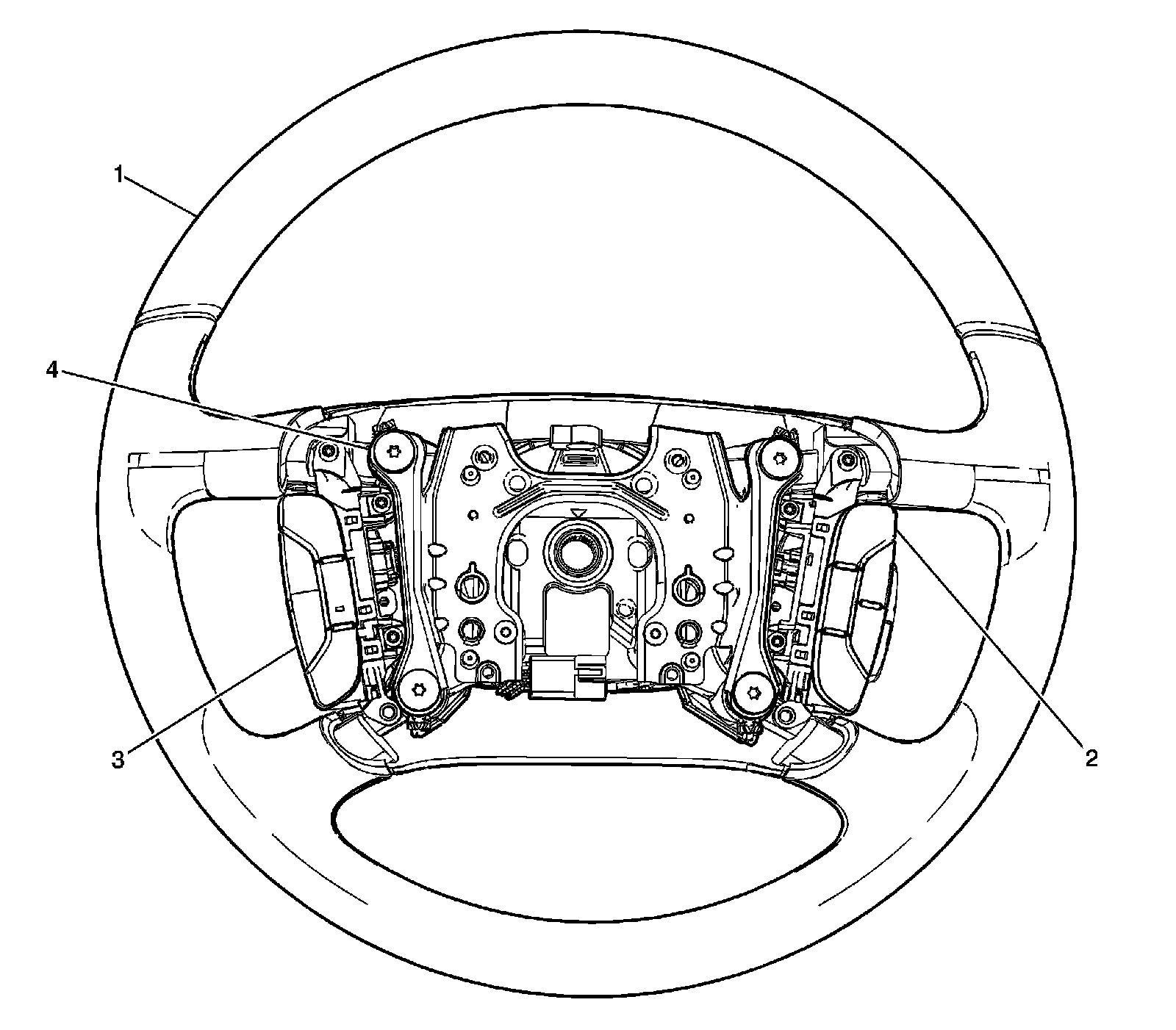

Steering Wheel Components




1 - Steering Wheel
2 - Steering Wheel Control Switch - Right
3 - Steering Wheel Control Switch - Left (UK3)
4 - Horn Switch
