Transmission Mode Switch: Diagrams

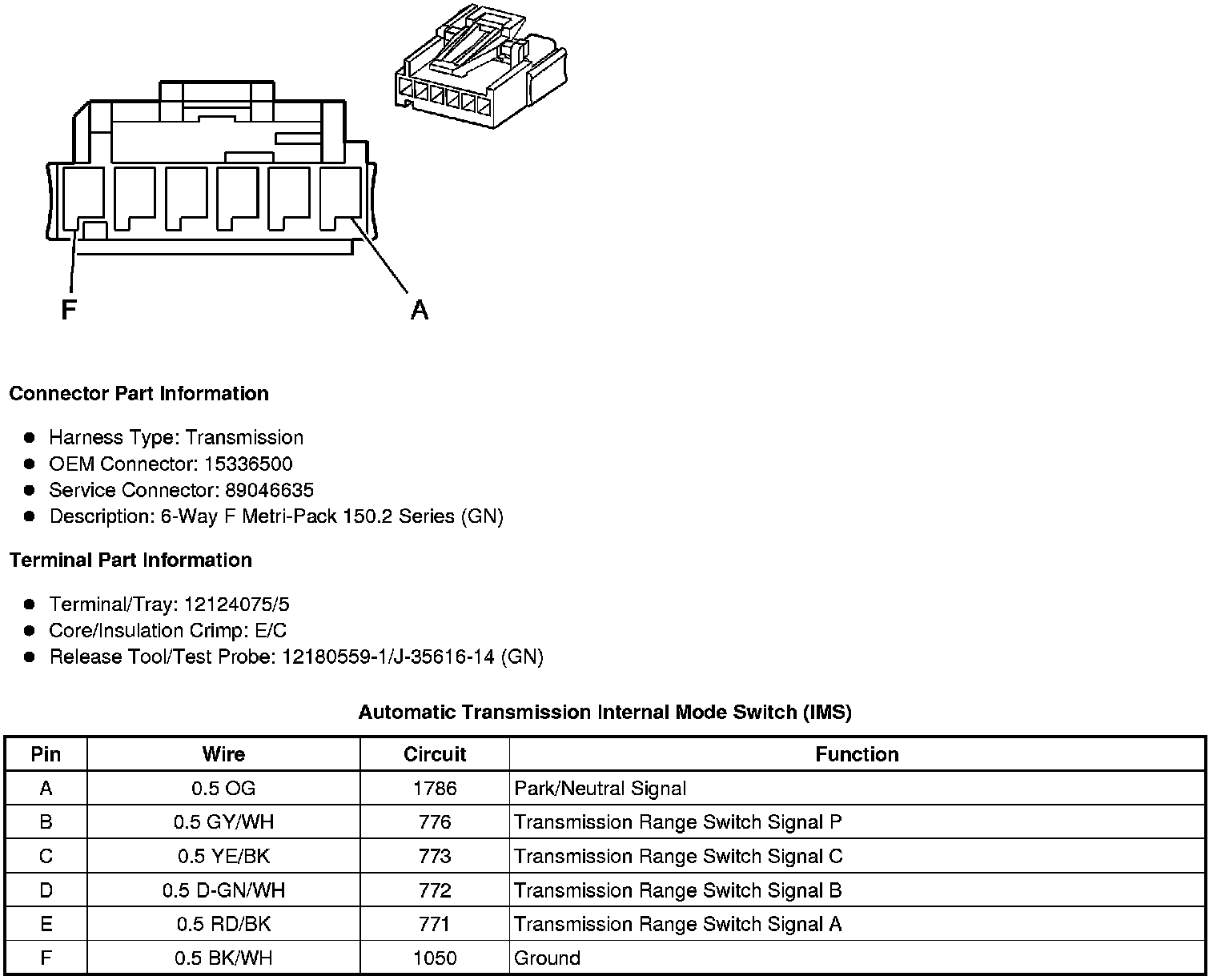

Component Connector End Views

Automatic Transmission Internal Mode Switch (IMS)
