Fuse Block - Underhood




Electrical Center Identification Views

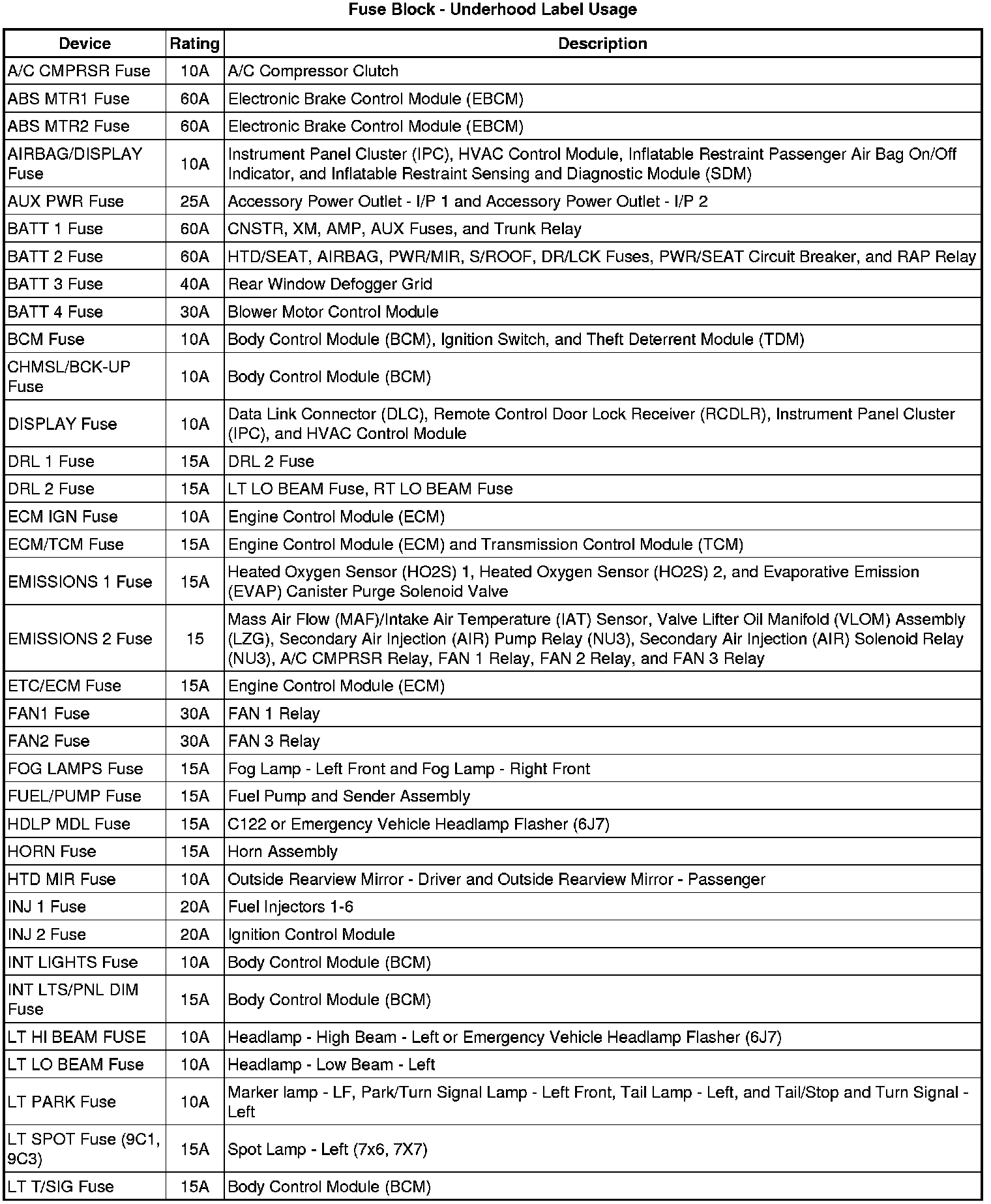

Fuse Block - Underhood Label

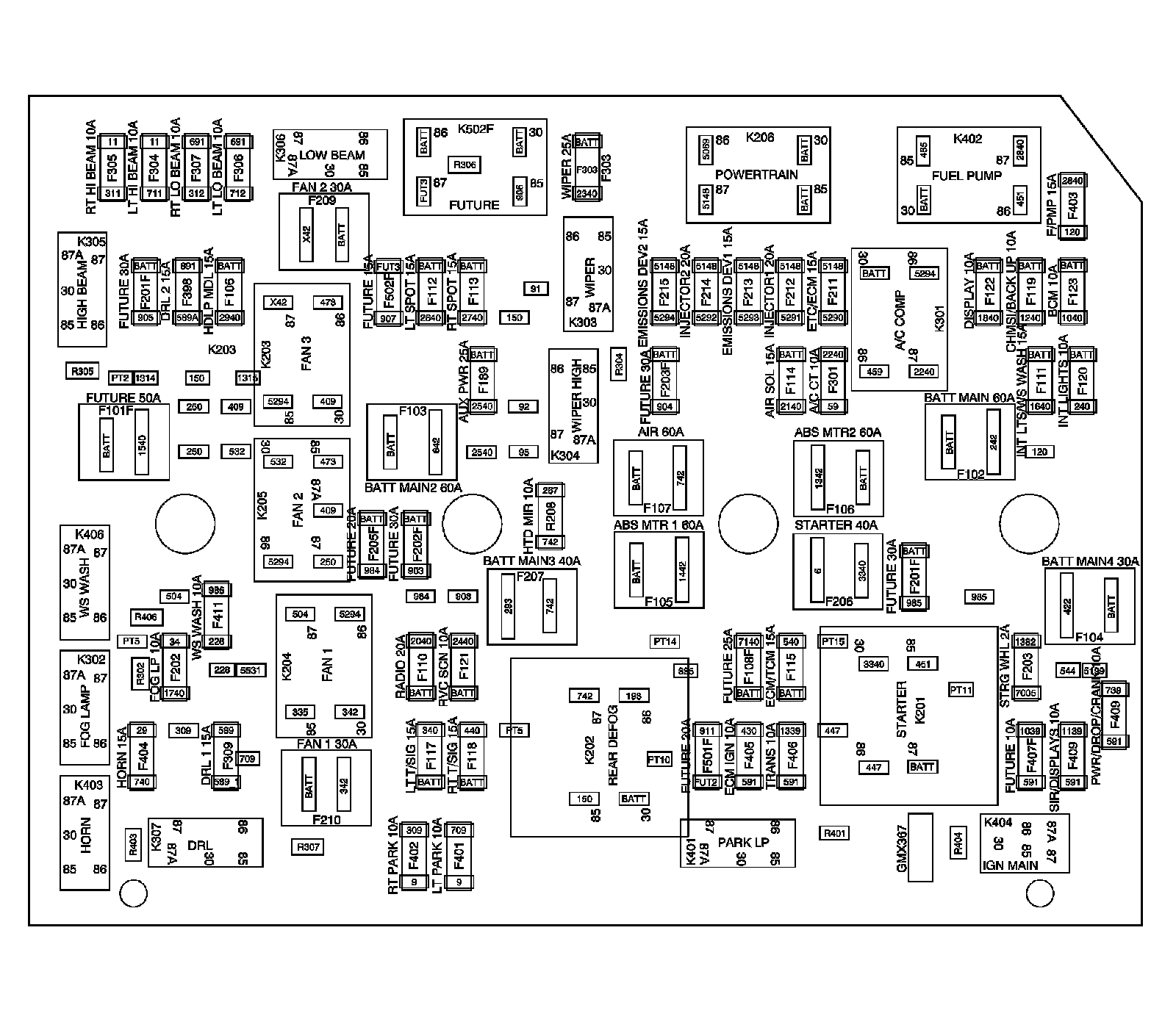

Fuse Block - Underhood - Top View

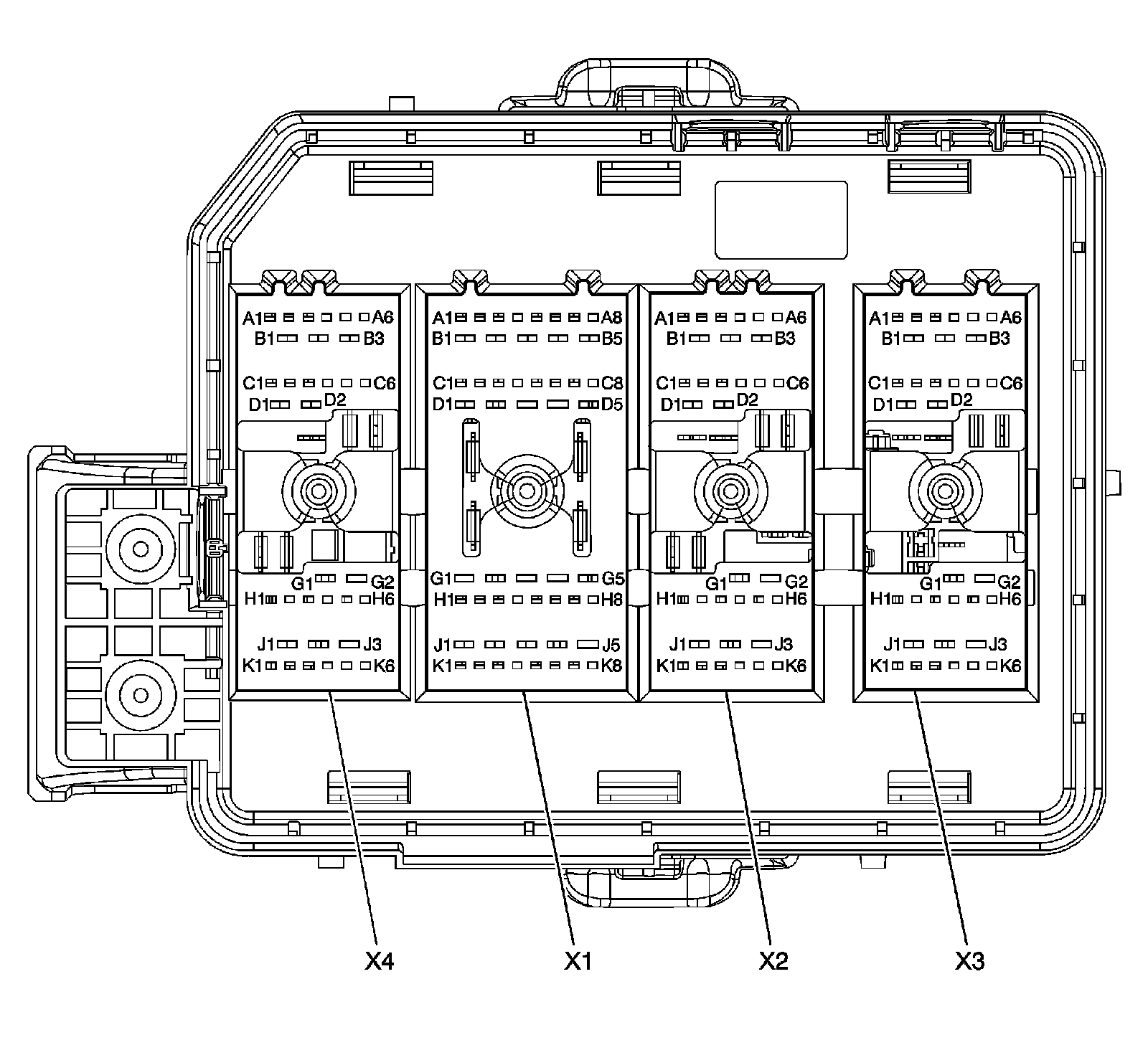

Fuse Block - Underhood - Bottom View

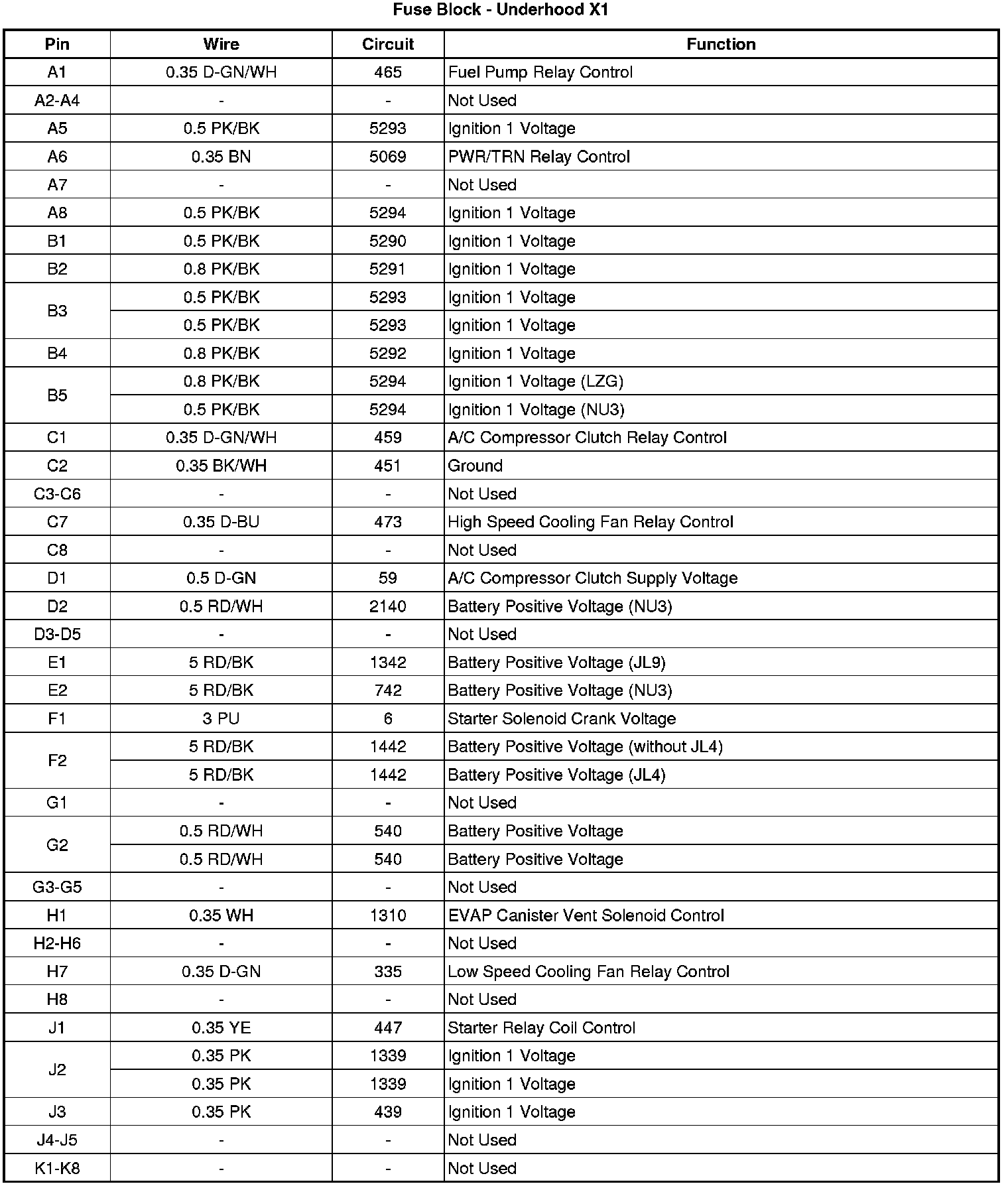

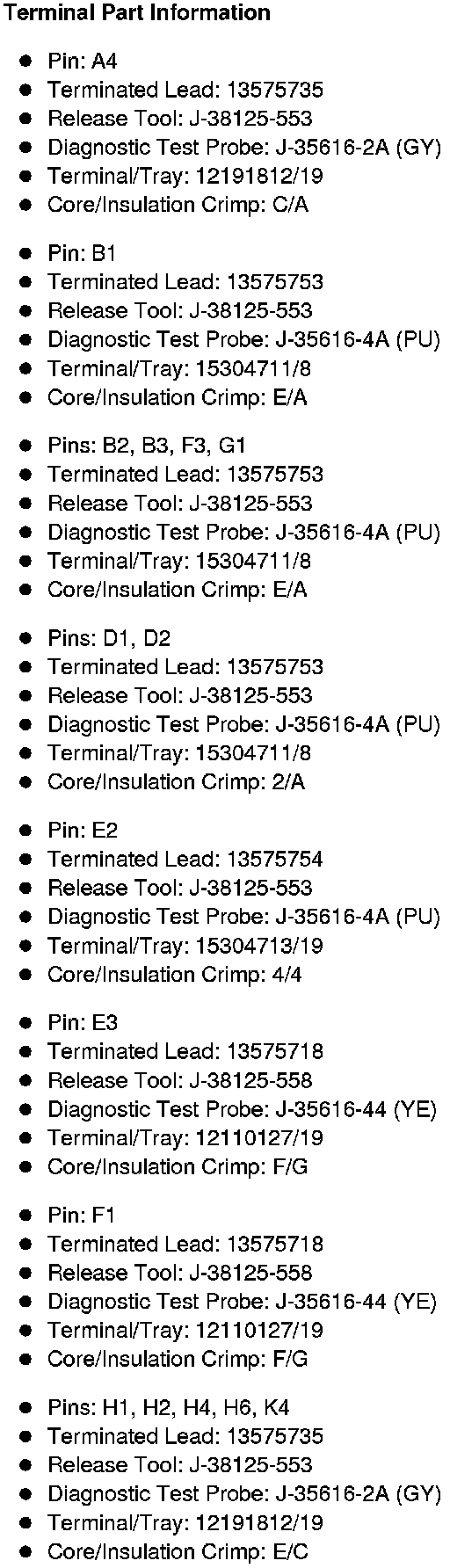

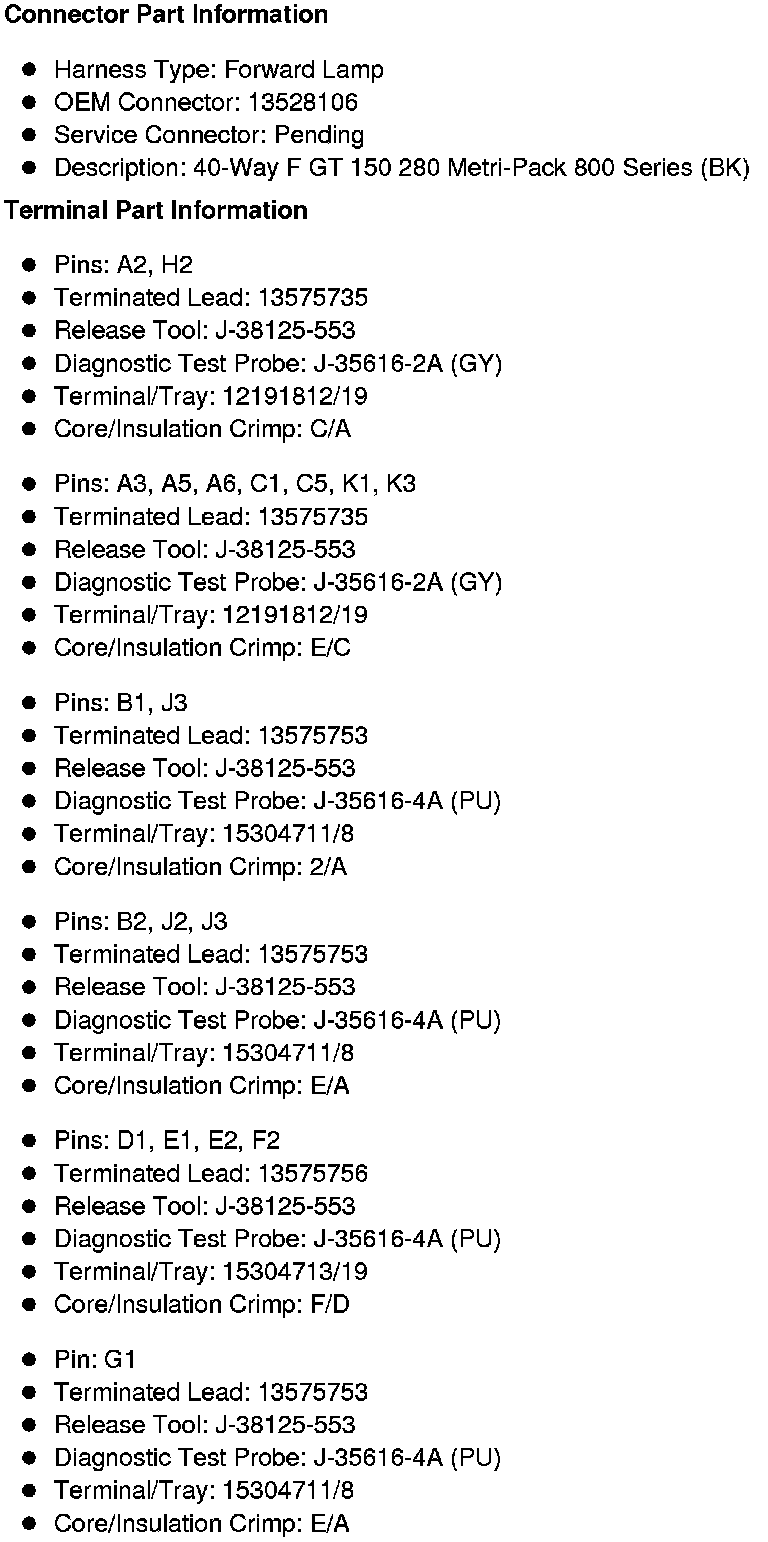

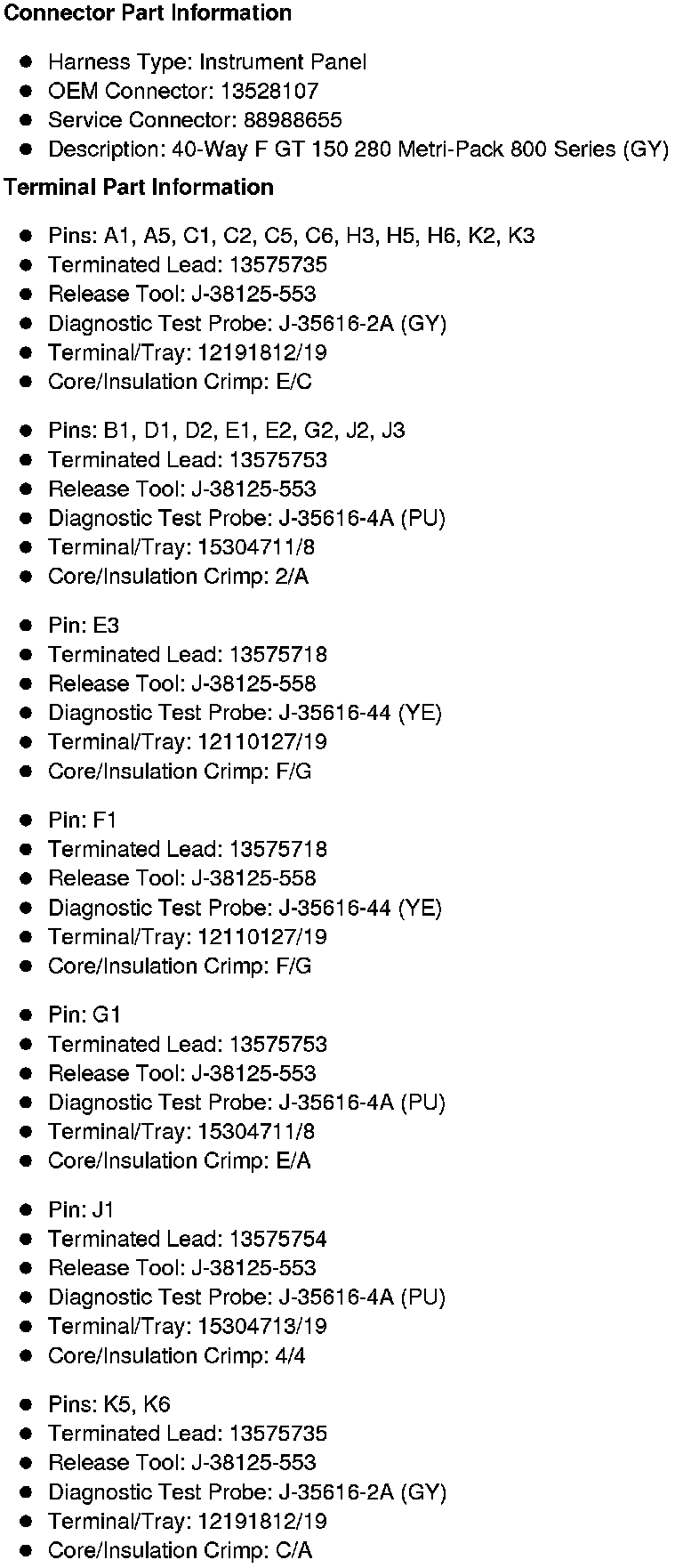

Fuse Block - Underhood X1

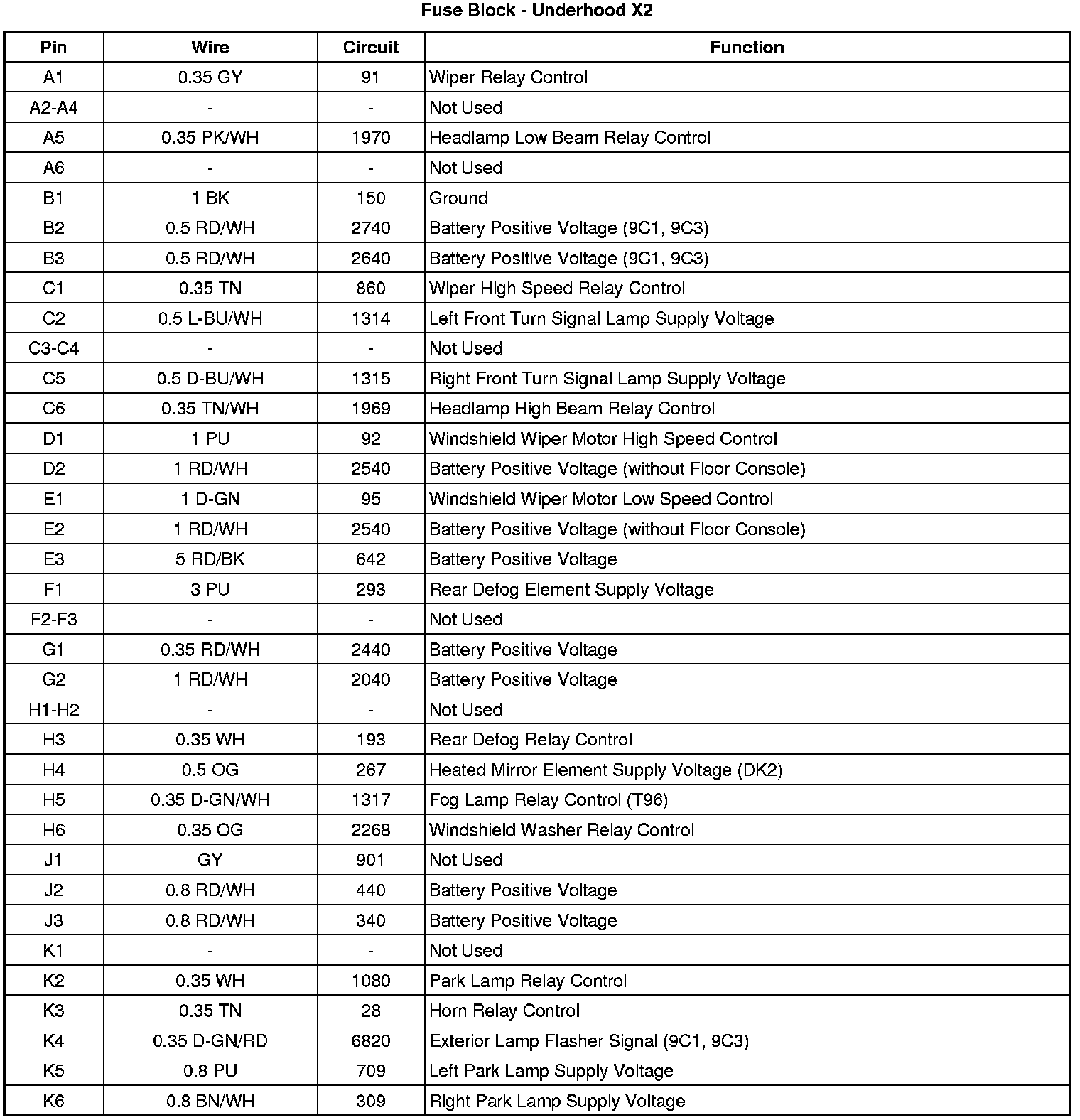

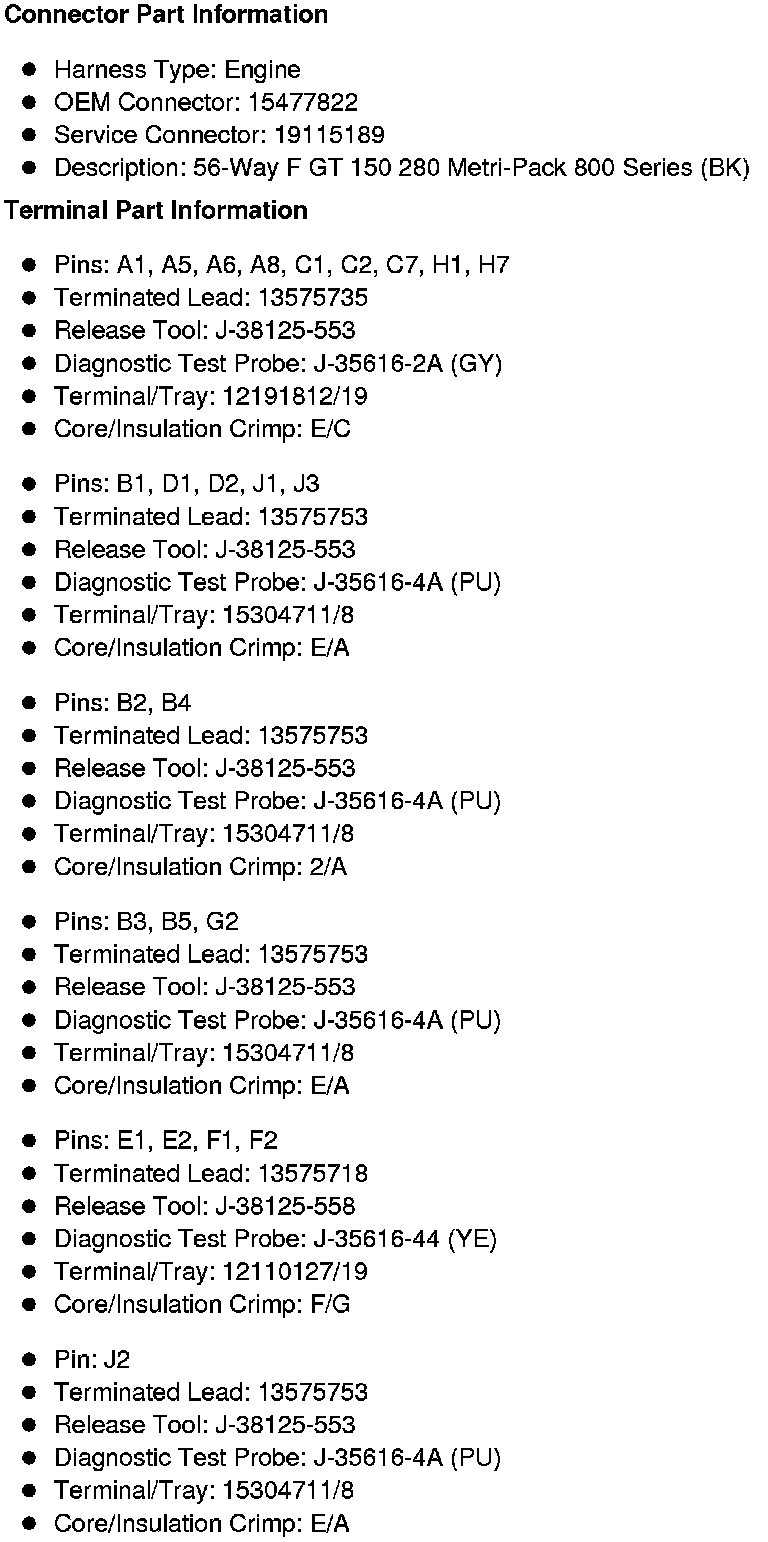

Fuse Block - Underhood X2

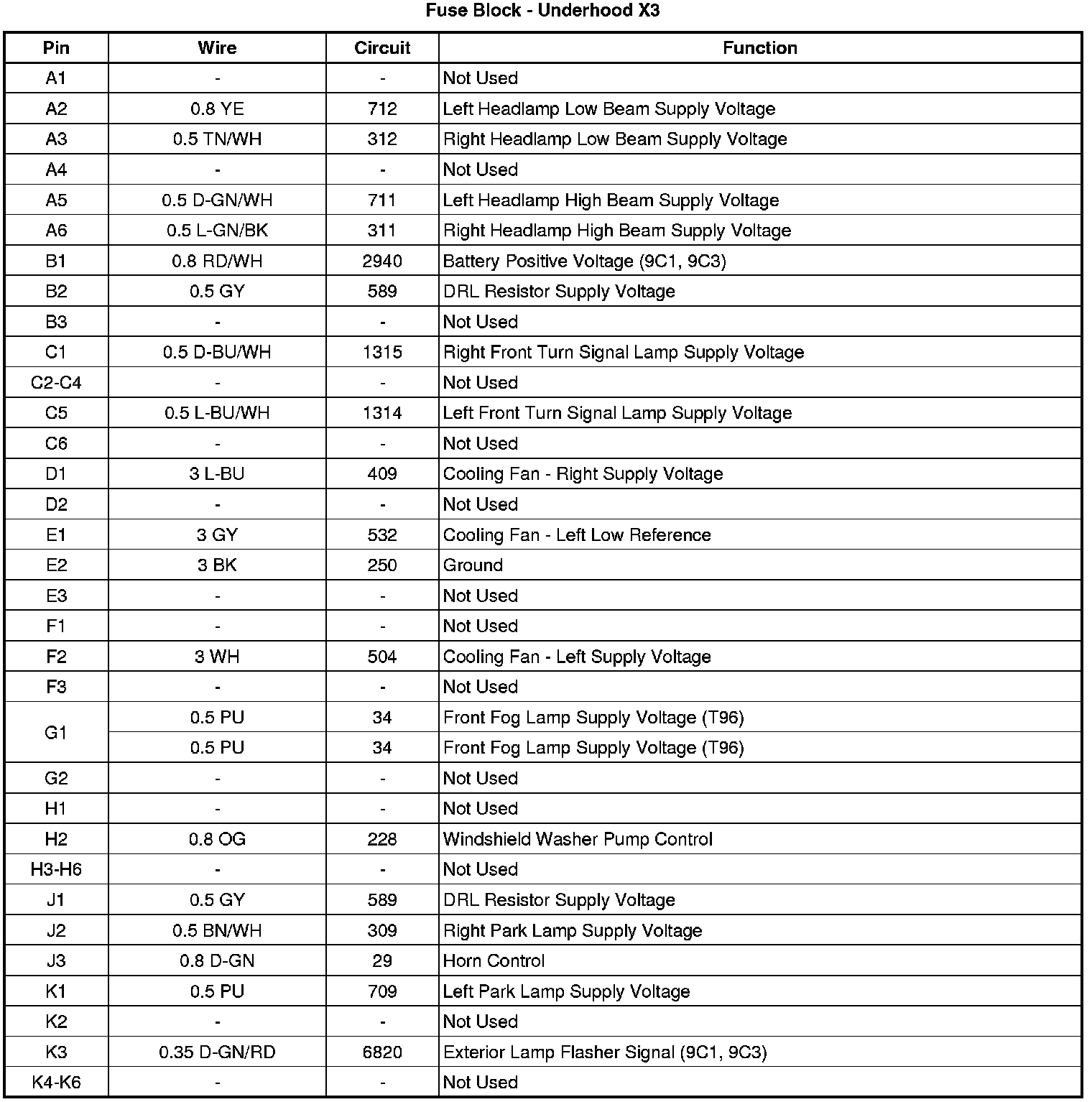

Fuse Block - Underhood X3

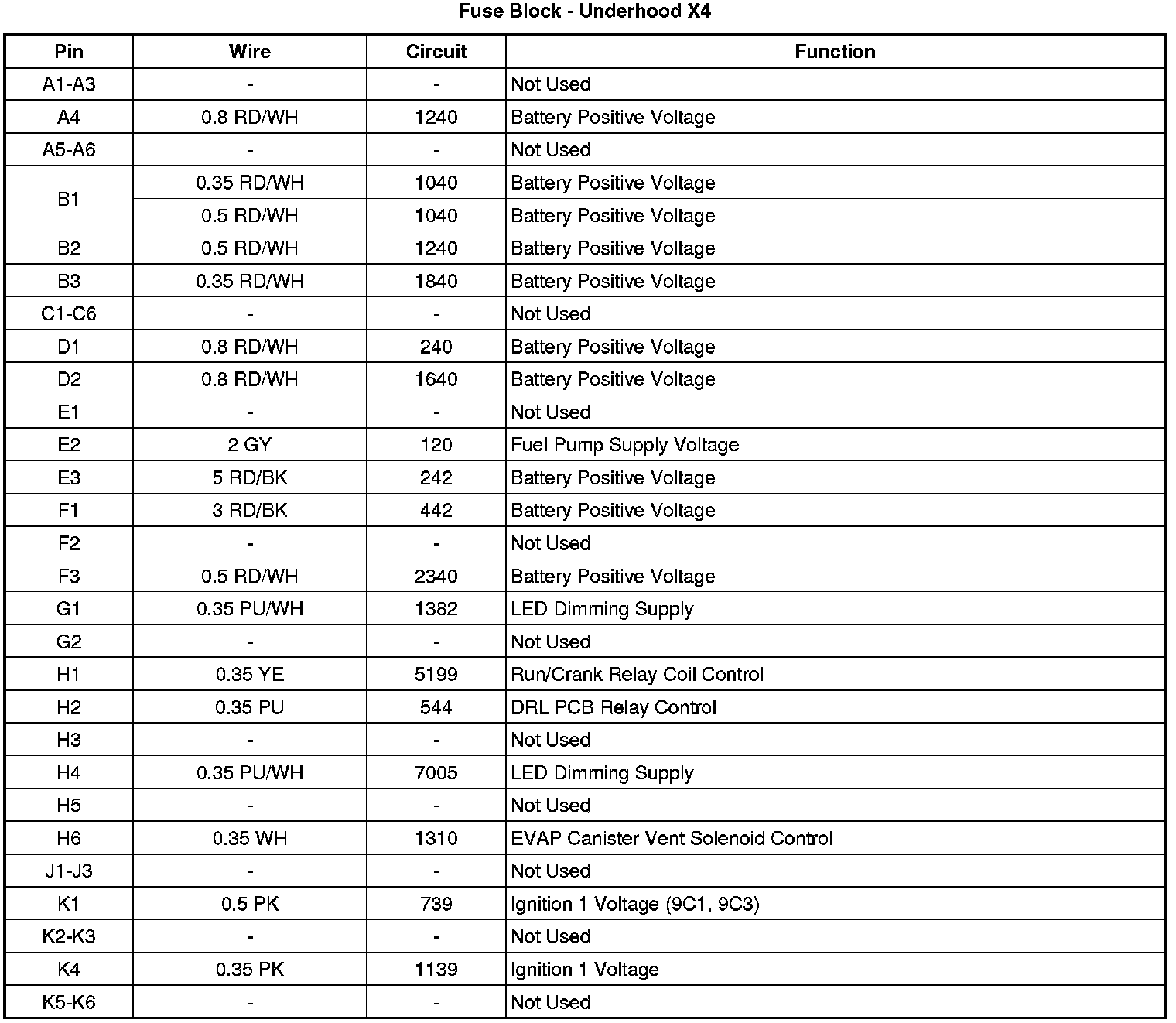

Fuse Block - Underhood X4
