Instrument Panel Harness Routing - Rear of the Instrument Panel Carrier

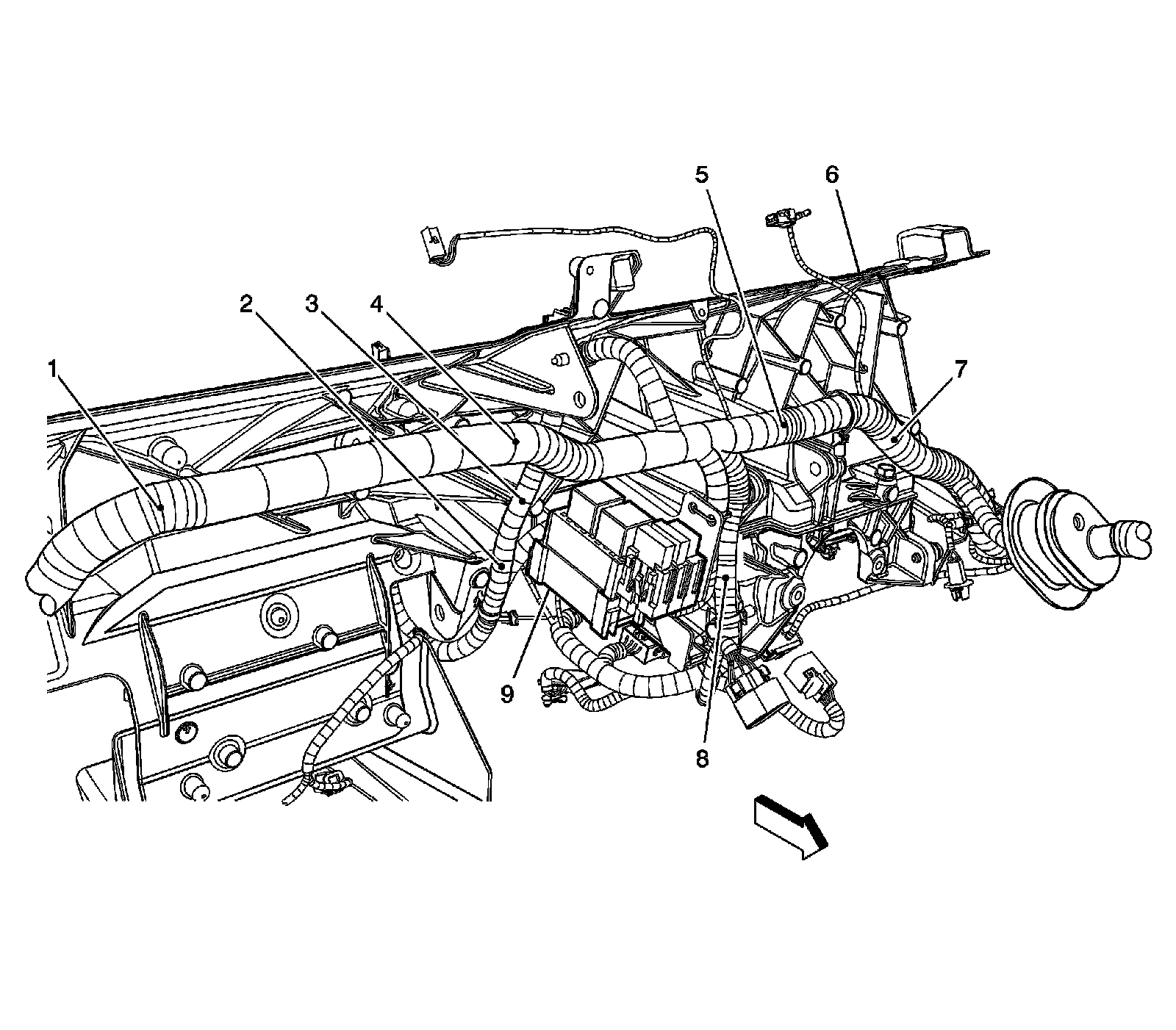

Harness Routing Views

Instrument Panel Harness Routing - Rear of the Instrument Panel Carrier




1 - J282
2 - J203
3 - J239
4 - J250
5 - J218
6 - Instrument Panel Carrier
7 - J259
8 - J269
9 - Fuse Block - Auxiliary (9C1/9C3)
