Rear of the Engine Components

Powertrain Component Views

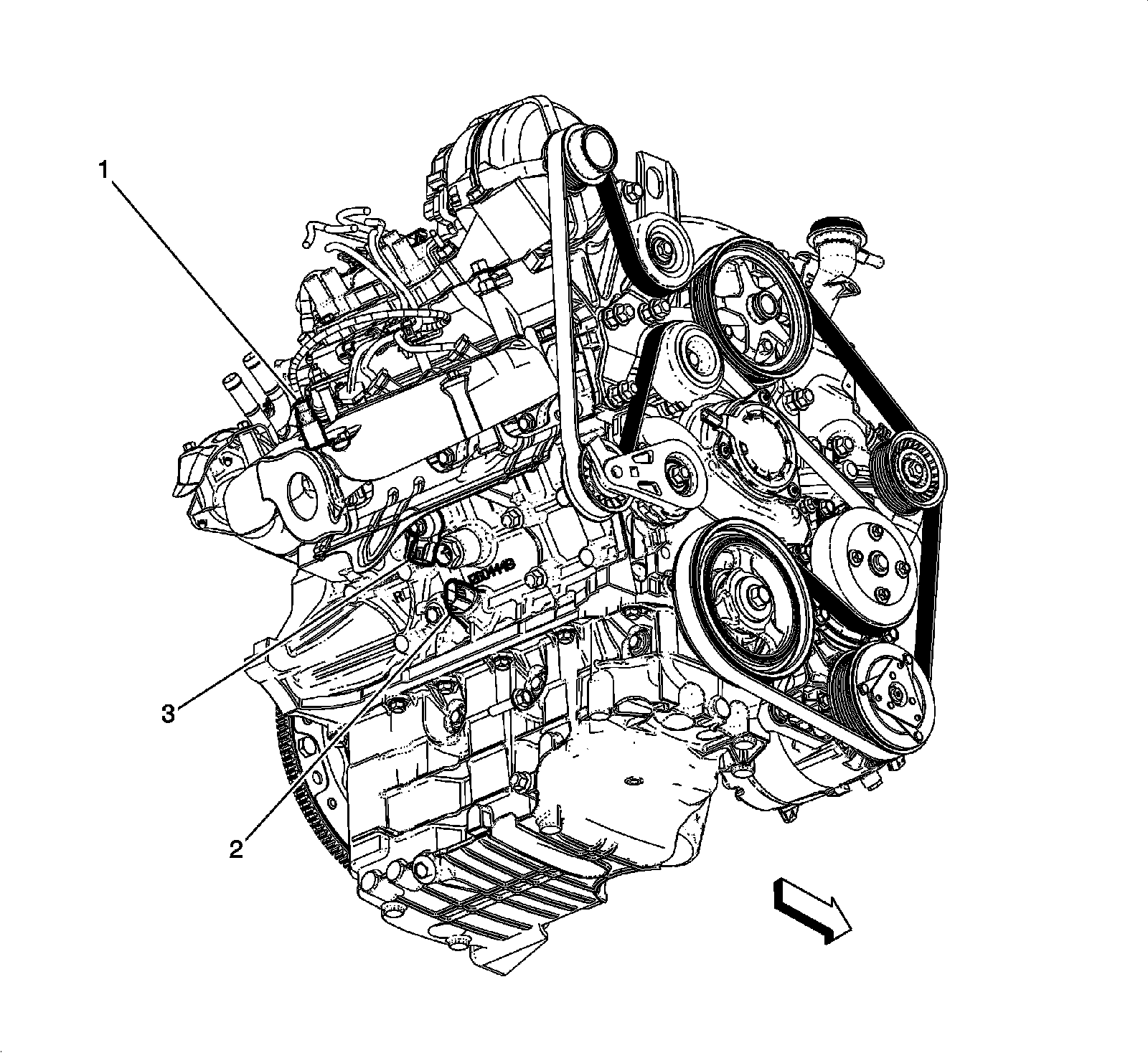

Rear of the Engine Components

1 - Heated Oxygen Sensor (HO2S) 1
2 - Crankshaft Position (CKP) Sensor
3 - Knock Sensor (KS) 1
