Fuel Injector: Diagrams

Component Connector End Views

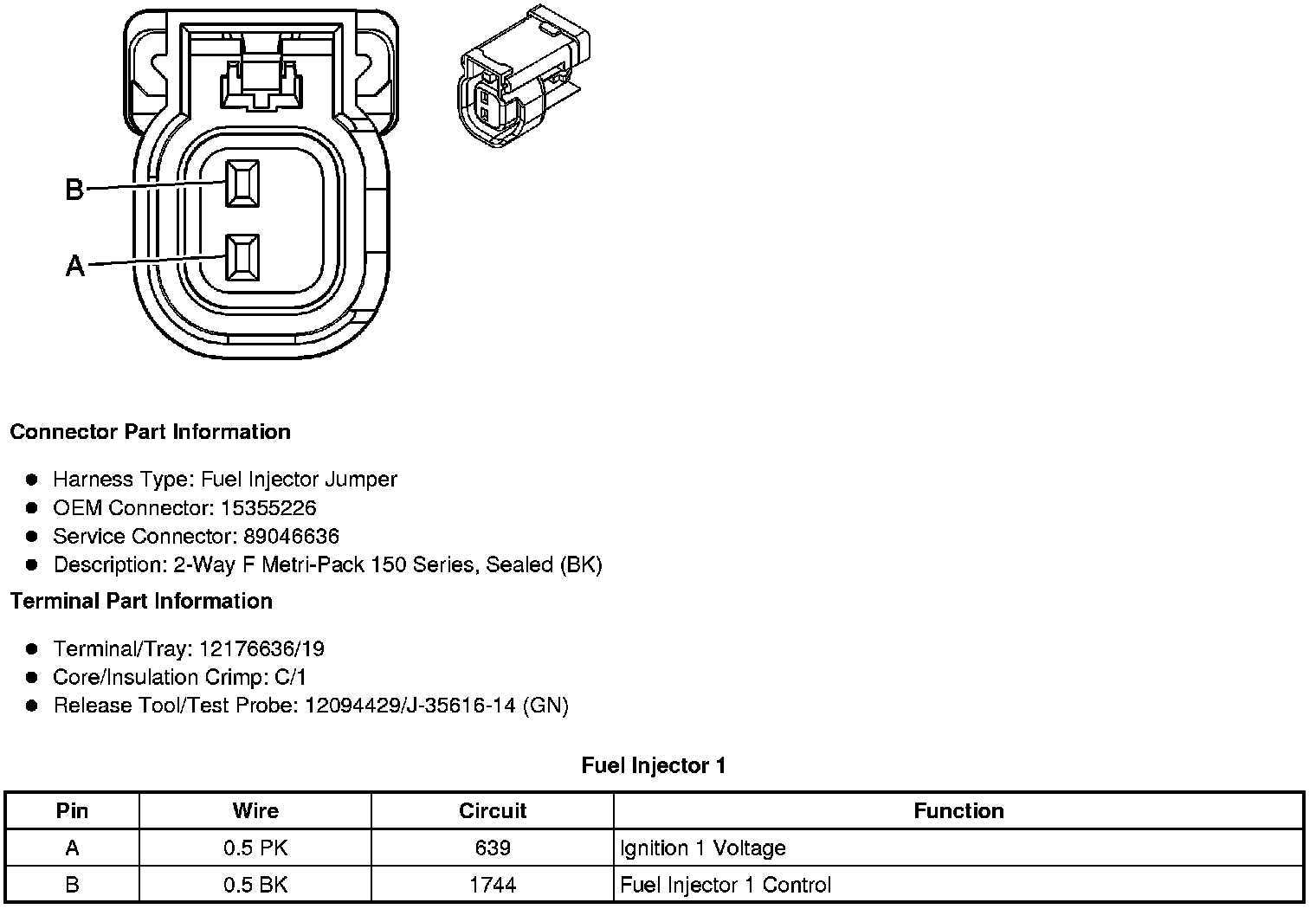

Fuel Injector 1

Fuel Injector 2

Fuel Injector 3

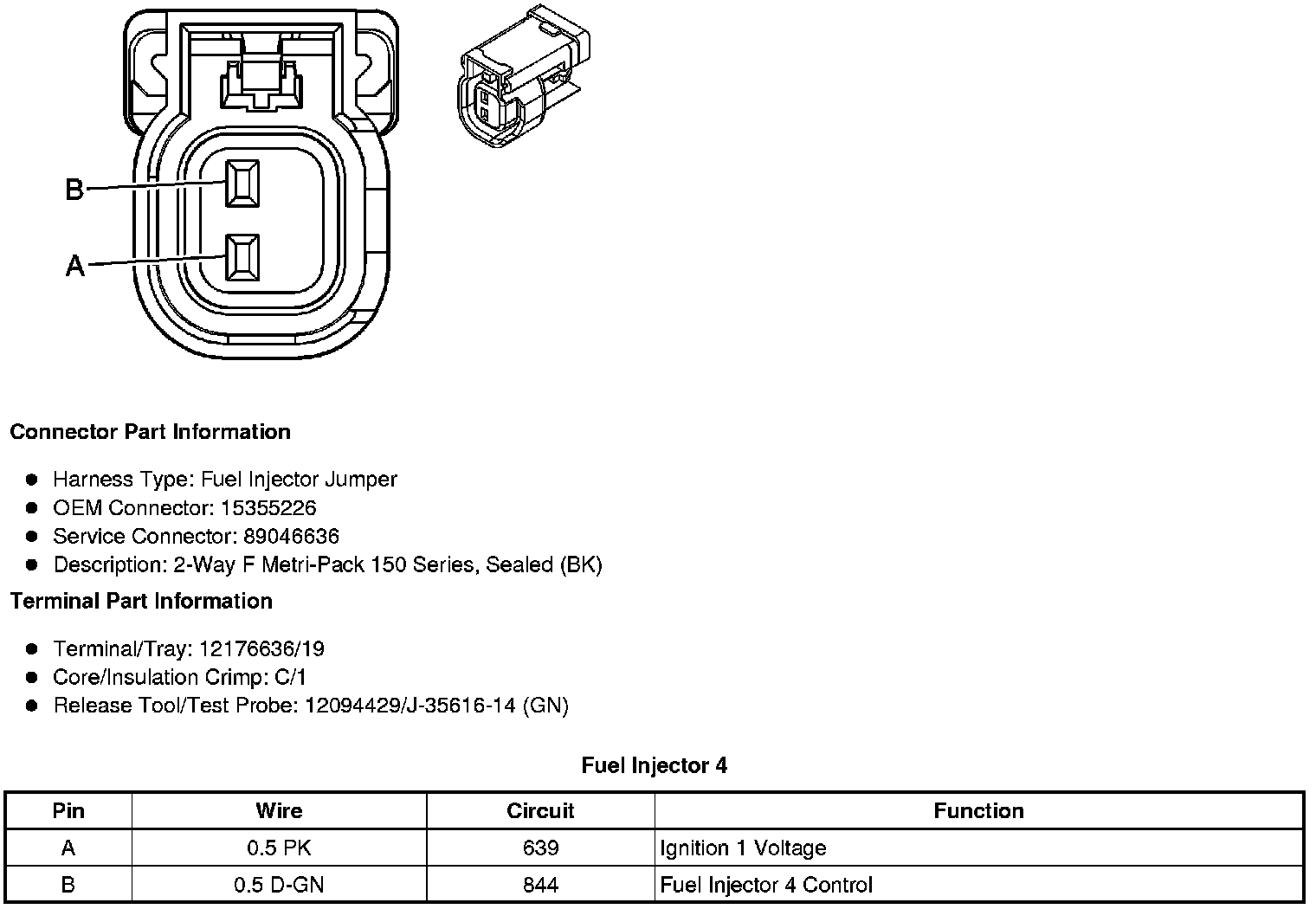

Fuel Injector 4

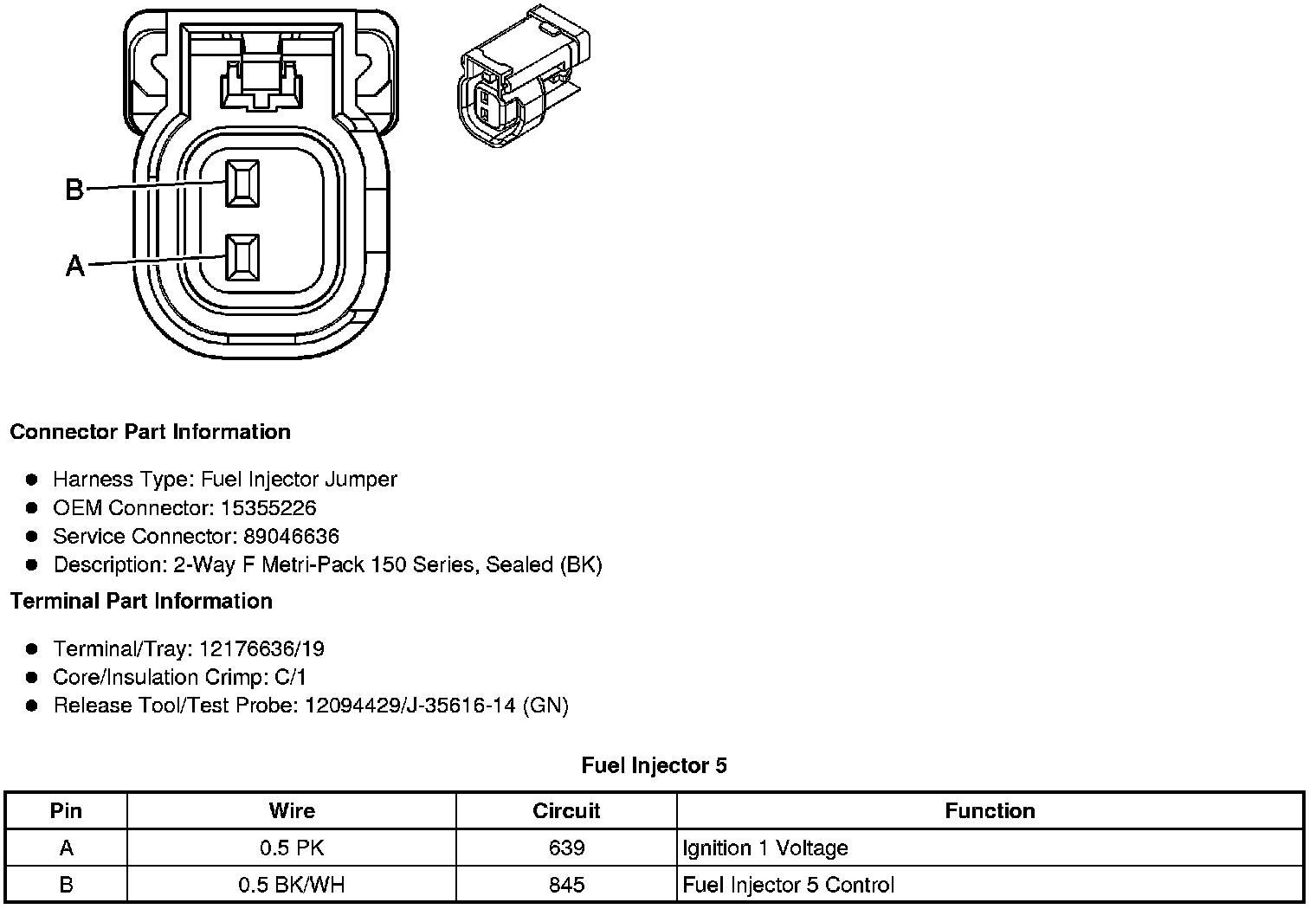

Fuel Injector 5

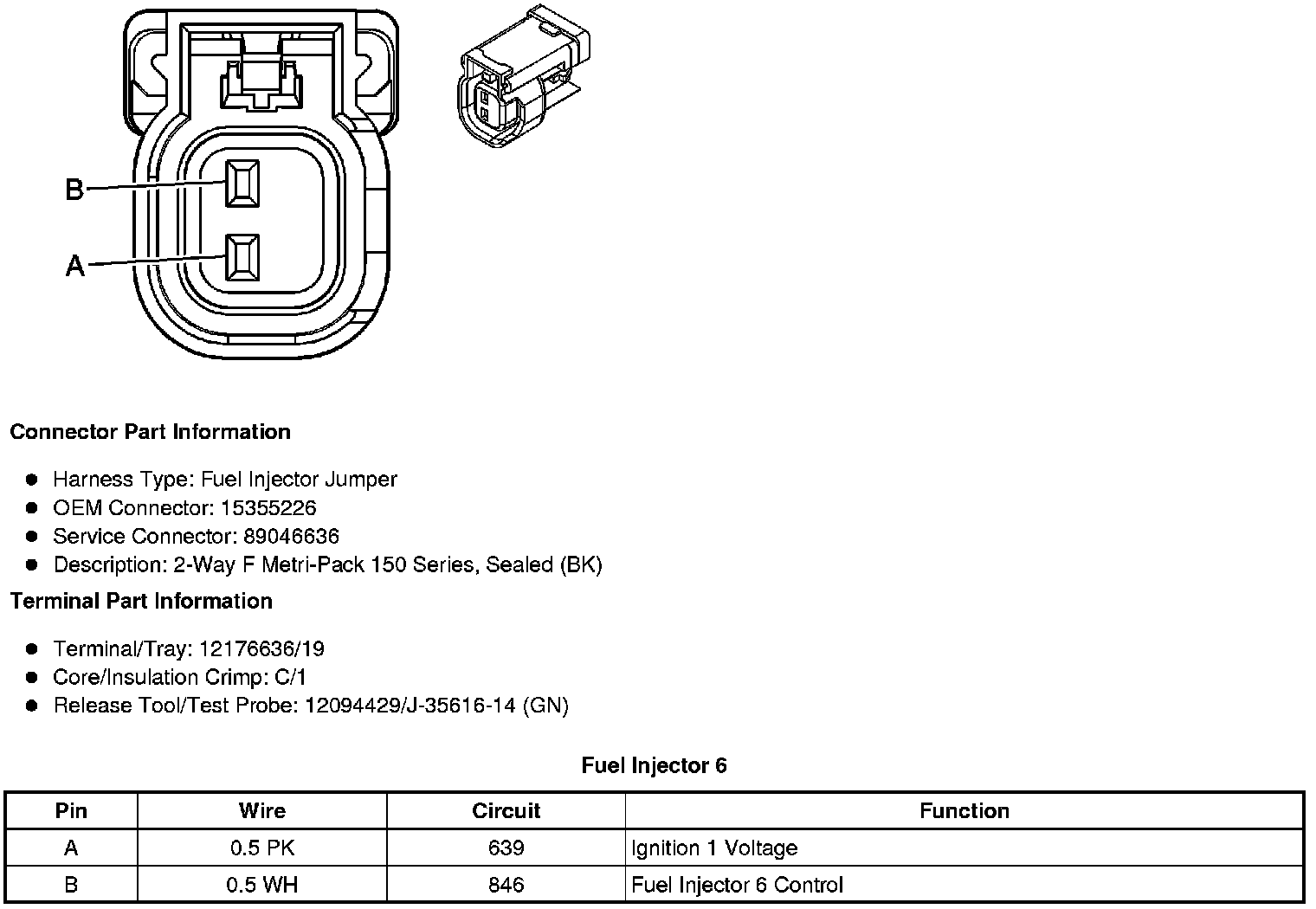

Fuel Injector 6
