Turn Signal Switch: Diagrams




Component Connector End Views

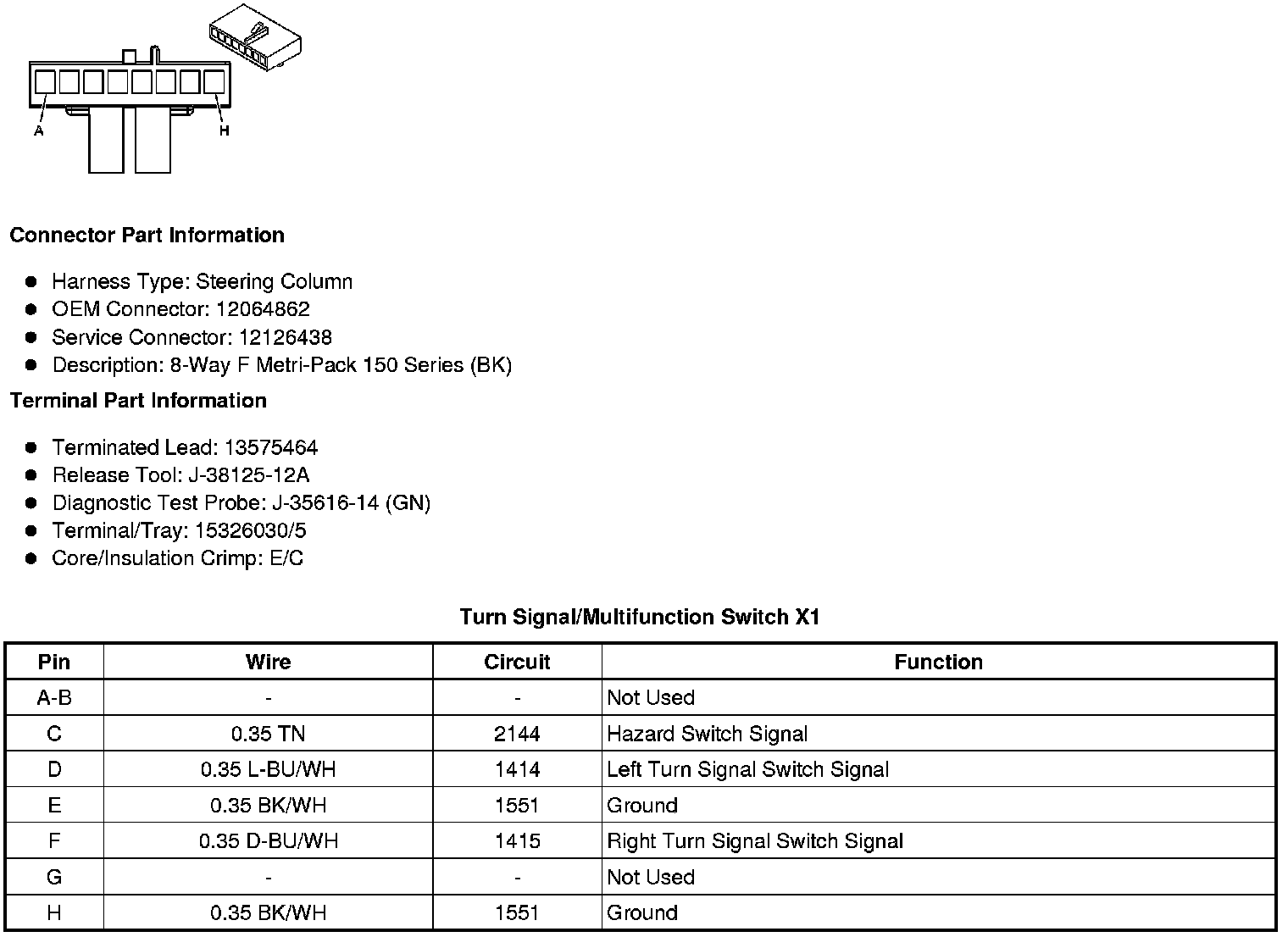

Turn Signal/Multifunction Switch X1





Turn Signal/Multifunction Switch X2





Component Connector End Views

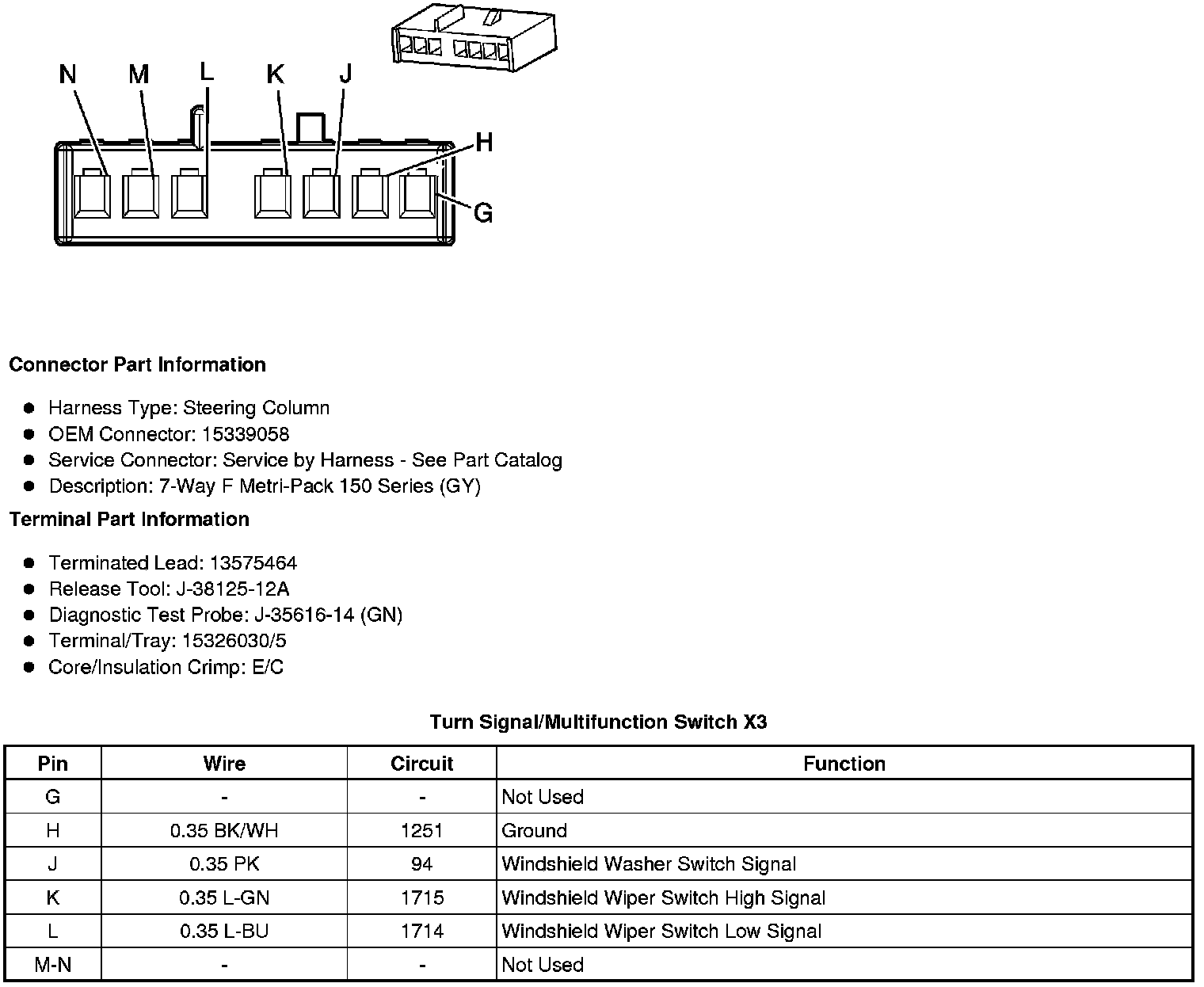

Turn Signal/Multifunction Switch X3
