Courtesy Lamp: Diagrams




Component Connector End Views

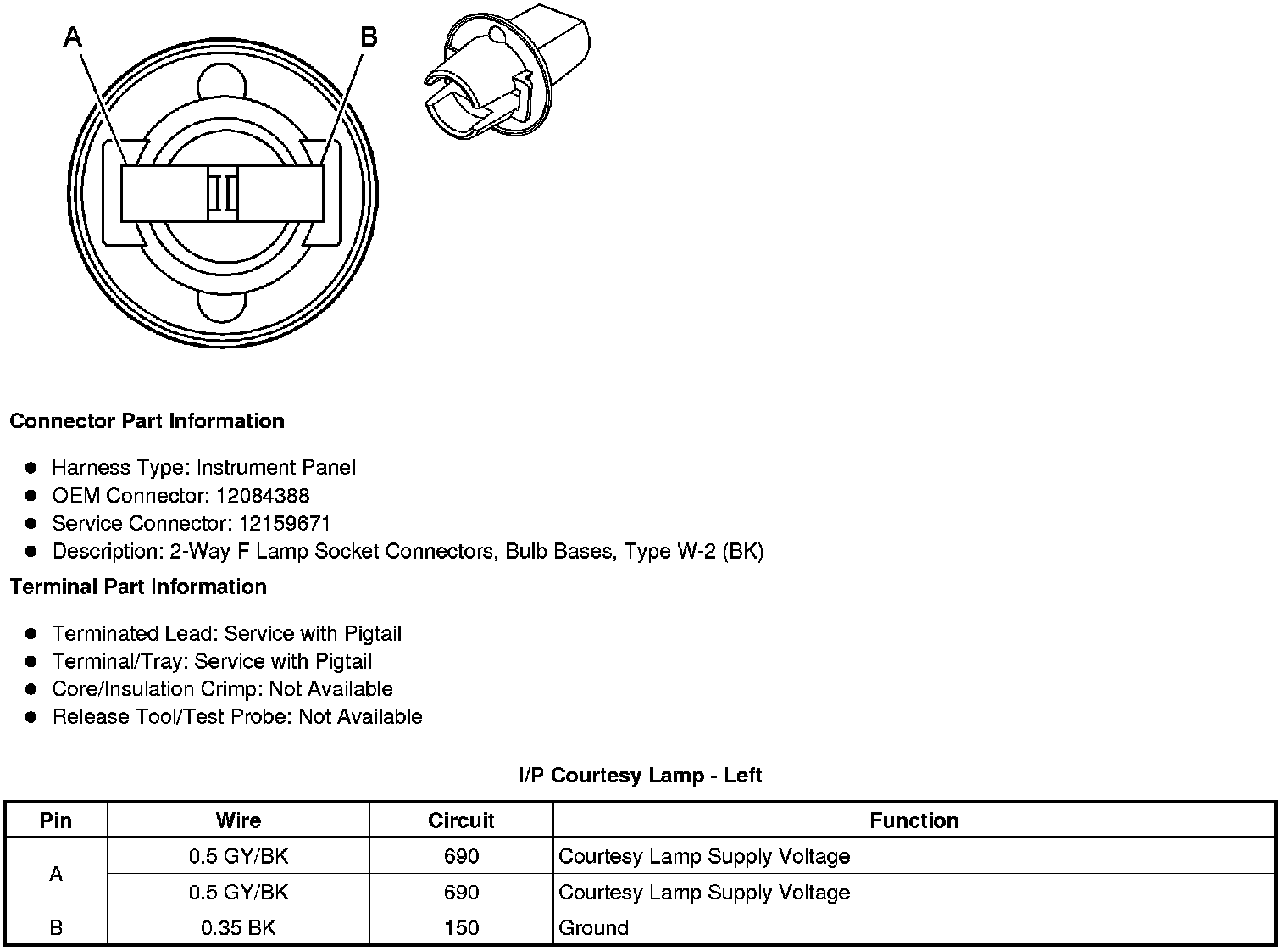

I/P Courtesy Lamp - Left

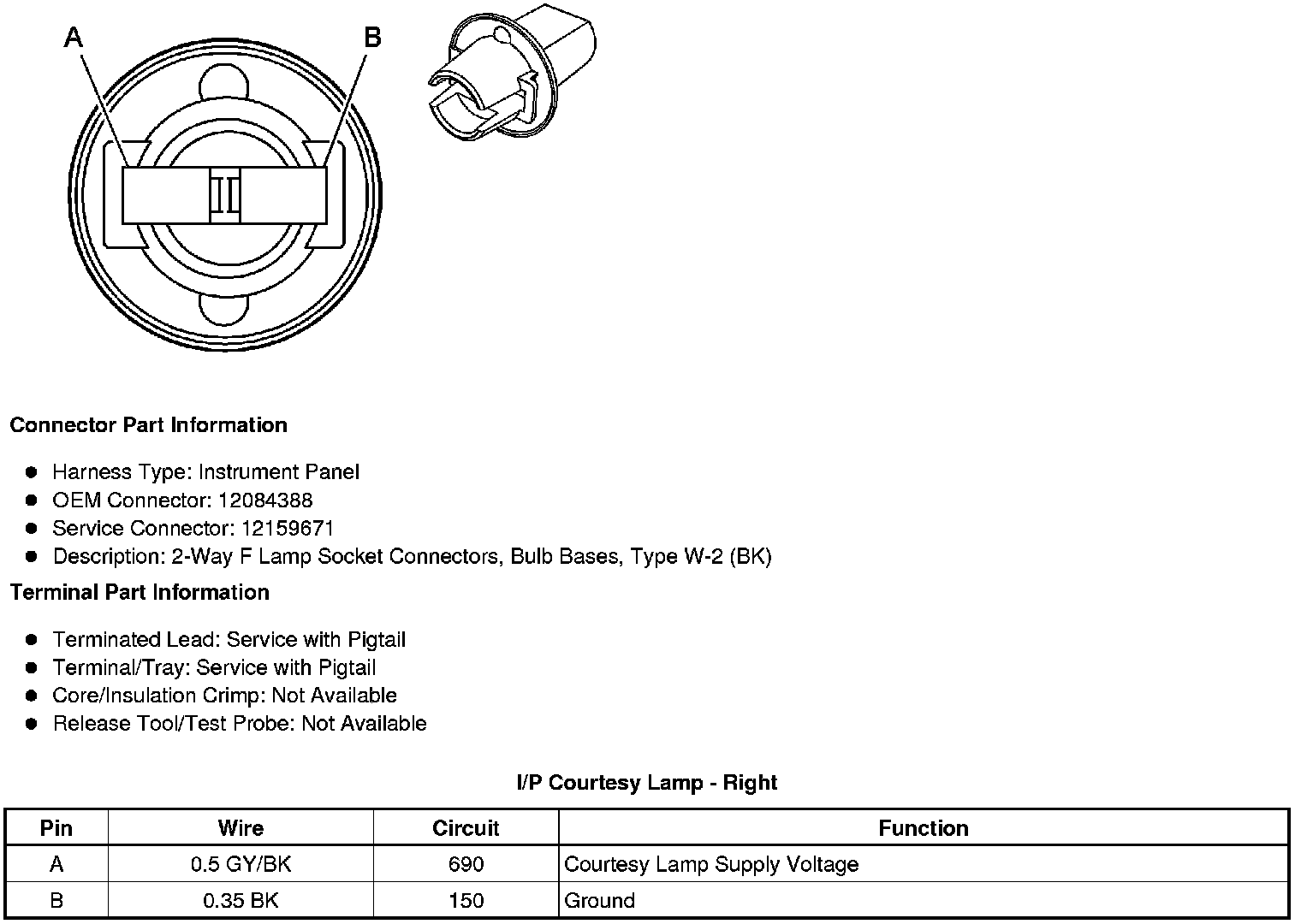

I/P Courtesy Lamp - Right

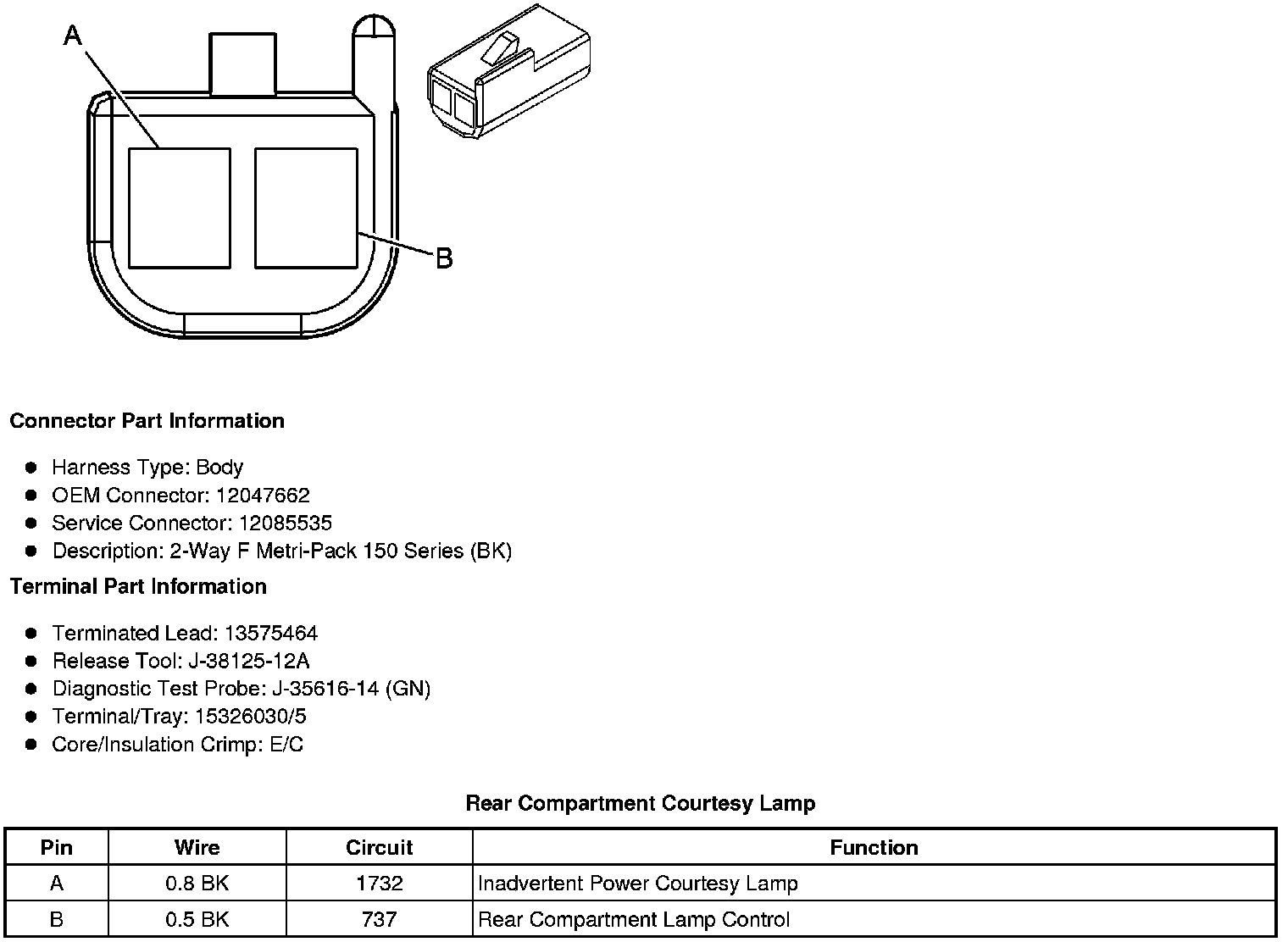

Rear Compartment Courtesy Lamp
