Speaker: Diagrams




Component Connector End Views

Speaker - Left Front Door





Speaker - Left Front Tweeter





Speaker - Left Rear (UW6)





Speaker - Left Rear (UQ3)





Speaker - Right Front Door





Speaker - Right Front Tweeter





Speaker - Right Rear (UW6)

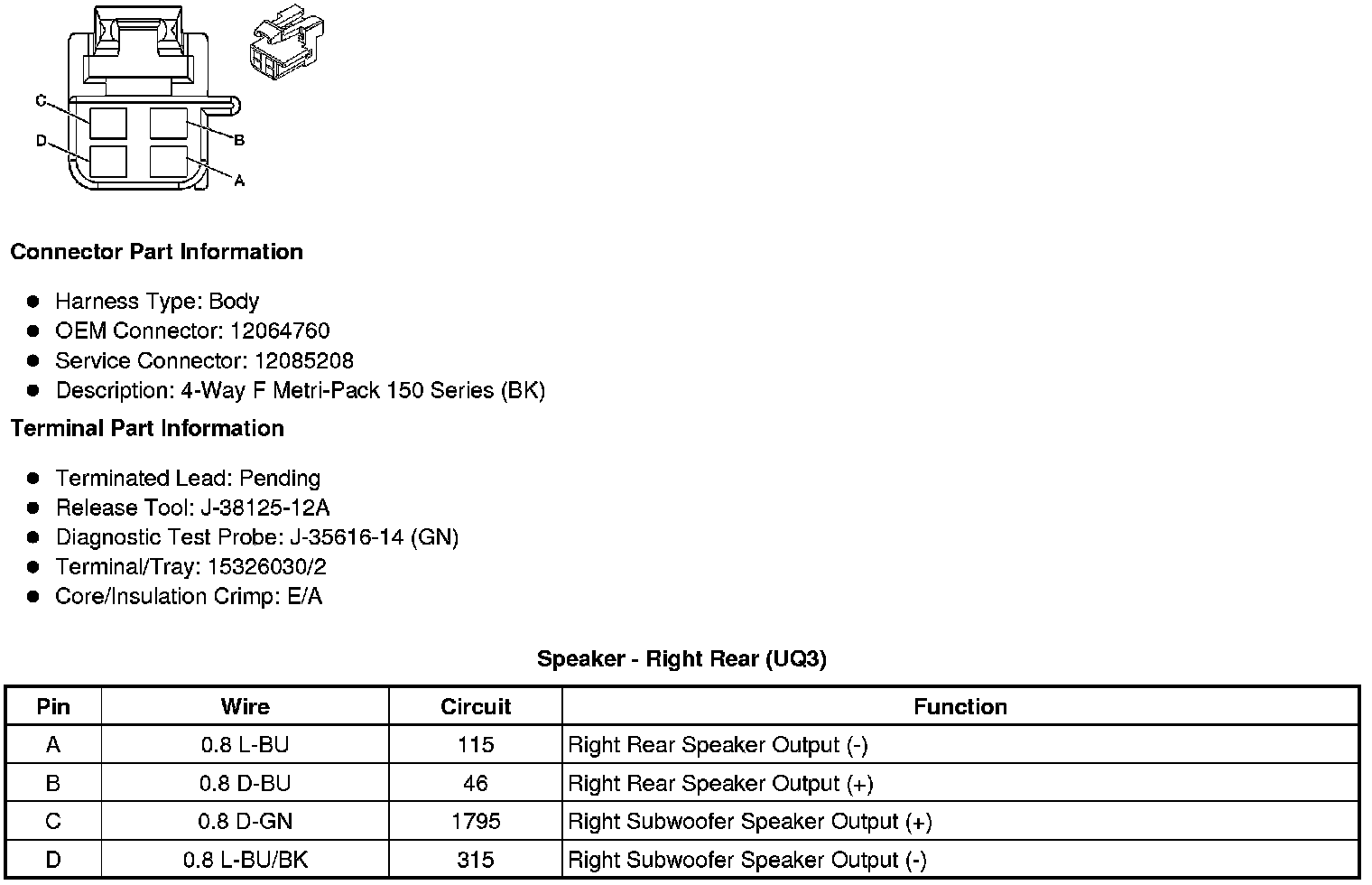

Speaker - Right Rear (UQ3)
