Home >> Chevrolet >> 2011 >> Impala V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Cellular Phone Microphone >> Diagrams

Cellular Phone Microphone: Diagrams

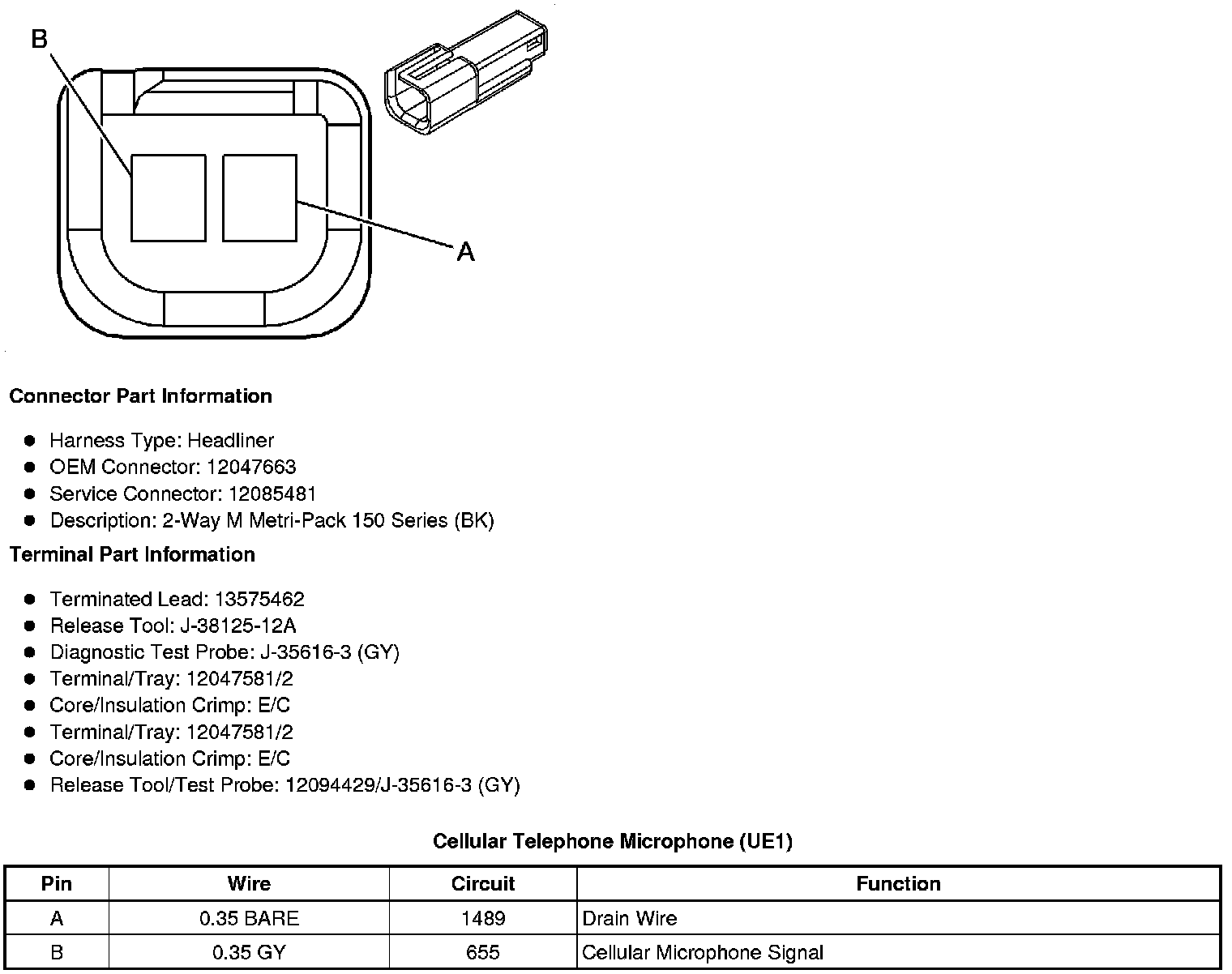

Component Connector End Views

Cellular Telephone Microphone (UE1)
