Rear Compartment Lid Replacement

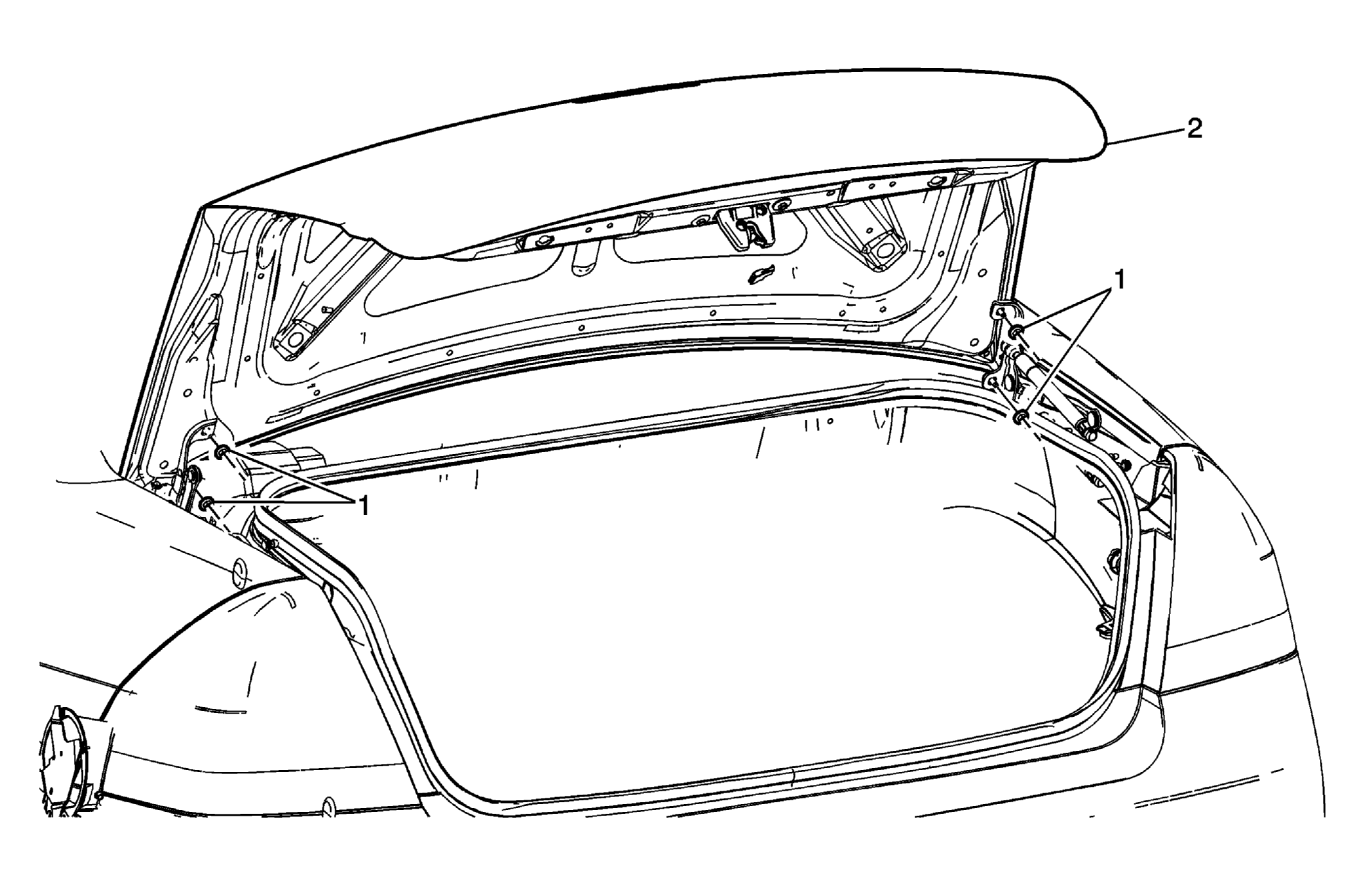

Fig 1: Rear Compartment Lid
GM1592136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Nut (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  25 N.m (19 lb ft)
2 Rear Compartment Lid
Tip:  Disconnect the electrical connector.
