Hood Replacement

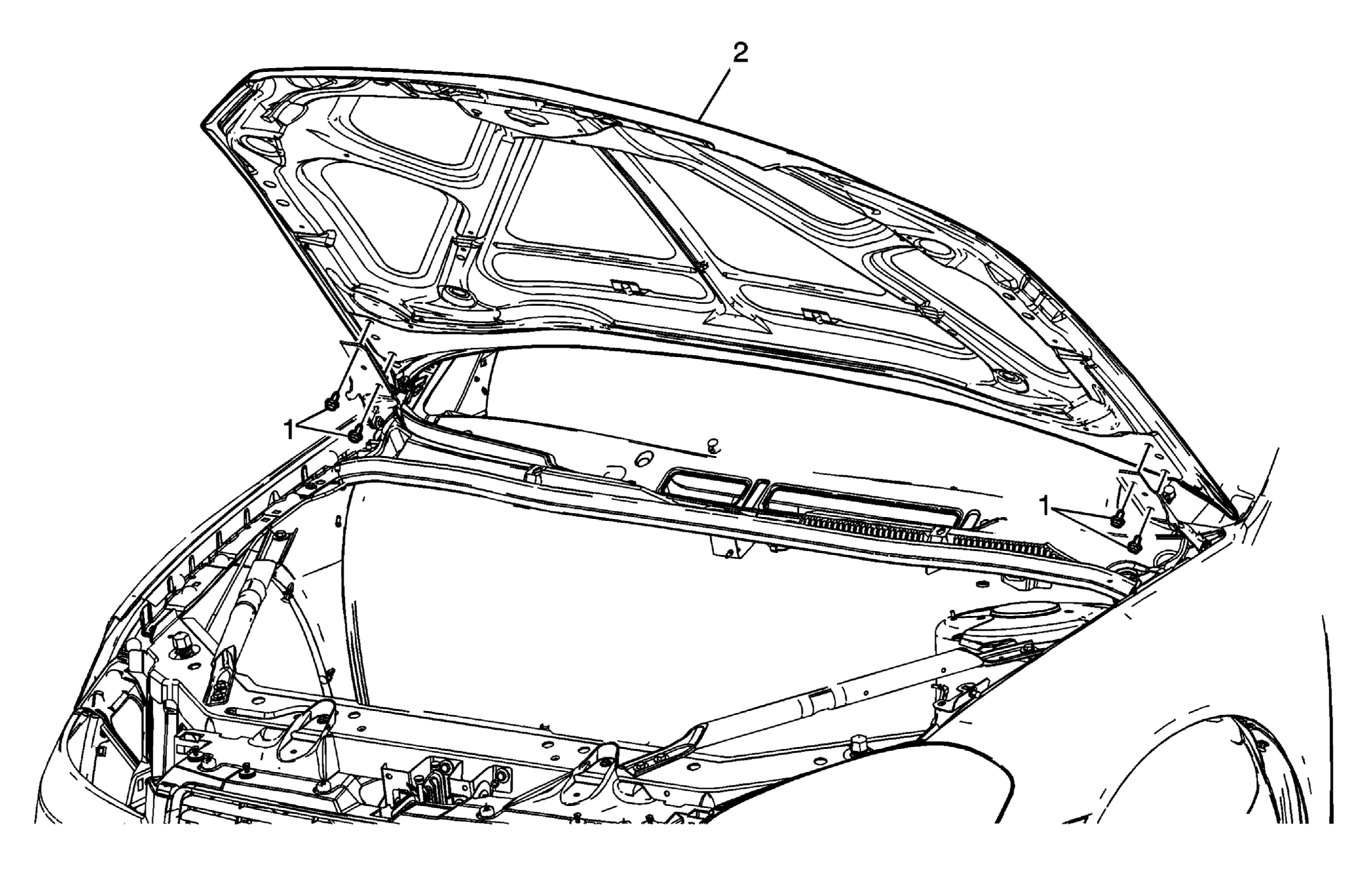

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the hood open assist rod. Refer to Hood Open Assist Rod Replacement . |
|
| 1 | Hood Hinge Bolts (Qty: 4)
WARNING:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
CAUTION:
Refer to Fastener Caution
.
Tighten: 25 N.m (19 lb ft) |
| 2 | Hood |
