Removal Procedure

WARNING: This page is about a different variant/trim than selected.

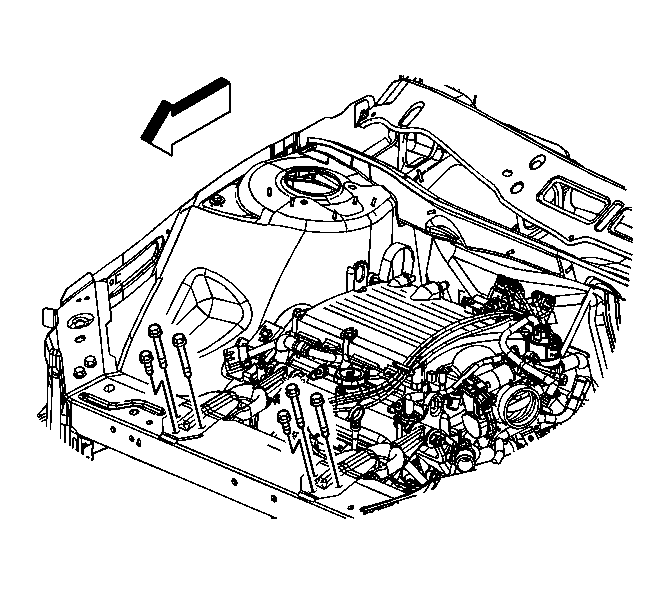

    Fig 1: View Of Engine Mount Strut & Radiator Support Bolts
    GM1607935Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine mount strut to radiator support bolts.

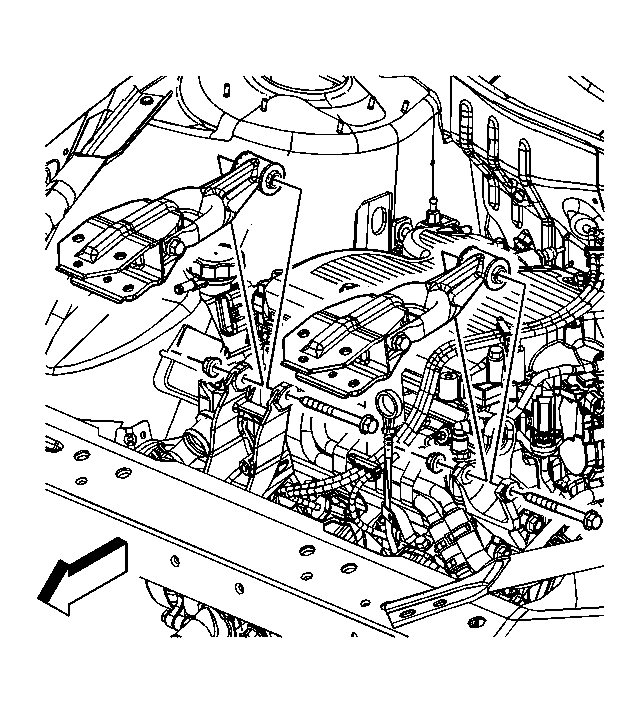

    2. Fig 2: View Of Engine Mount Struts
    GM1607932Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine mount strut to engine mount strut bracket bolts/nuts.
  3. Remove the engine mount strut(s).
