Exhaust Manifold Installation - Left Side

WARNING: This page is about a different variant/trim than selected.

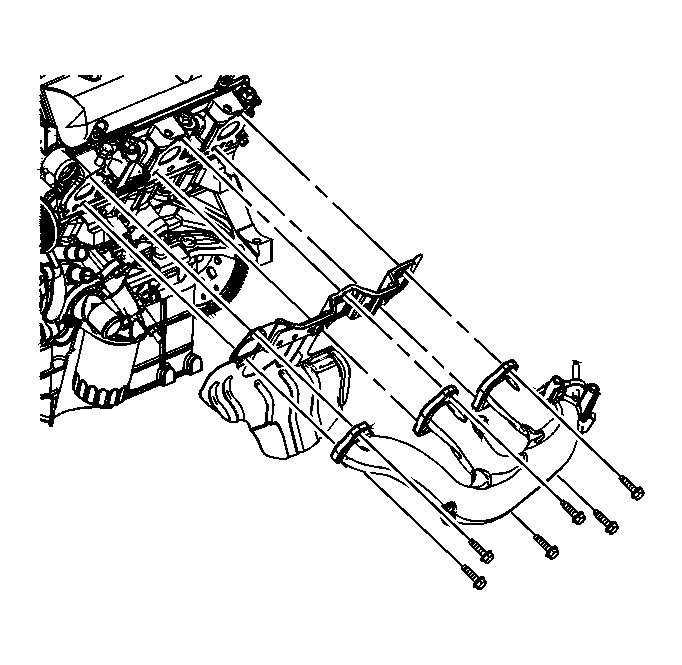

    Fig 1: View Of Left Exhaust Manifold & Gasket
    GM1645443Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust manifold gasket.
  2. Install the exhaust manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the exhaust manifold bolts and tighten to 20 N.m (15 lb ft).

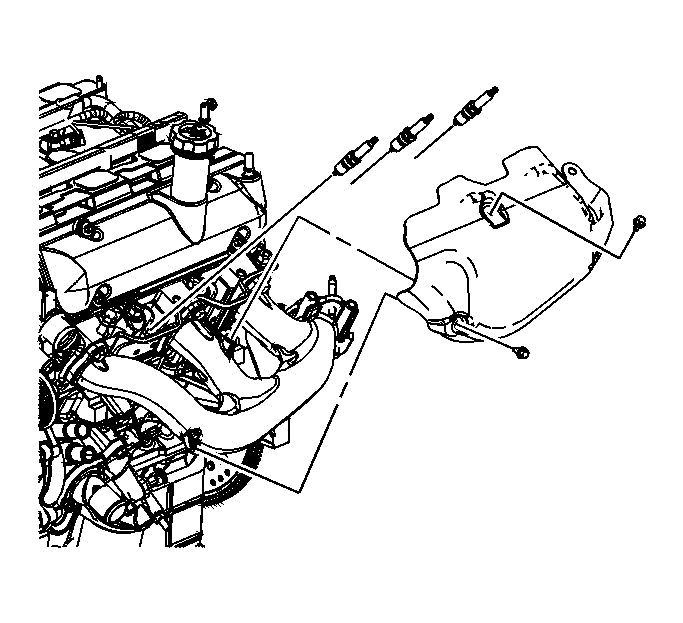

    4. Fig 2: View Of Spark Plugs & Heat Shield
    GM1645442Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust manifold heat shield.
  5. Install the exhaust manifold heat shield bolts and tighten to 10 N.m (89 lb in).
  6. Install the spark plugs and tighten to 15 N.m (11 lb ft).
  7. Install the spark plug wires.
