Special Tools

WARNING: This page is about a different variant/trim than selected.

J-34115: Left Side Axle Seal Installer

For equivalent regional tools, refer to Special Tools .

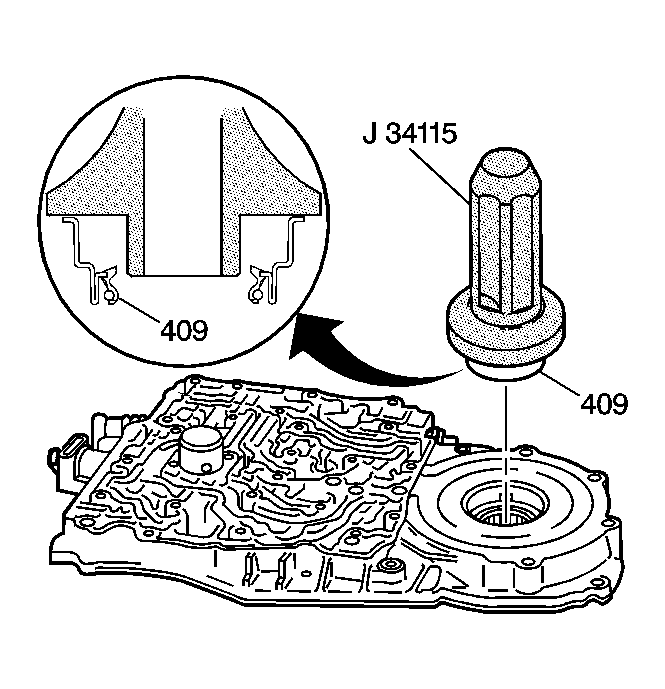

Fig 1: View Of Left Side Axle Oil Seal And J-34115

Courtesy of GENERAL MOTORS CORP.

CAUTION: Install the seal onto the tool before installing into the case to prevent damage to the seal.

NOTE: When you remove a drive axle from the transmission for any reason, inspect the axle sealing surface (tripot shank) for corrosion. If corrosion is evident, clean the surface with a 320 grit cloth or equivalent. Clean off any remaining debris with automatic transmission fluid. Wipe the surface dry and reinstall the drive axle free of any build up.

Use J-34115: seal installer in order to install the left side axle oil seal assembly (409).
