Removal Procedure

WARNING: This page is about a different variant/trim than selected.

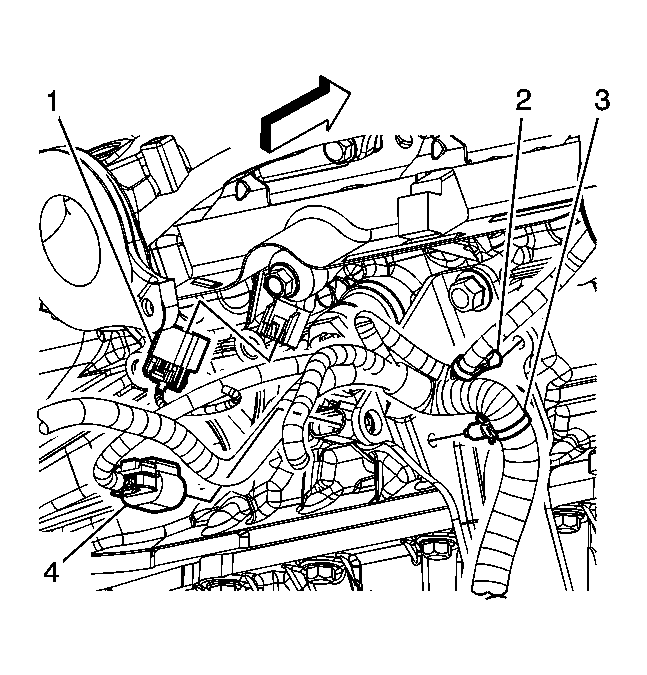

    Fig 1: Identifying Electrical Connector
    GM1612884Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the crankshaft position (CKP) sensor electrical connector (4).
    3. Fig 2: View Of CKP Sensor
    GM1587763Courtesy of GENERAL MOTORS CORP.
  3. Remove the CKP sensor stud.
  4. Remove the CKP sensor.
