Removal Procedure

WARNING: This page is about a different variant/trim than selected.

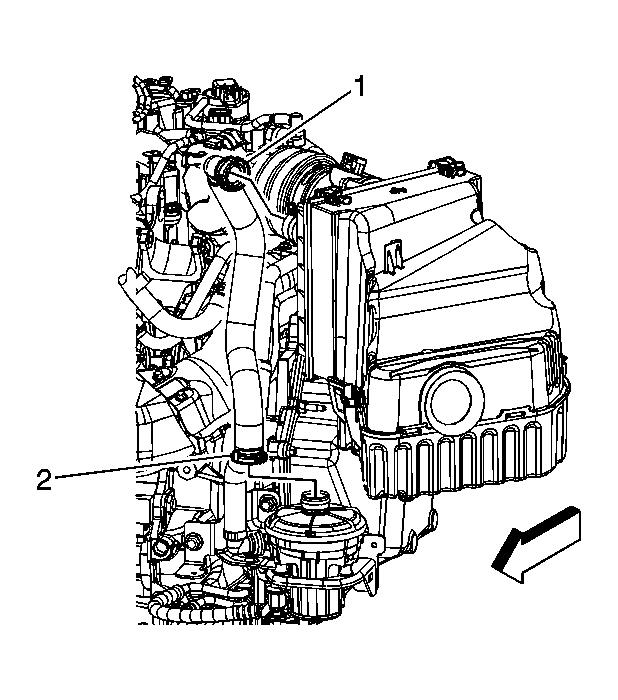

    Fig 1: Identifying Air Pump Hose Quick Connect Fitting
    GM1844046Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Release the spring clamps (1) on top of the air cleaner housing.
    3. Fig 2: Air Cleaner Housing & Element
    GM1556019Courtesy of GENERAL MOTORS CORP.
  3. Remove the air cleaner housing cover.
  4. Remove the air filter element.
