Automatic Transmission Controls Wiring Schematics

WARNING: This page is about a different variant/trim than selected.

Fig 1: Power, Ground, and Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

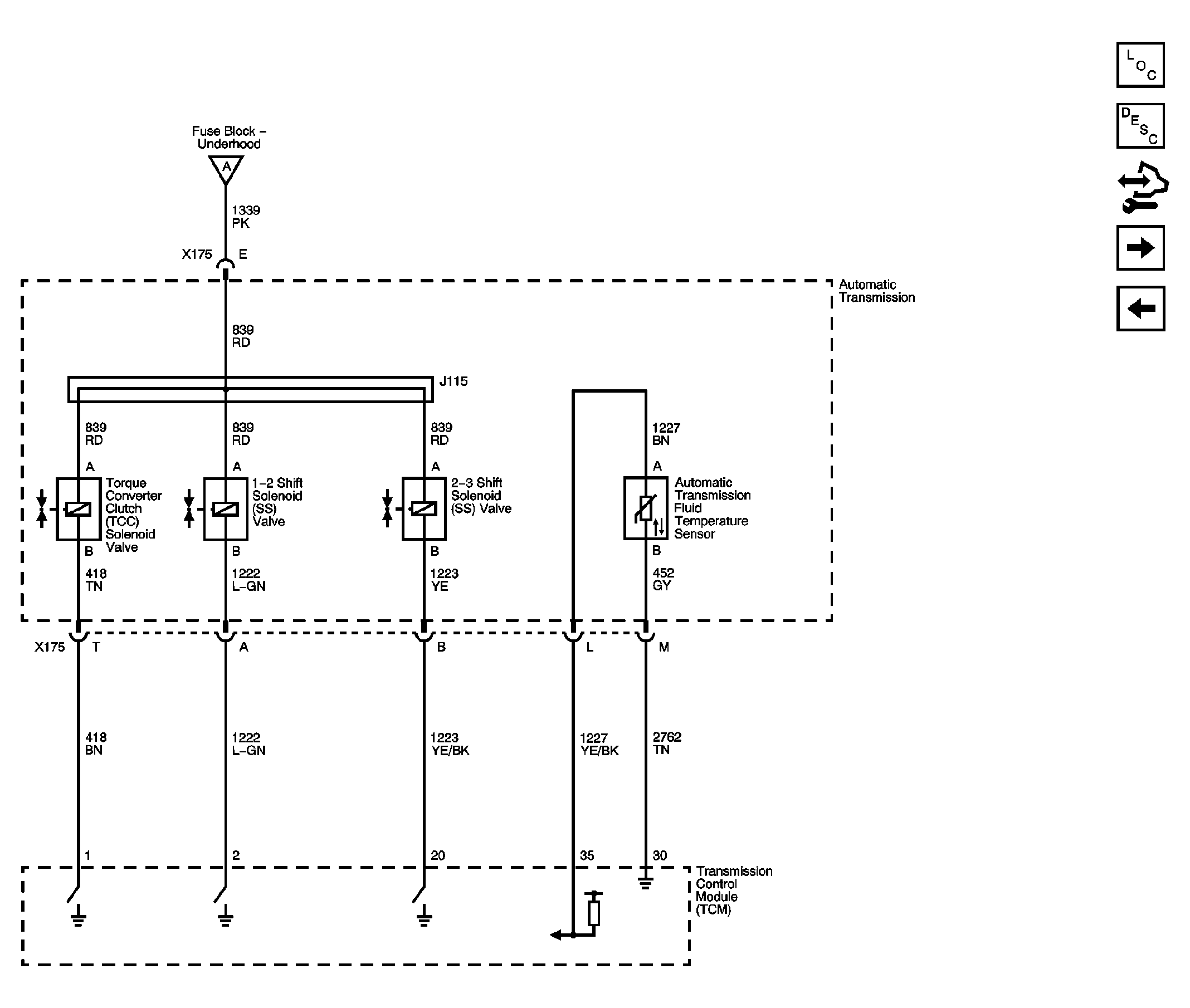

Fig 2: Stop Lamp Switch Signal, TFT Sensor, TCC And Shift Solenoids Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

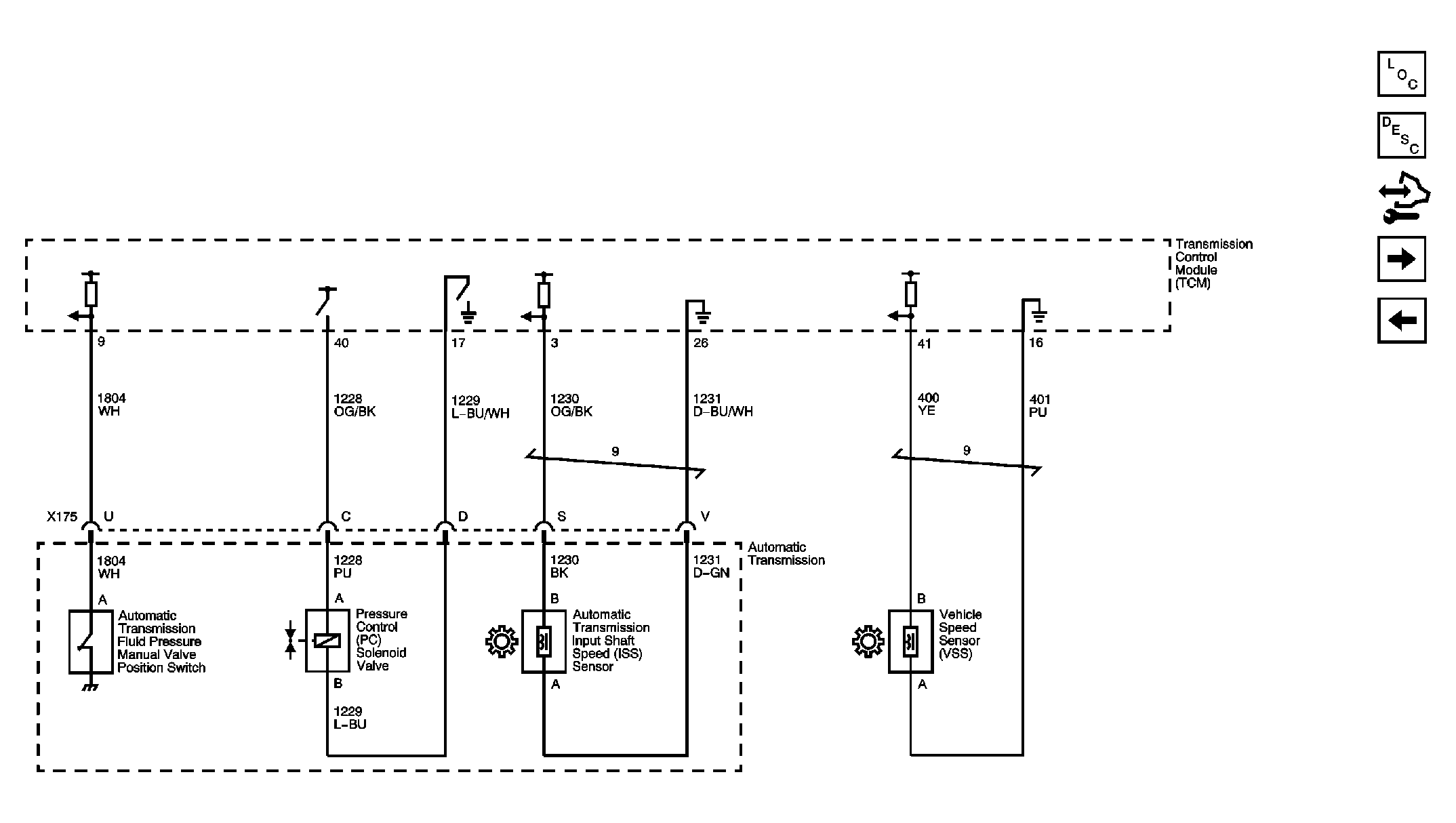

Fig 3: VSS, AT ISS Sensors, Pressure Control Solenoid Valve And TCC Release Switch Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

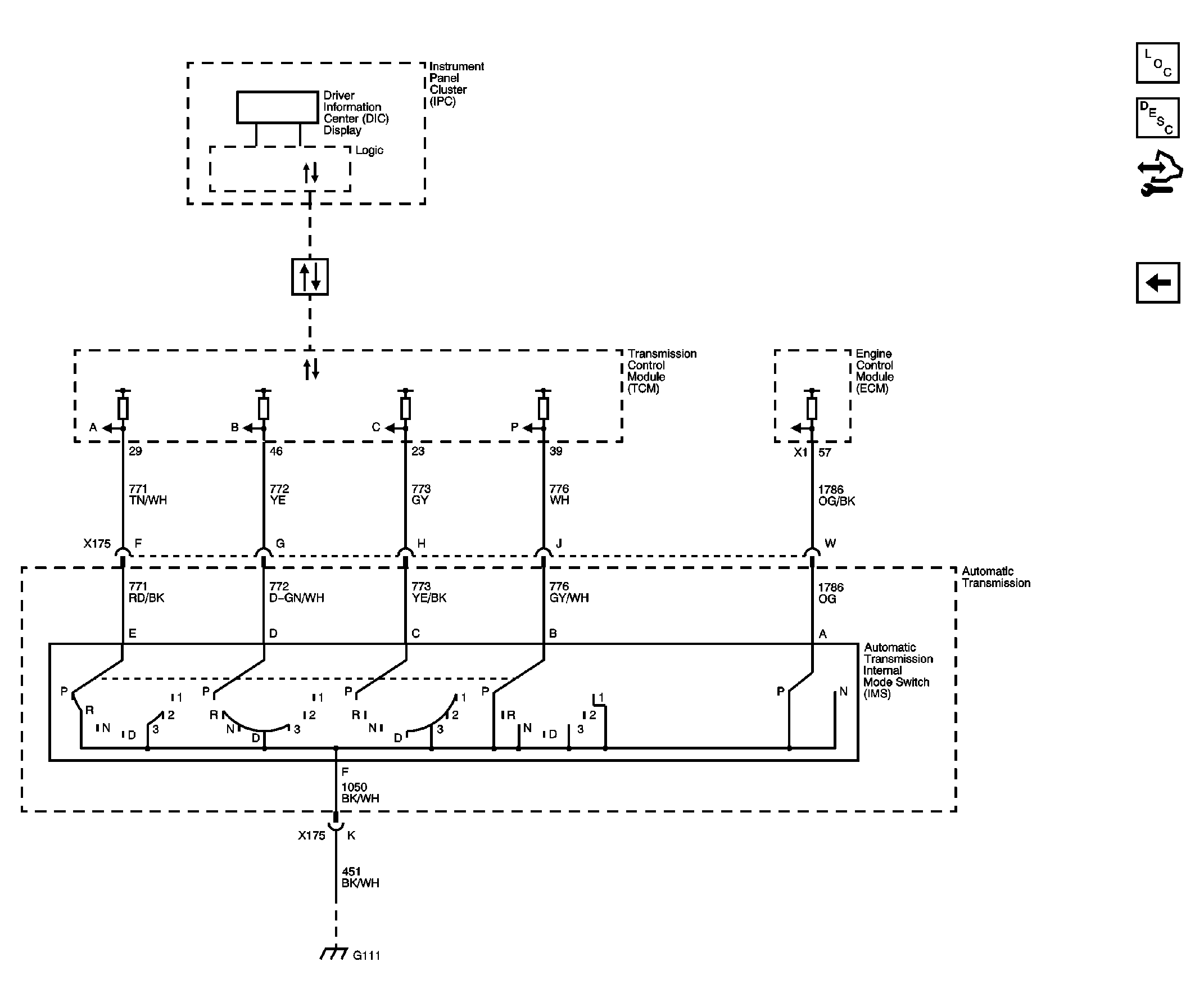

Fig 4: PRNDL And IMS Switch Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
