Engine Controls Wiring Schematics

WARNING: This page is about a different variant/trim than selected.

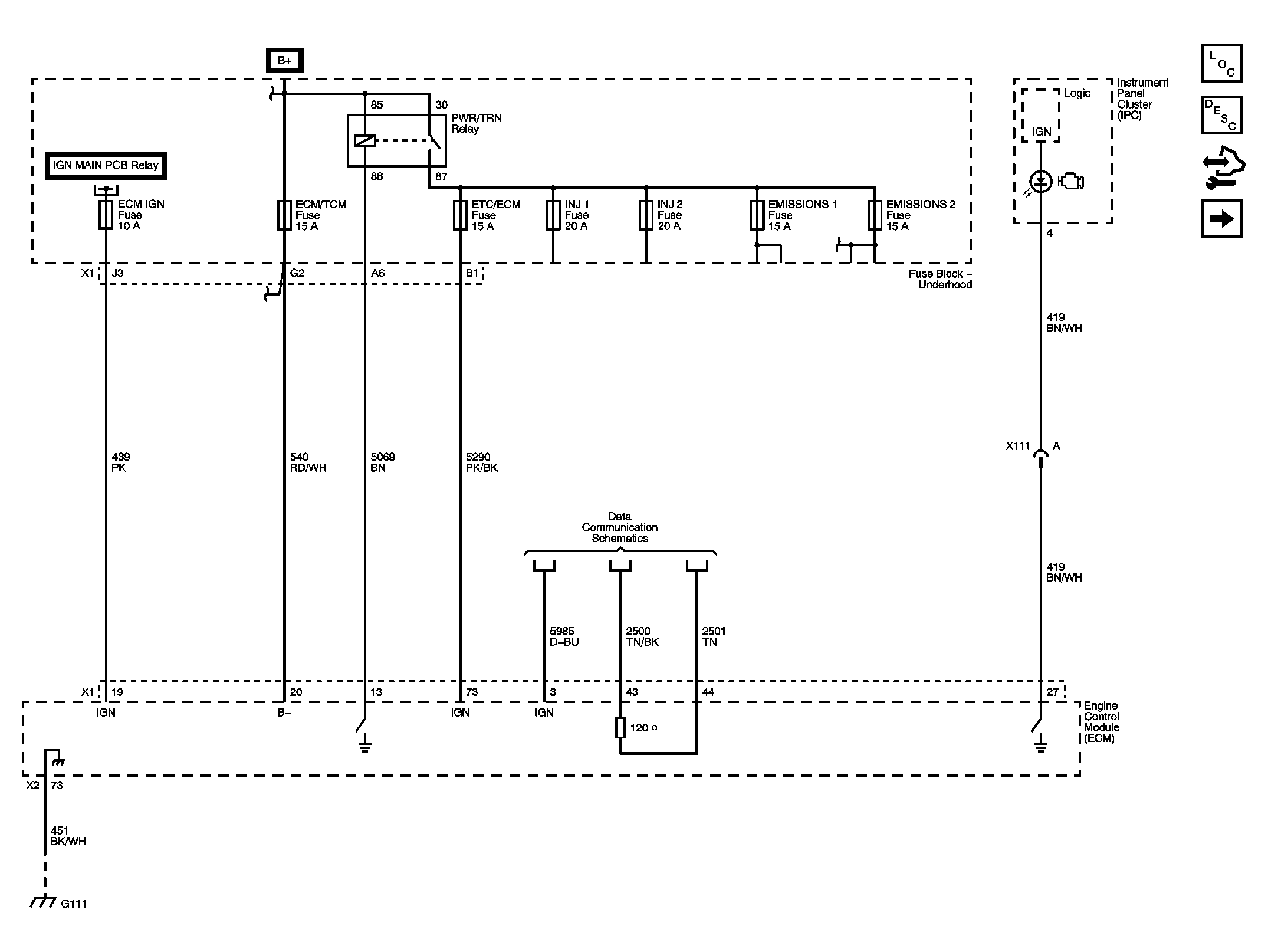

Fig 1: ECM Power, Ground, MIL And Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

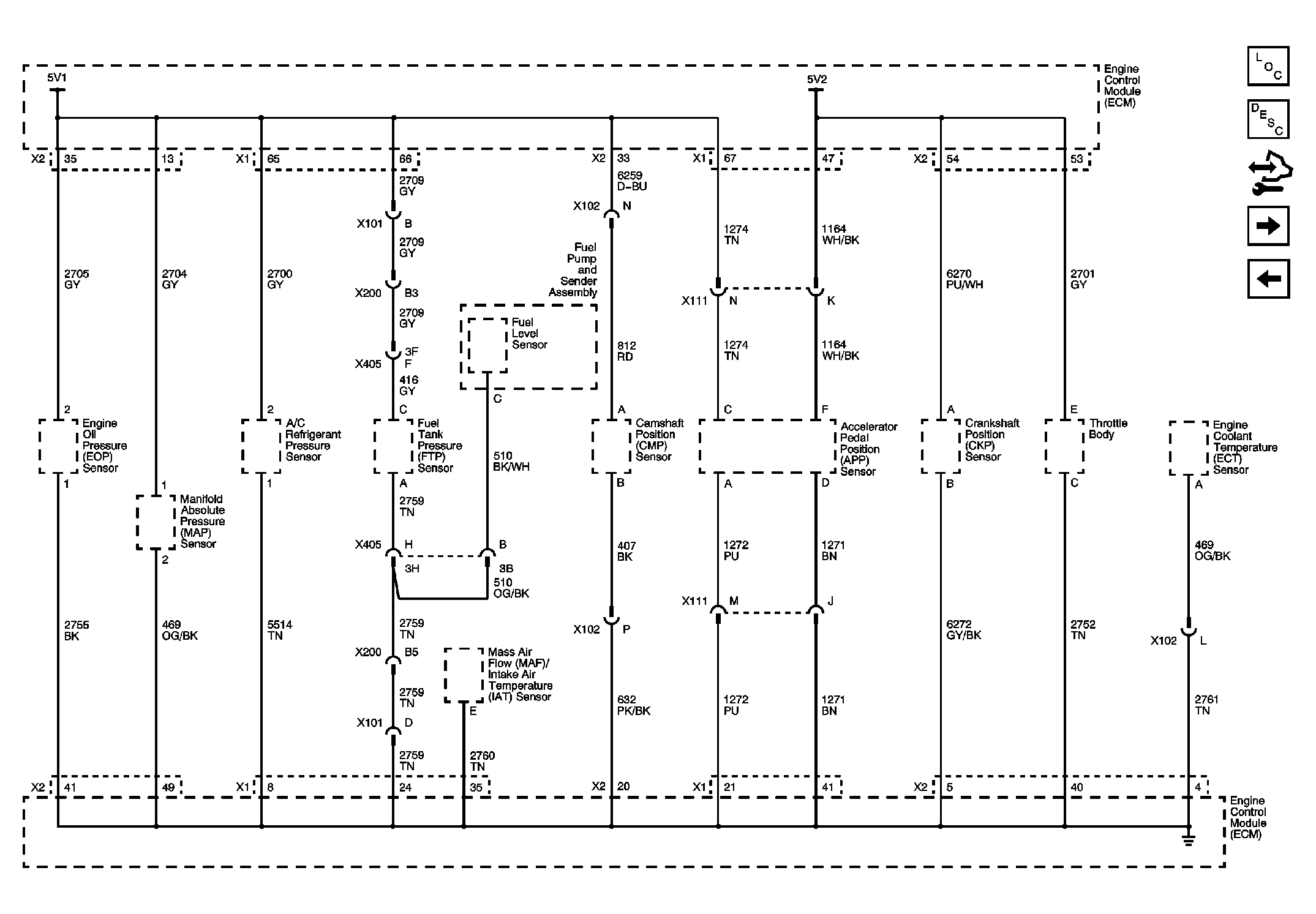

Fig 2: 5-Volt And Low Reference Bussing Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

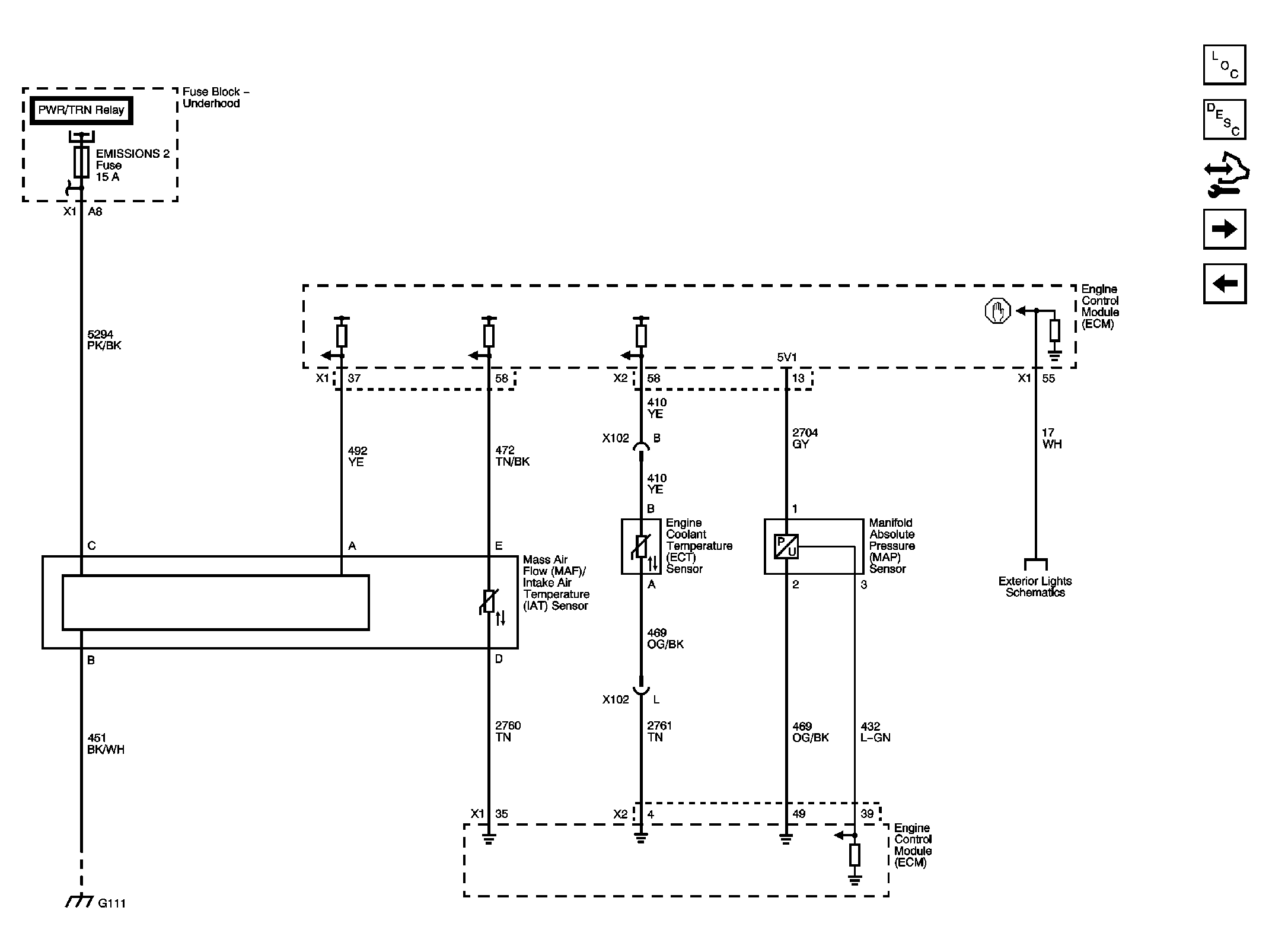

Fig 3: MAF/IAT, MAP And ECT Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

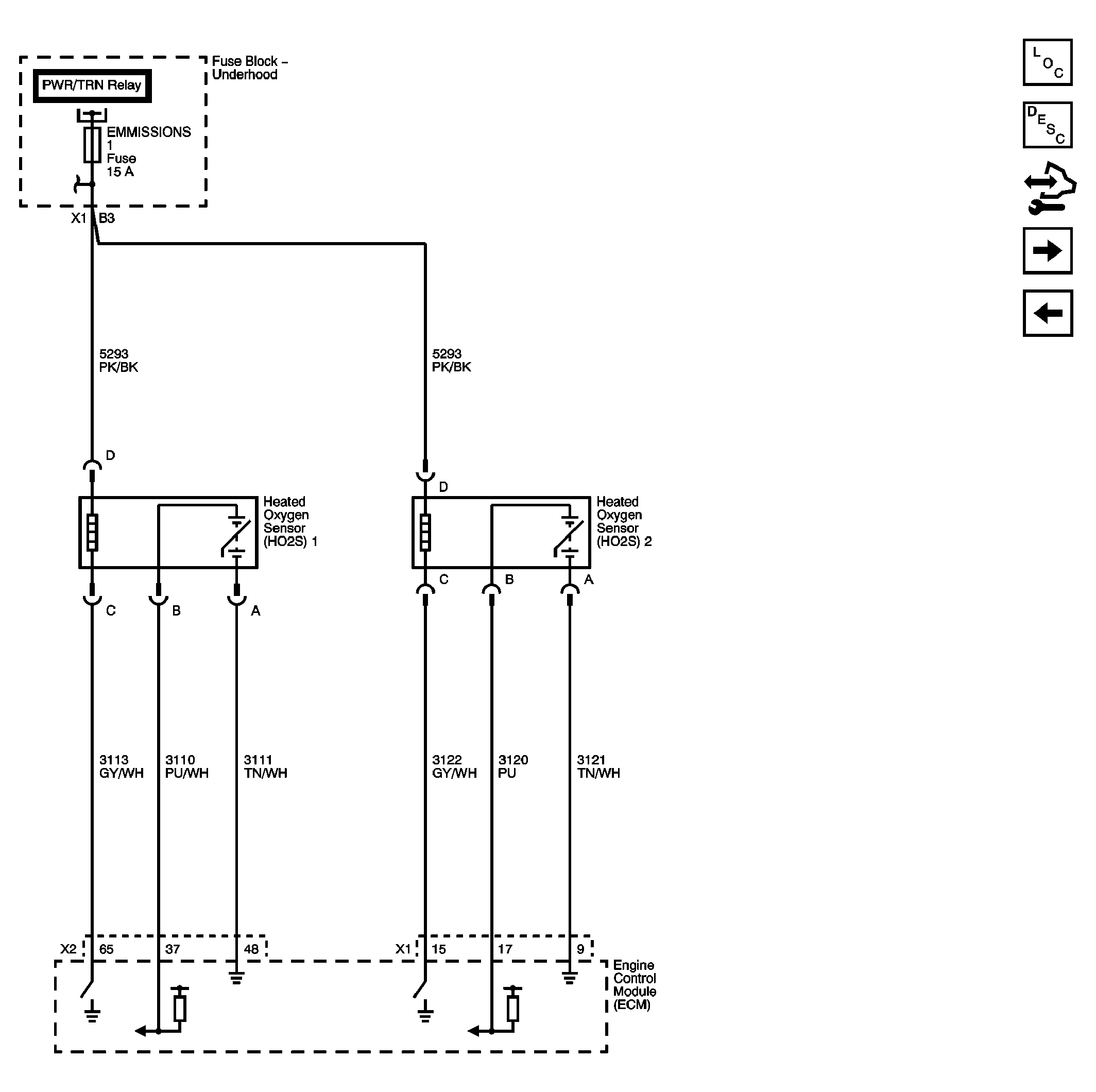

Fig 4: Heated Oxygen Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

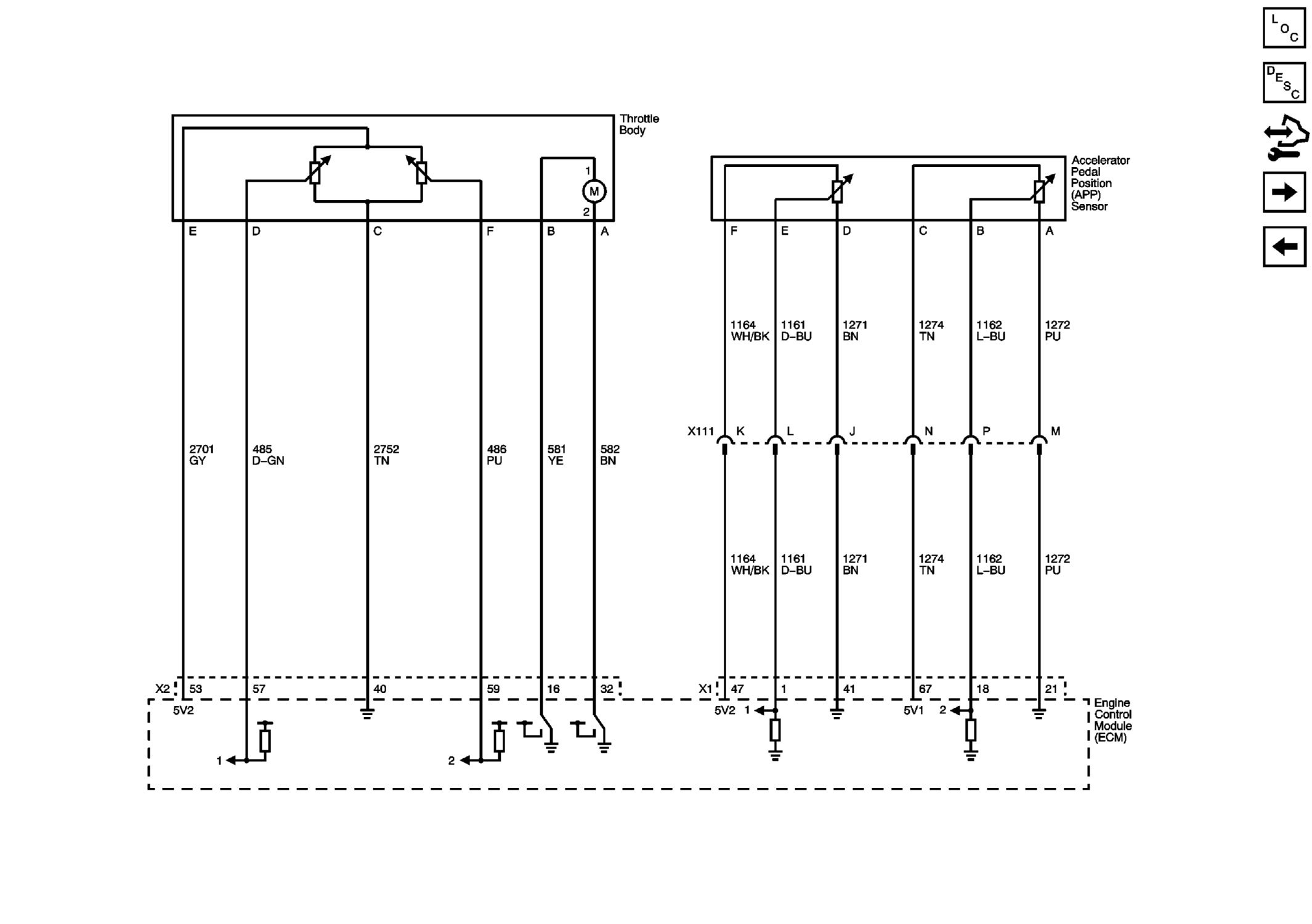

Fig 5: Electronic Throttle Controls Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

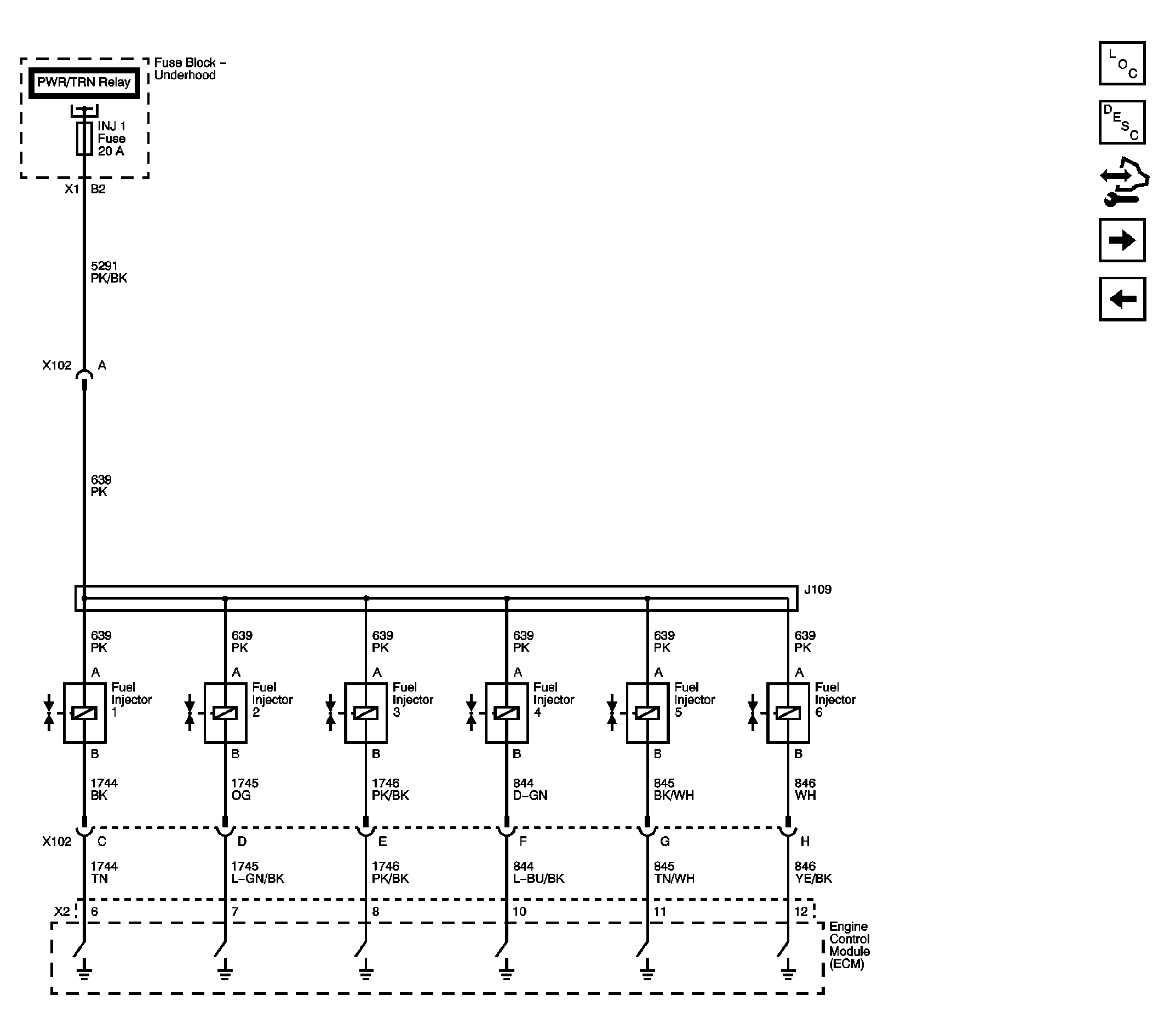

Fig 6: Fuel Injectors And Fuel Pump Controls Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

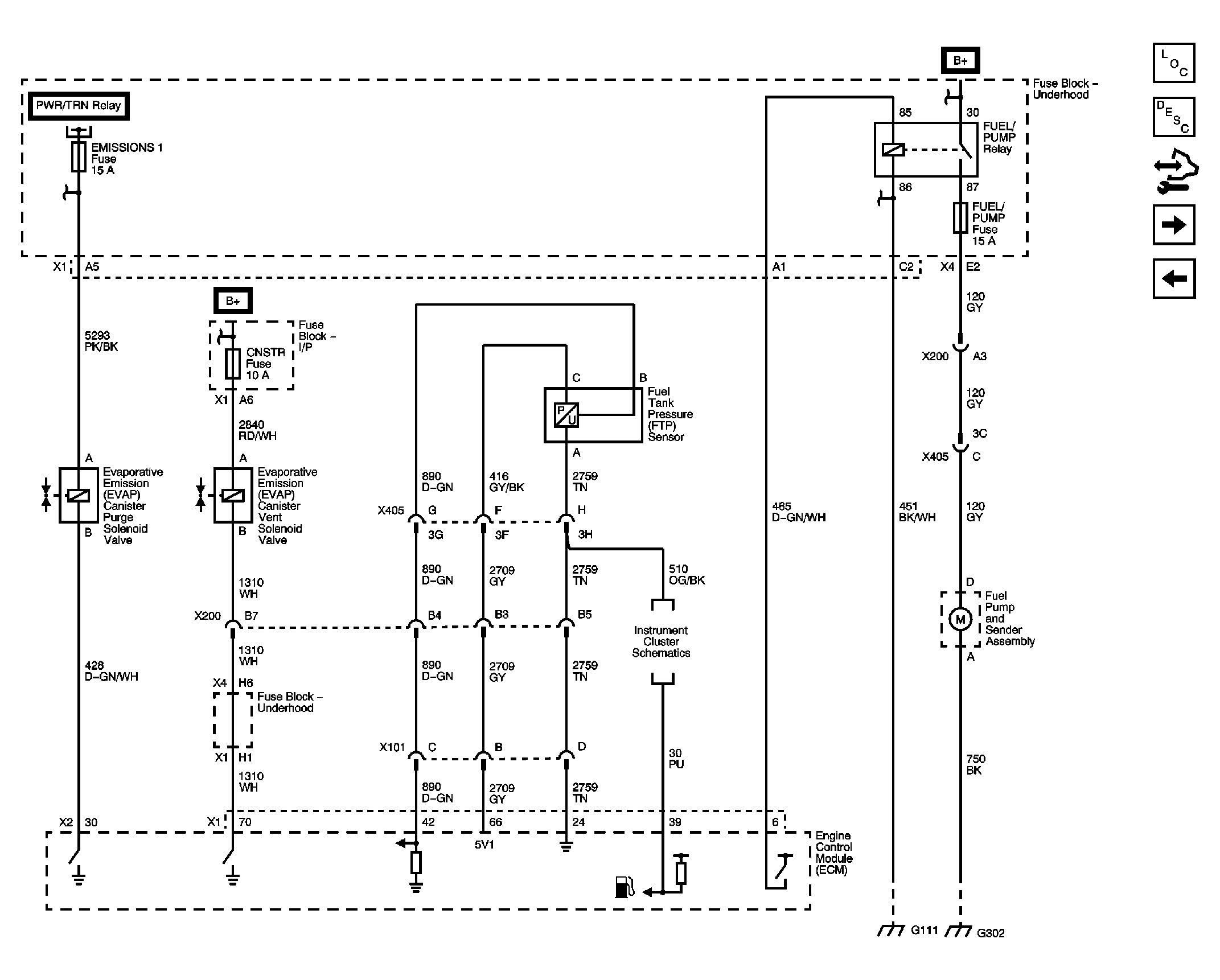

Fig 7: EVAP Solenoids And FTP Sensor Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Control Module Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

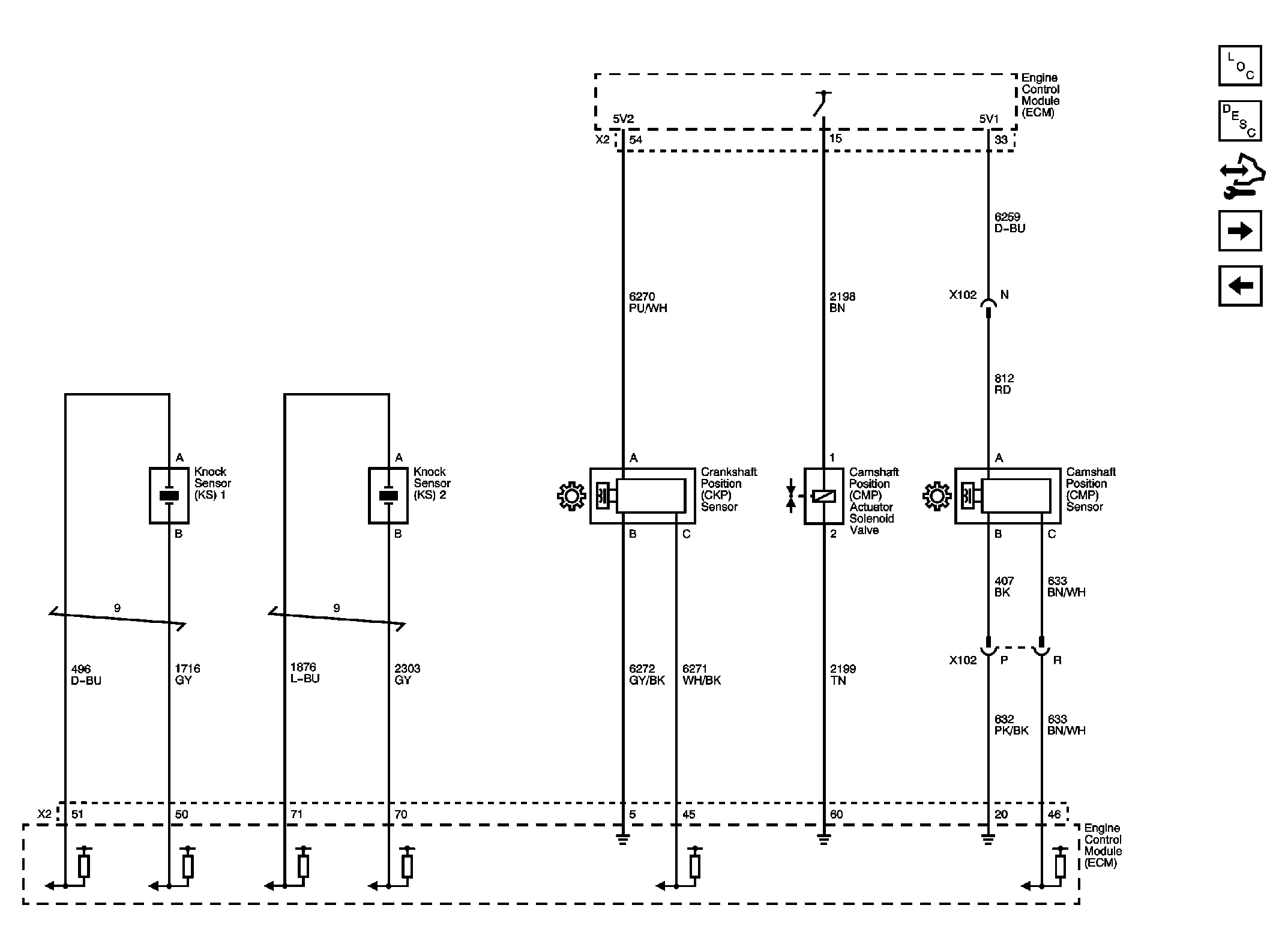

Fig 9: Camshaft, Crankshaft, Knock Sensors And Camshaft Position Actuator Solenoid Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

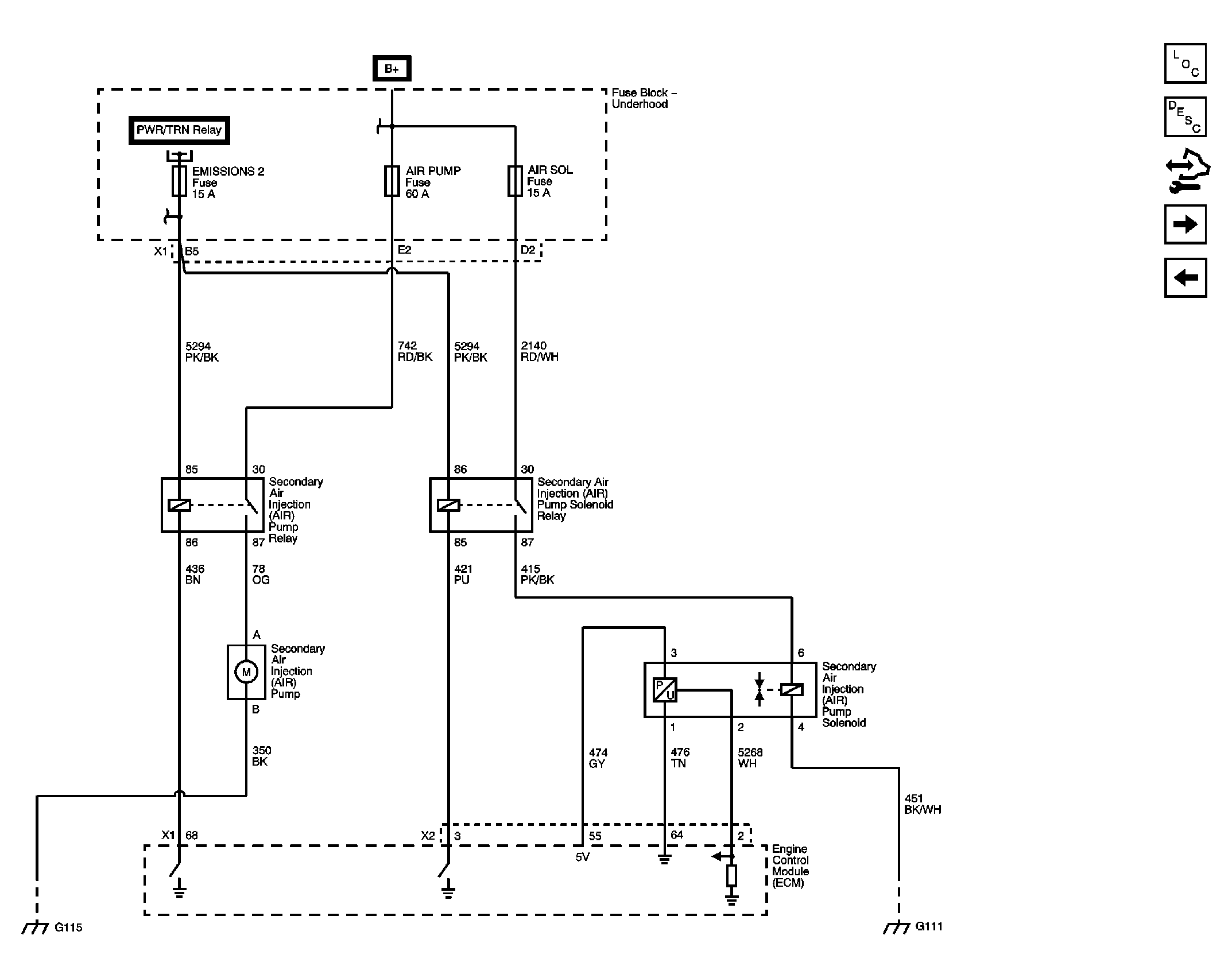

Fig 10: Secondary Air Injection (NU3) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

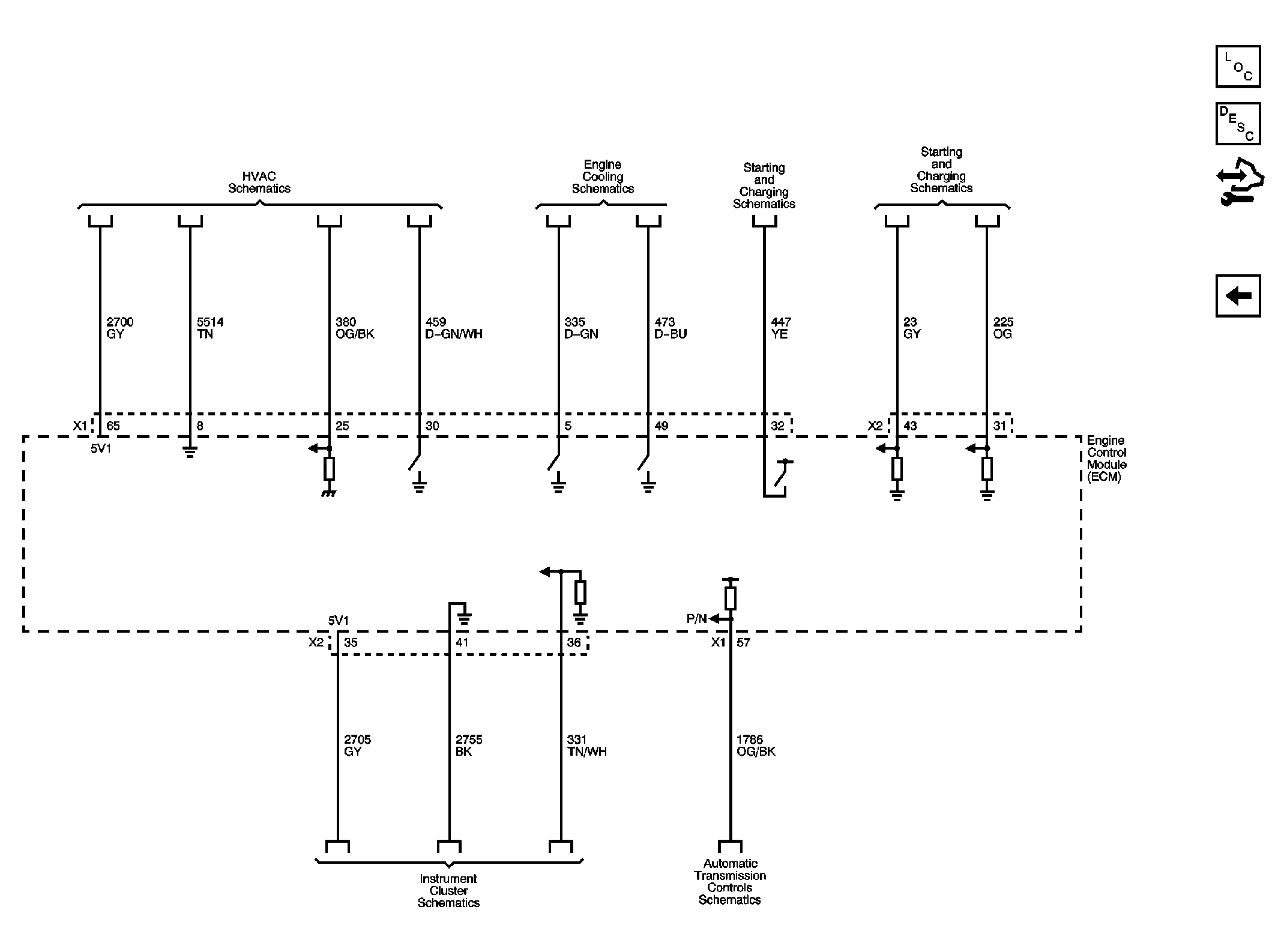

Fig 11: Controlled/Monitored Subsystem References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
