Section 11 (Automatic Transmission - 4T65-E - Description And Operation)
>>
Description and Operation
>>
Automatic Transmission Hydraulic Diagrams
>>
Drive Range, Manual Third (from Overdrive Range)
>>
Drive Range, Manual Third - A/T System Hydraulic Diagram
Drive Range, Manual Third - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.

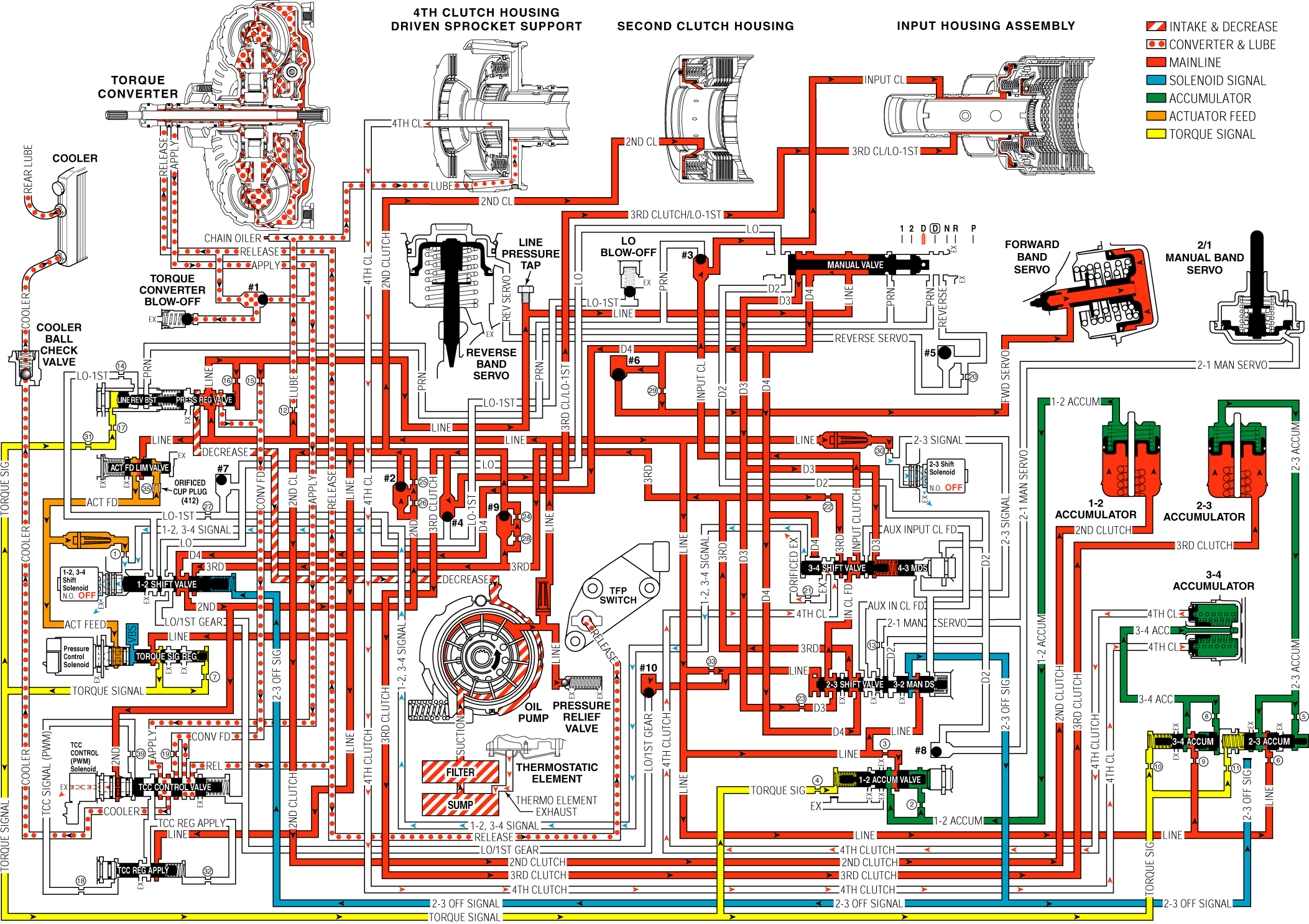

Fig 1: Drive Range, Manual 3rd - from Overdrive Range - Without Touch Activated Power Fluid Flow Diagram
Courtesy of GENERAL MOTORS CORP.
