Starting And Charging Wiring Schematics

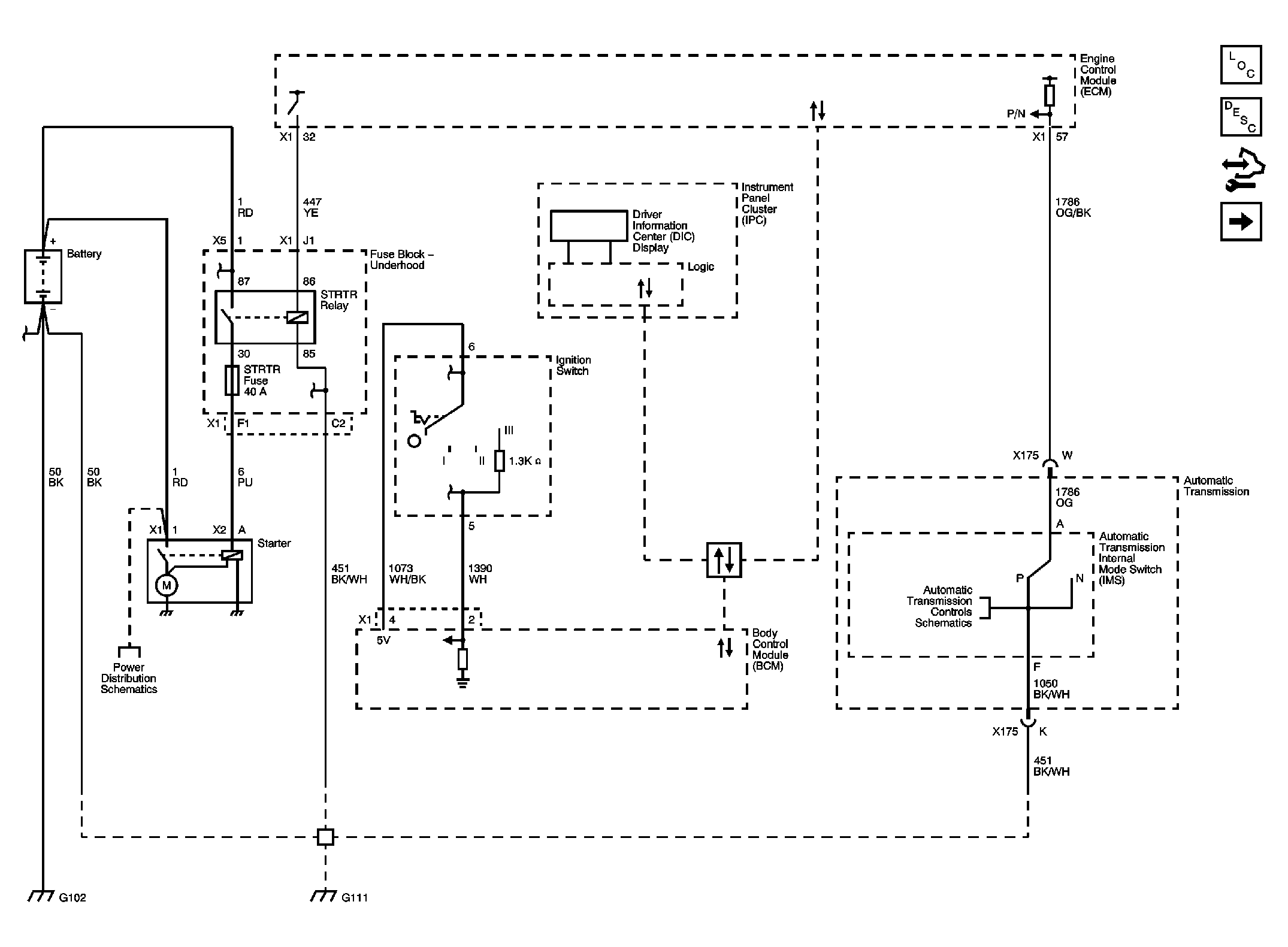

Fig 1: Starting And Charging Wiring Schematic

GM2401424

Courtesy of GENERAL MOTORS CORP.

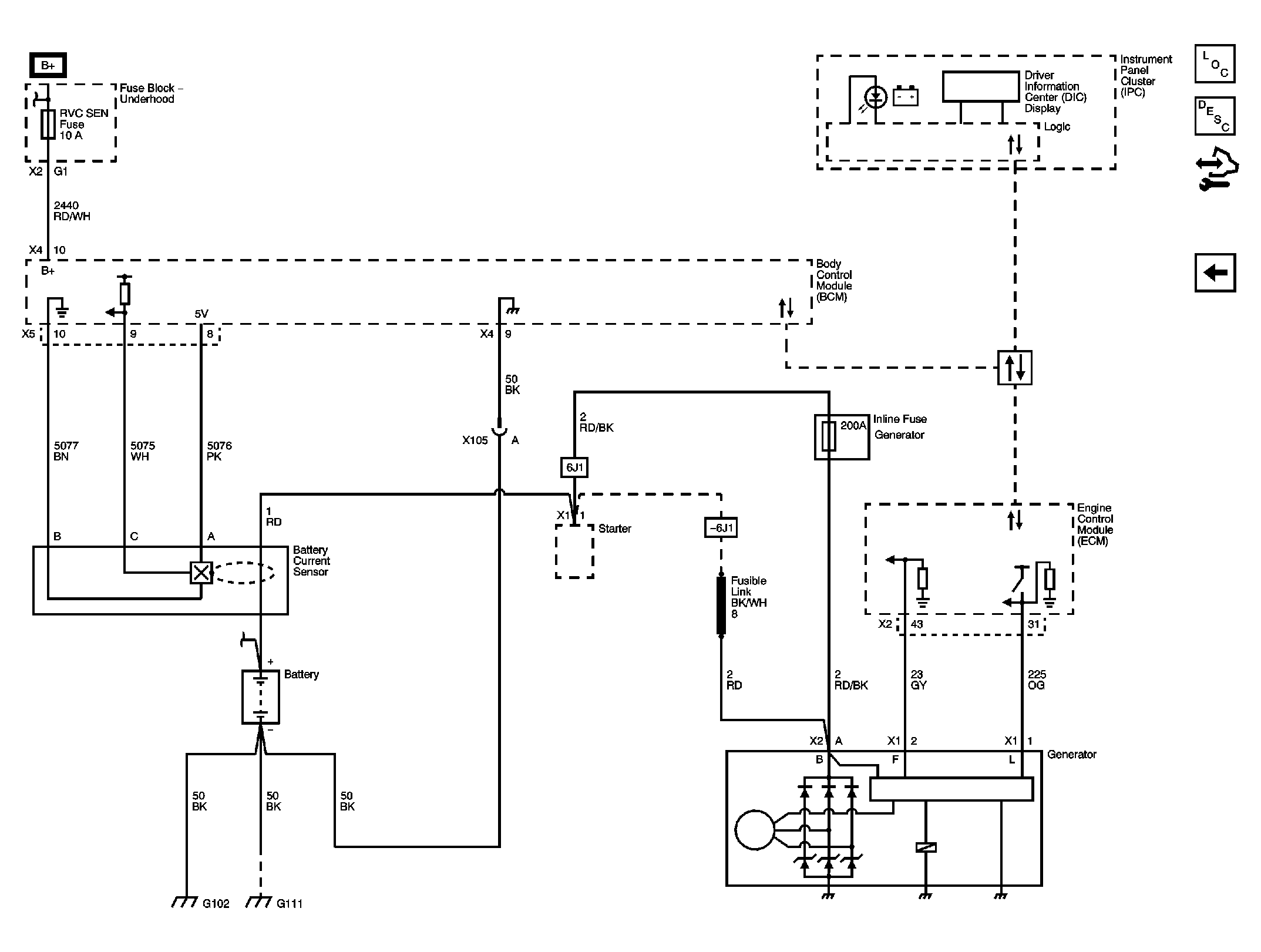

Fig 2: Generator Wiring Schematic

GM2401426

Courtesy of GENERAL MOTORS CORP.
