Installation Procedure

  1. Transfer the string to either end of the new hood release cable.

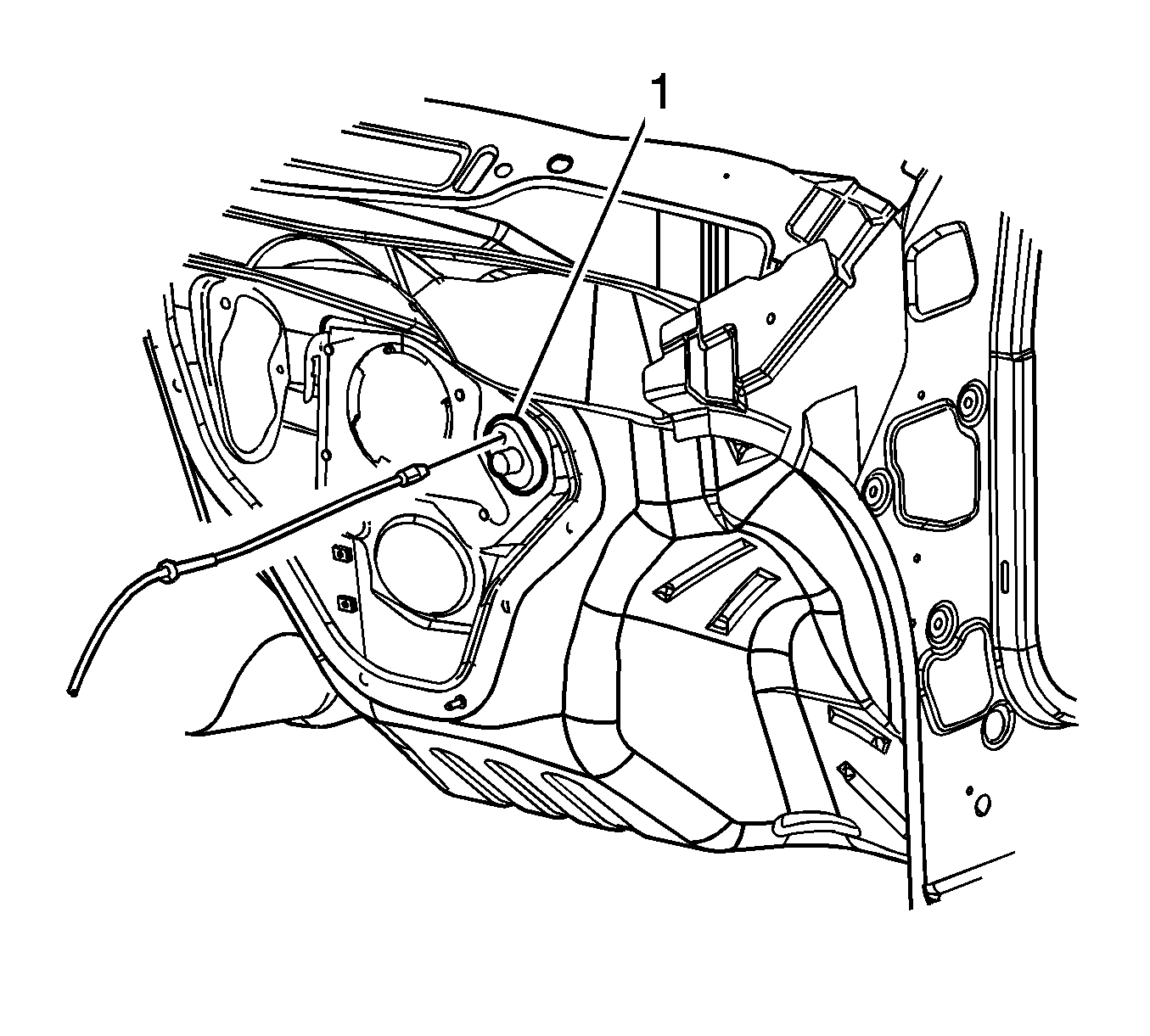

    2. Fig 1: Hood Release Cable Grommet
    GM1613475Courtesy of GENERAL MOTORS CORP.
  2. Route the string and the hood release cable into the passenger compartment.
  3. Remove the string from the hood release cable.
  4. Seat the hood release cable grommet (1) into the cowl.
  5. Connect the hood release cable to the hood release handle.
  6. Install the carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Impala) .

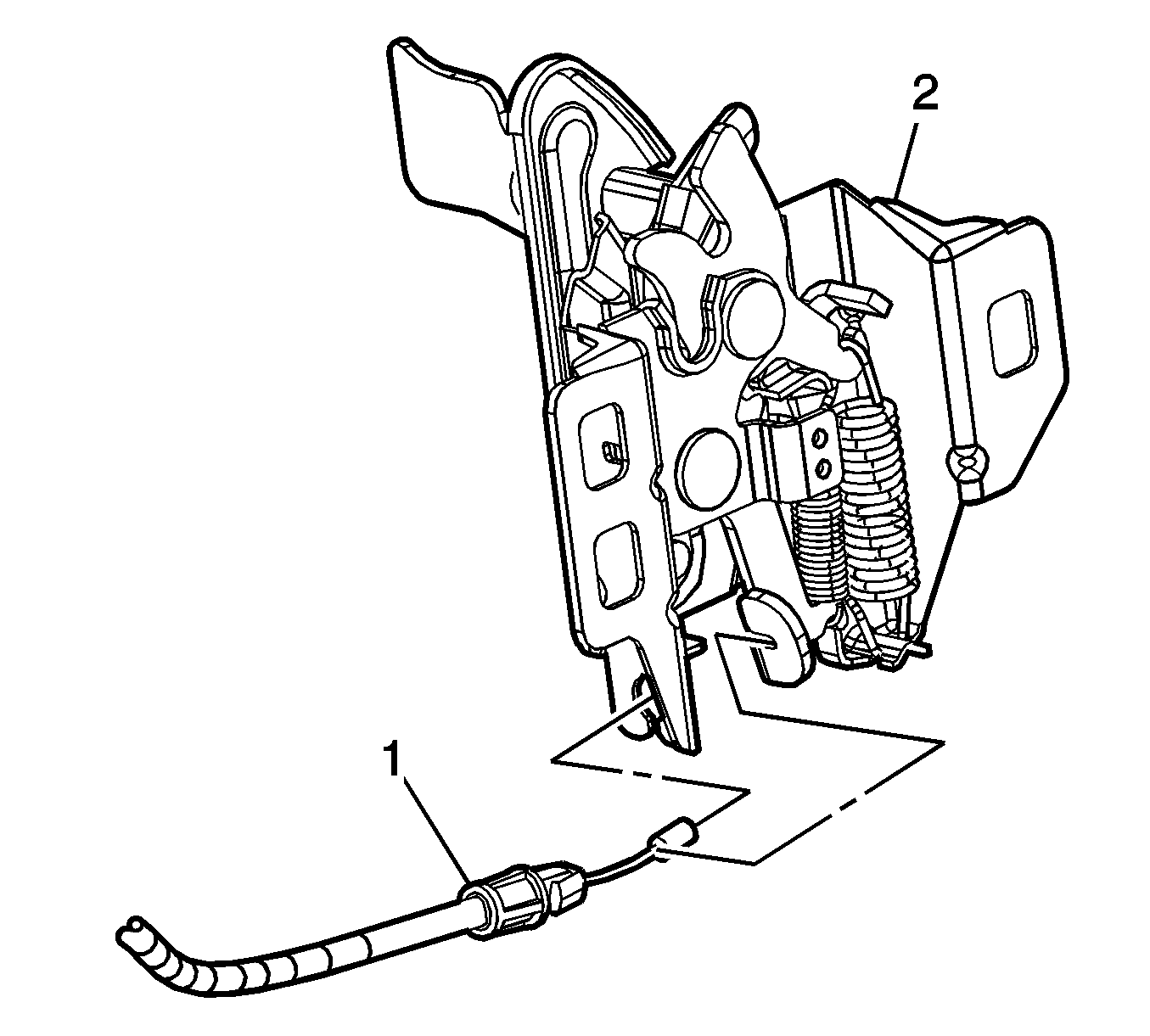

    7. Fig 2: Hood Latch Release Cable
    GM1613472Courtesy of GENERAL MOTORS CORP.
  7. Remove the string from the hood release cable.
  8. Install the hood release cable (1) from the hood latch (2).
  9. Install the hood latch. Refer to Hood Primary and Secondary Latch Replacement .
  10. Close the hood.
  11. Pull the string and the hood release cable into the engine compartment.
