Fuel Tank Filler Door Replacement

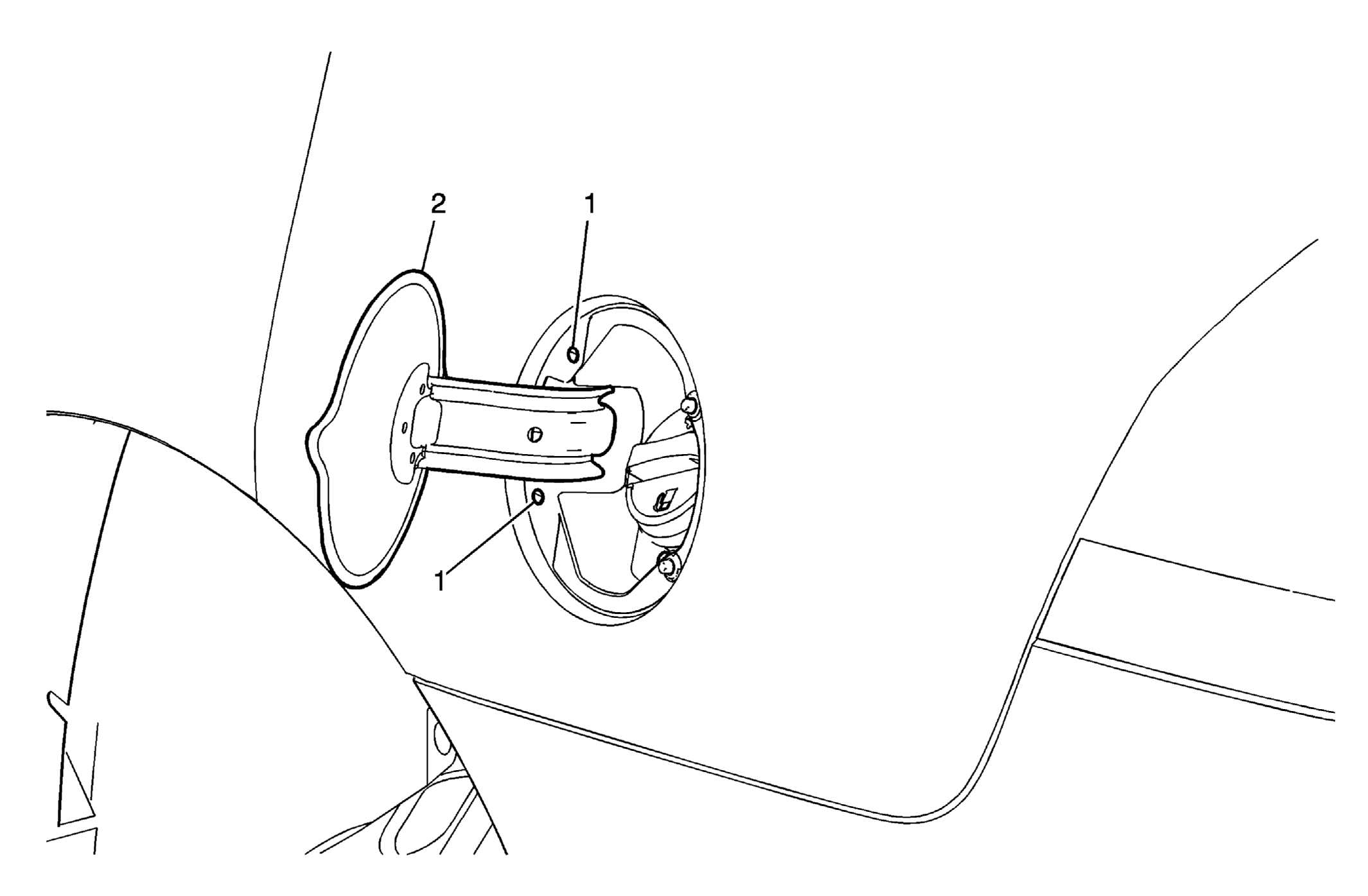

Fig 1: Fuel Tank Filler Door
GM1592557Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Filler Door Rivet (Qty: 2)
WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
2 Fuel Filler Door
