Front Fender Replacement

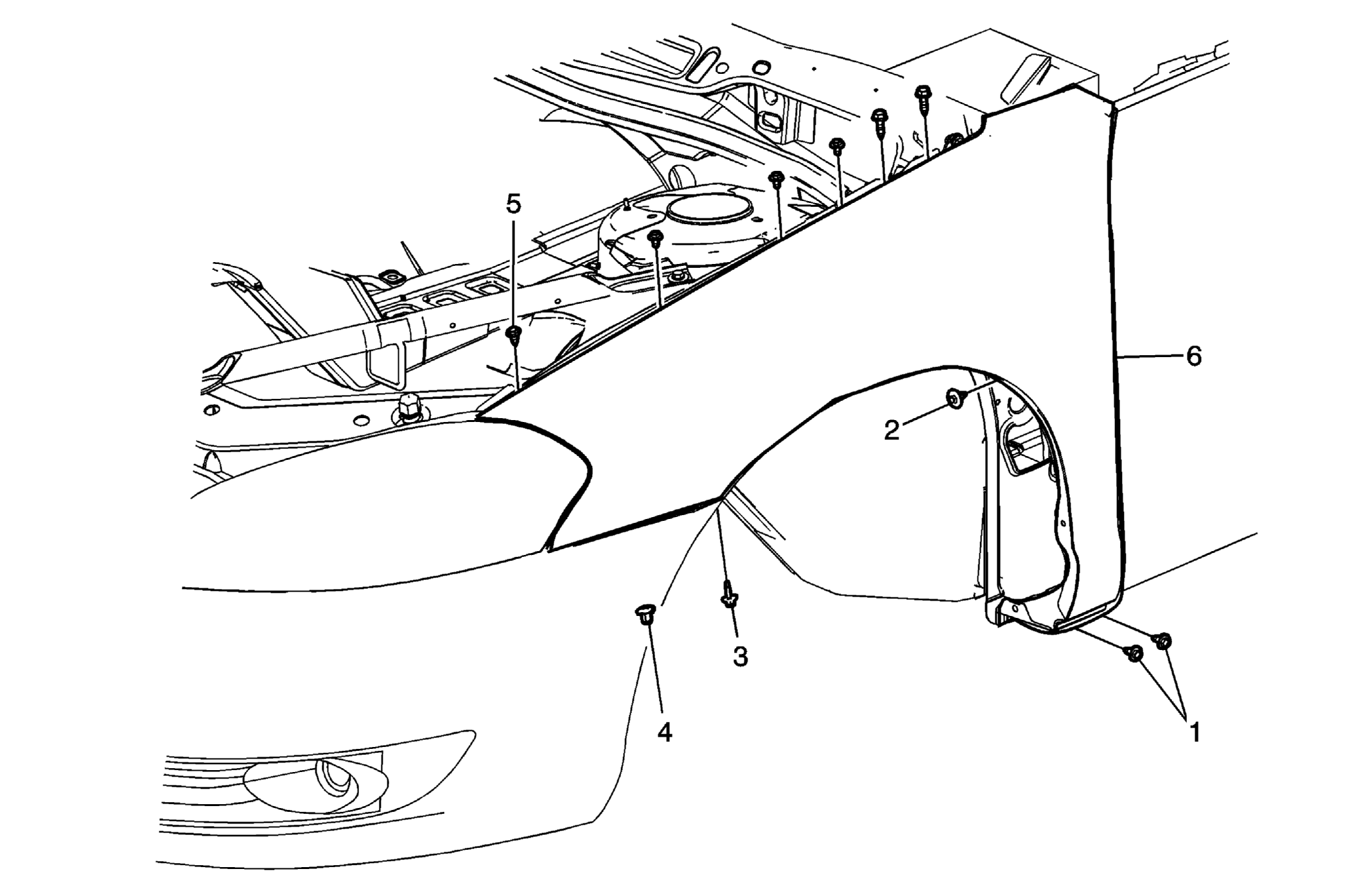

Fig 1: Front Fender

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fender Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Fender Bolt Tighten: 10 N.m (89 lb in)
3	Front Fender Bolt Tighten: 10 N.m (89 lb in)
4	Front Fender Nut Tighten: 10 N.m (89 lb in)
5	Front Fender Bolts (Qty: 6) Tighten: 10 N.m (89 lb in)
6	Front Fender
