Power, Ground, DIC, Illumination, MIL, and Security Indicator

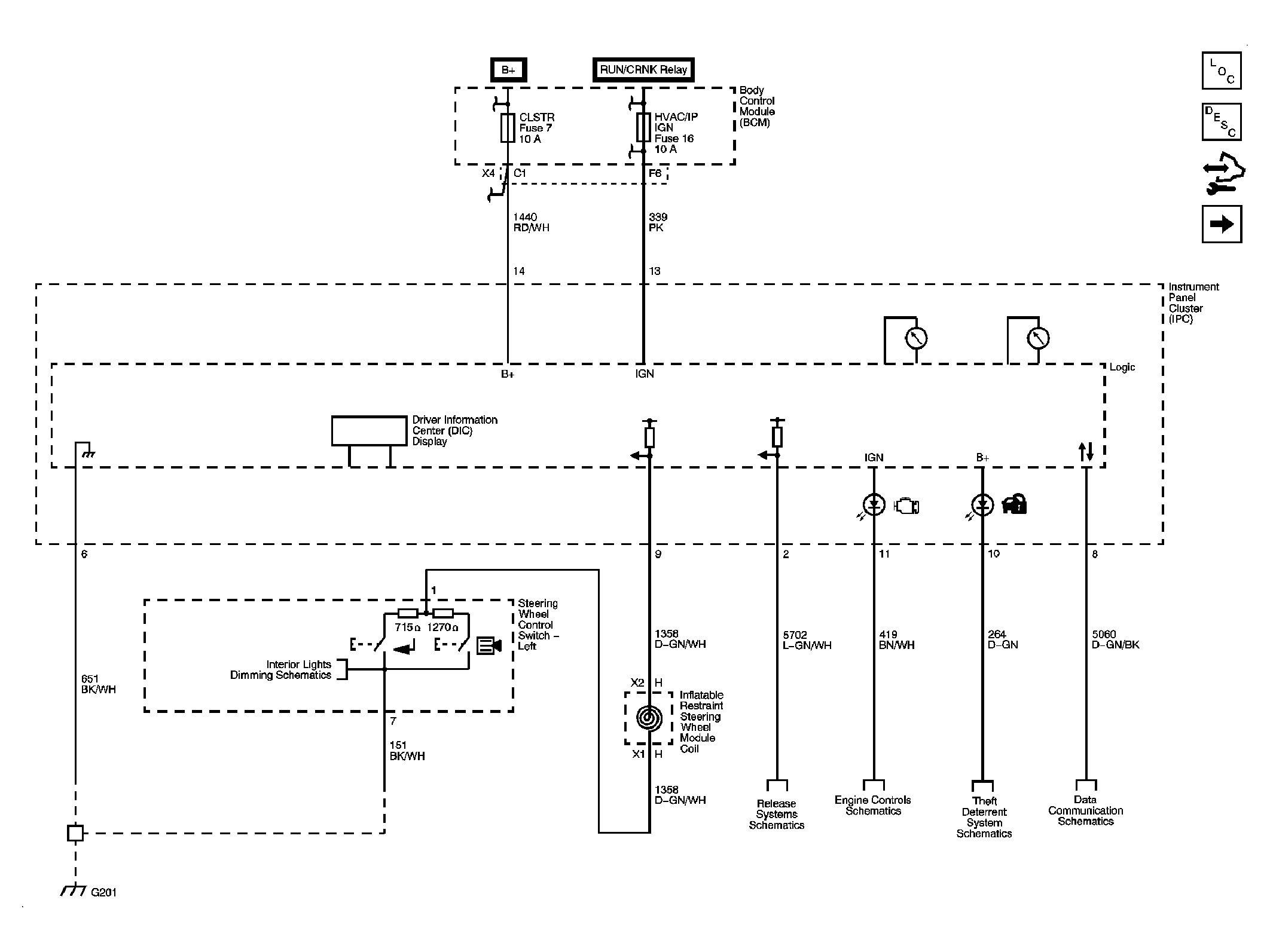

Fig 1: Power, Ground, DIC, Illumination, MIL, and Security Indicator Wiring Schematic

GM2376918

Courtesy of GENERAL MOTORS COMPANY
