Ambient Air Temperature, EOP, and Fuel Level Sensors and Indicators

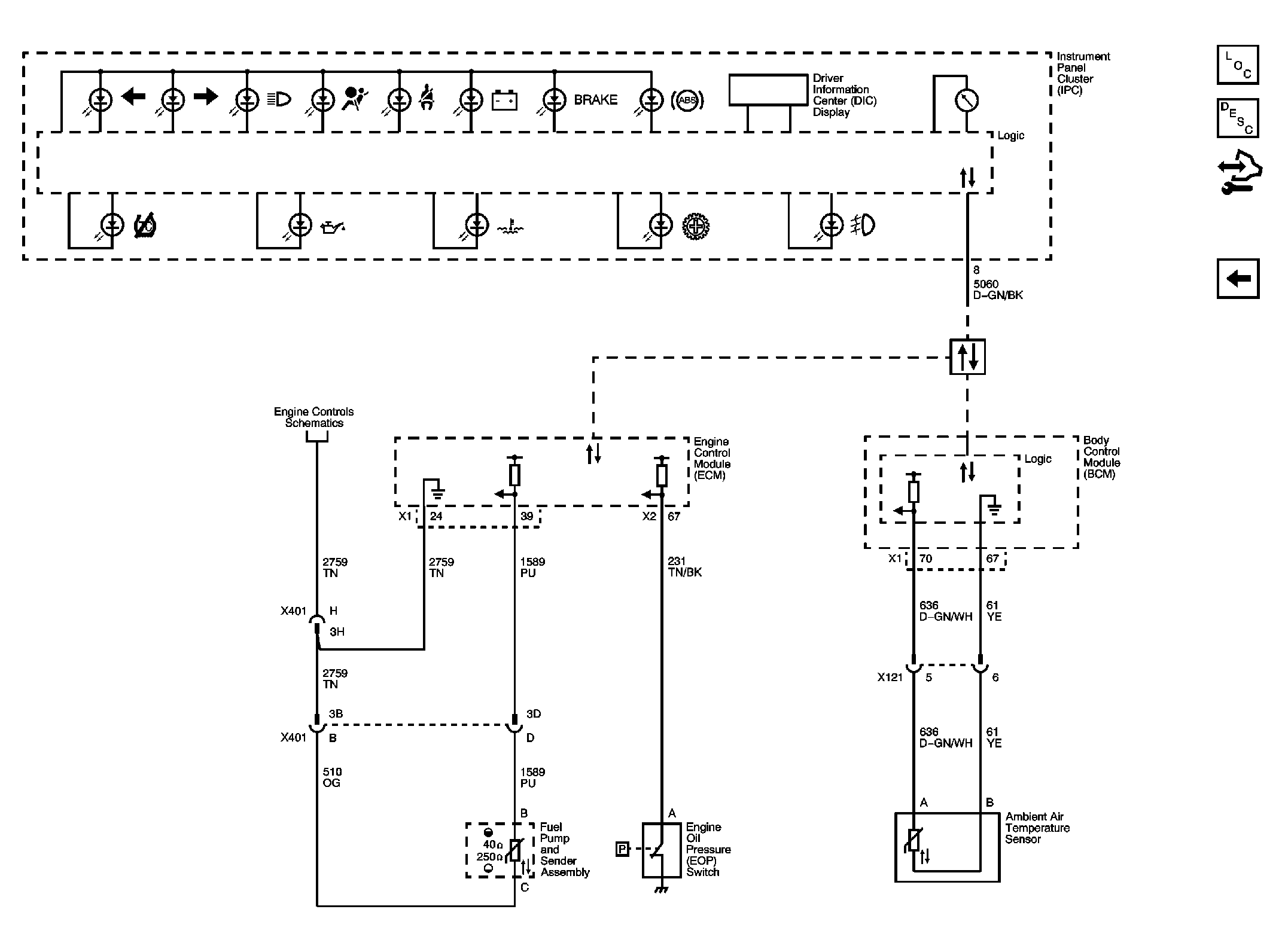

Fig 1: Ambient Air Temperature, EOP, and Fuel Level Sensors and Indicators Wiring Schematic

GM2376919

Courtesy of GENERAL MOTORS COMPANY
