Rear Wheel Bearing and Hub Replacement

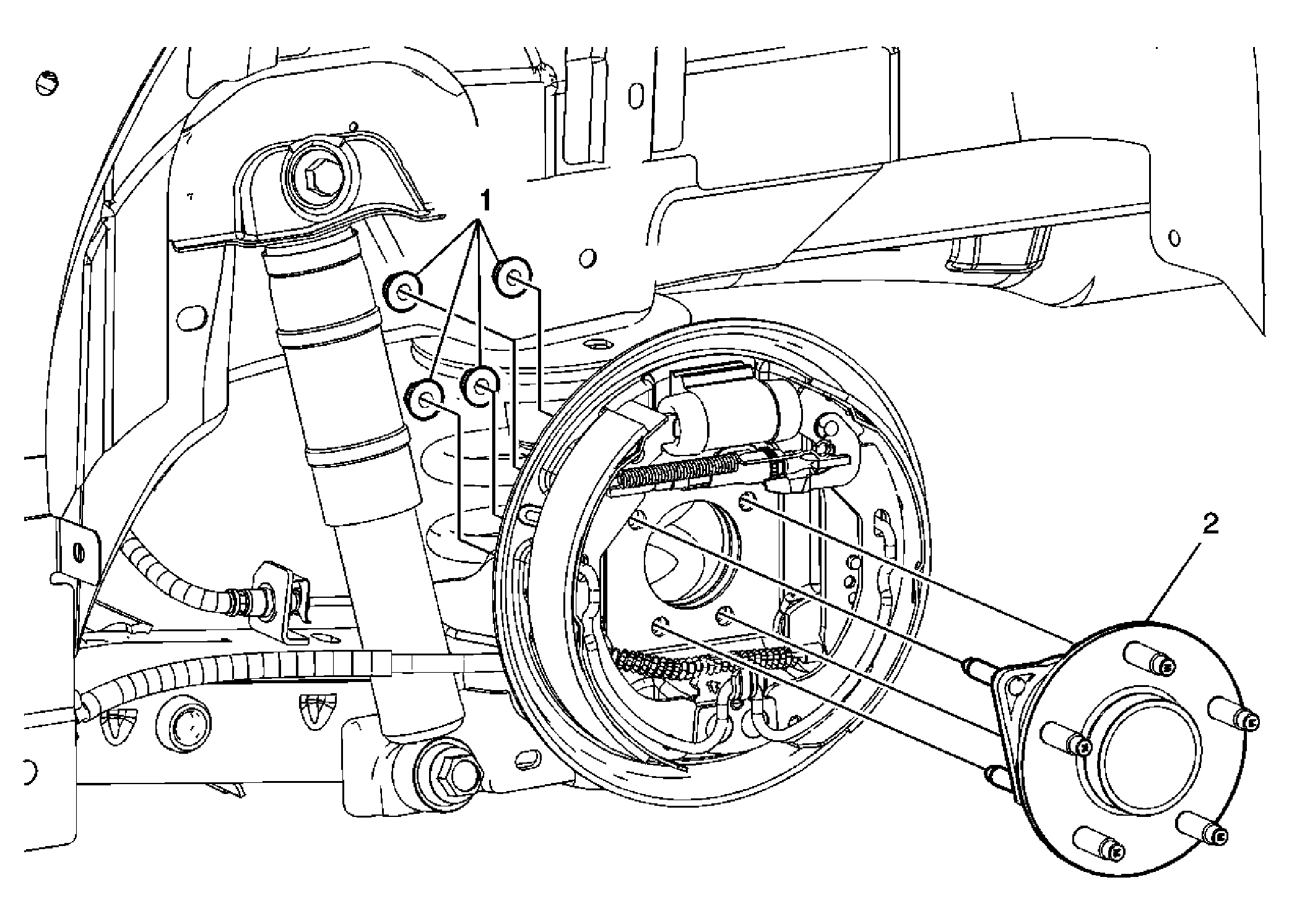

Fig 1: Wheel Bearing/Hub - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the rear brake drum. Refer to Brake Drum Replacement .
1	Rear Wheel Bearing Nuts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) plus 30°
2	Rear Wheel Bearing

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the rear brake drum. Refer to Brake Drum Replacement .

Rear Wheel Bearing Nuts (Qty: 4)

CAUTION:

Tighten
45 N.m (33 lb ft) plus 30°

Rear Wheel Bearing
