Front Wheel Bearing and Hub Replacement

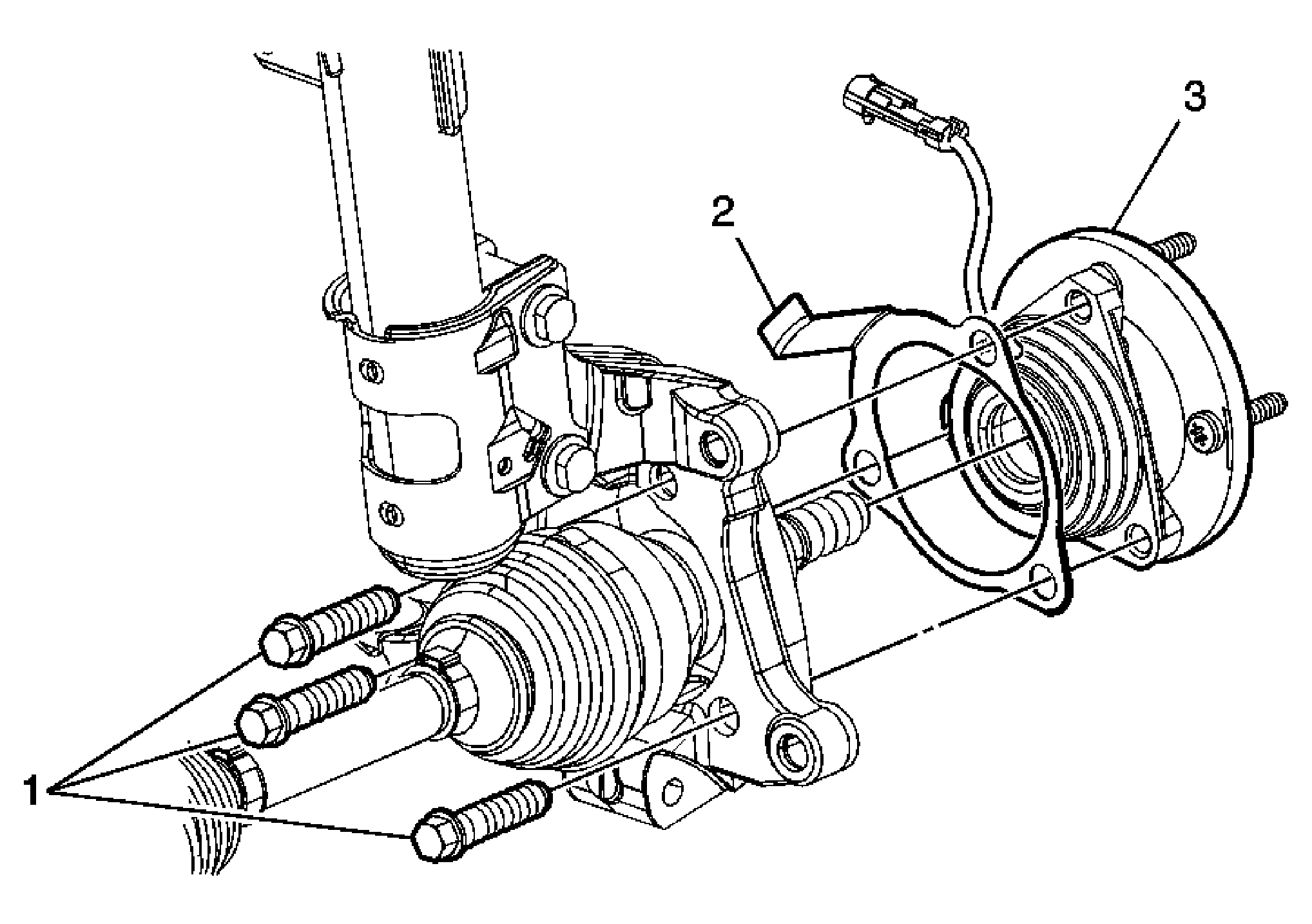

Fig 1: Front Wheel Bearing And Hub

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the brake rotor. Refer to Front Brake Rotor Replacement .
1	Wheel Bearing Bearing/Hub Assembly Mounting Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 115 N.m (85 lb ft)
2	Steering Knuckle Bearing Spacer
3	Wheel Bearing/Hub Bearing Assembly Procedure Remove the wheel speed sensor electrical connector from the front strut. Separate the wheel drive shaft from the steering knuckle. Refer to Wheel Drive Shaft Replacement .
