Accelerator Pedal with Position Sensor Assembly Replacement

Accelerator Pedal with Position Sensor Assembly Replacement

Removal Procedure




1. Remove the knee bolster. Refer to Knee Bolster Replacement (Service and Repair).
2. Remove the insulator panel. Instrument Panel Insulator Replacement (Instrument Panel Insulator Replacement).

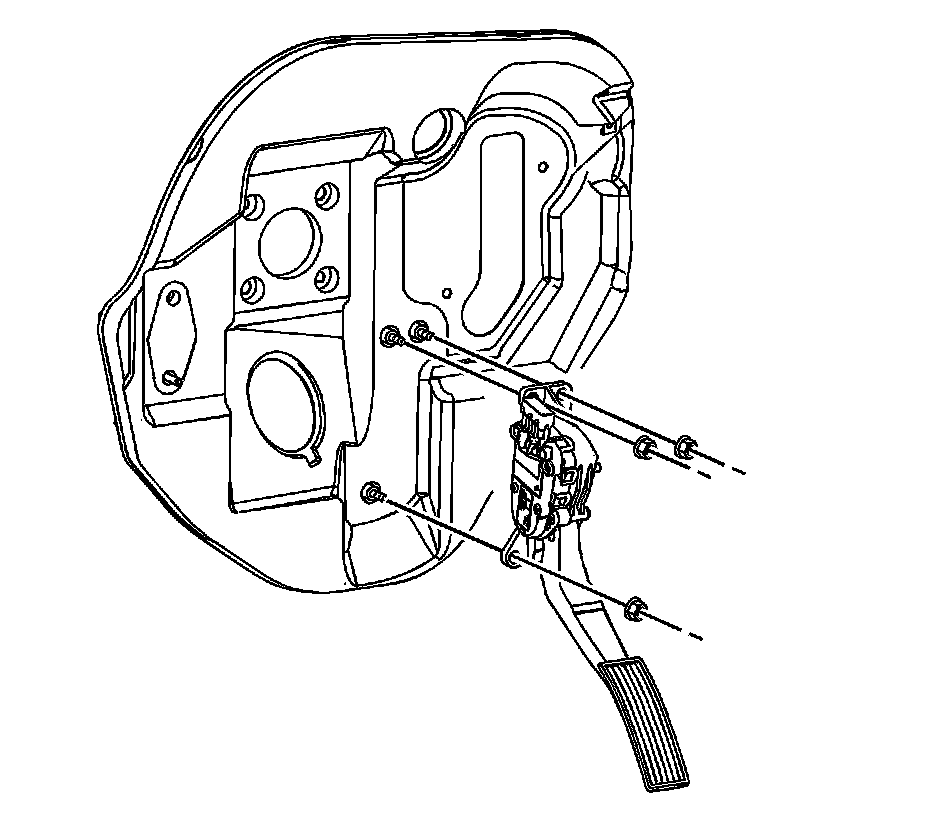

3. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).




4. Remove the APP sensor nuts.
5. Remove the APP sensor.

Installation Procedure




1. Install the APP sensor.

Caution: Refer to Fastener Caution (Fastener Caution)

2. Install and tighten the APP sensor nuts to 10 Nm(89 lb in).




3. Connect the APP sensor electrical connector (1).
4. Install the insulator panel. Instrument Panel Insulator Replacement (Instrument Panel Insulator Replacement).
5. Install the knee bolster. Refer to Knee Bolster Replacement (Service and Repair).
