Door Switch: Diagrams




Component Connector End Views

Door Jamb Switch - Driver






Door Jamb Switch - Left Rear (without Panel Van)

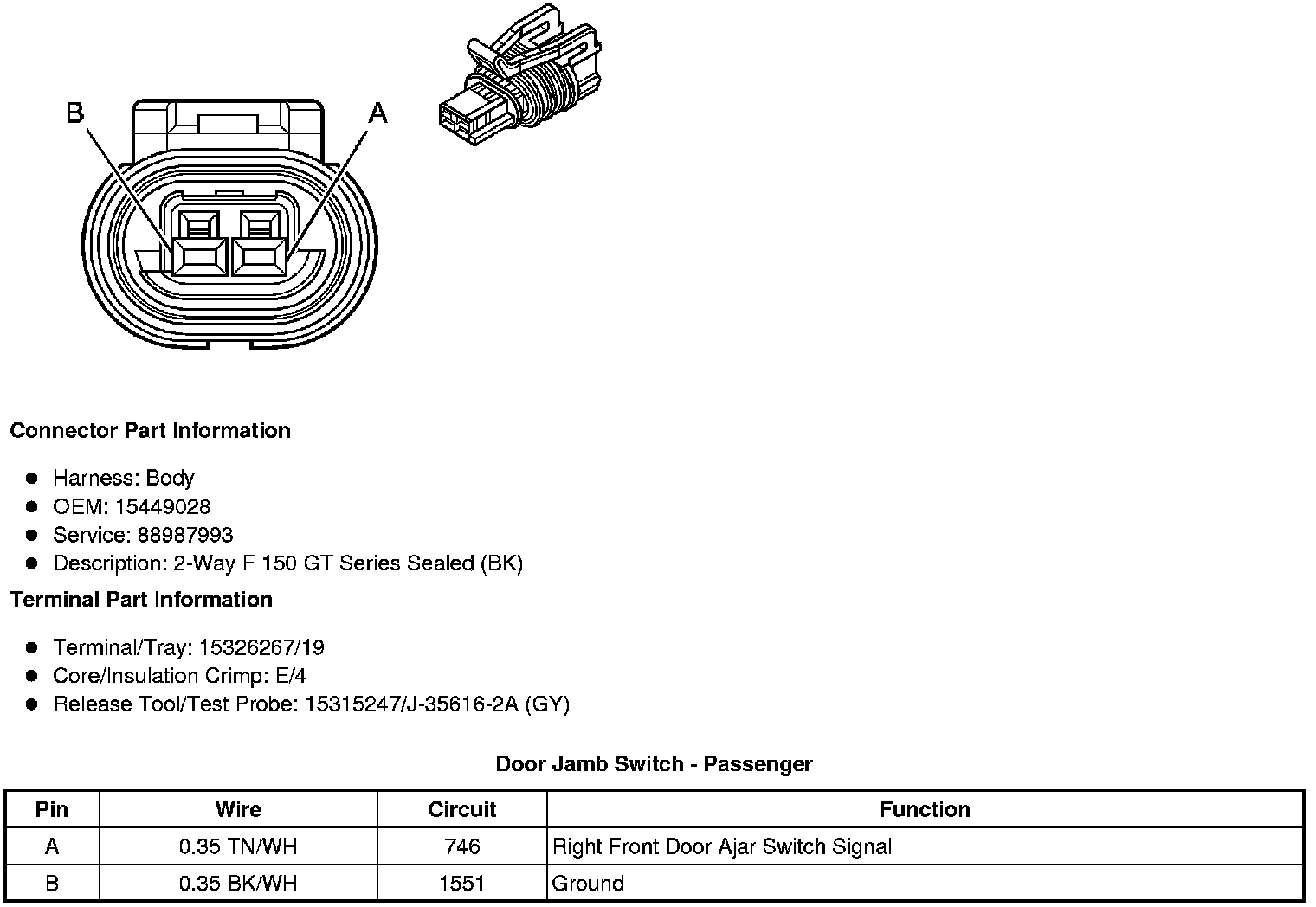

Door Jamb Switch - Passenger

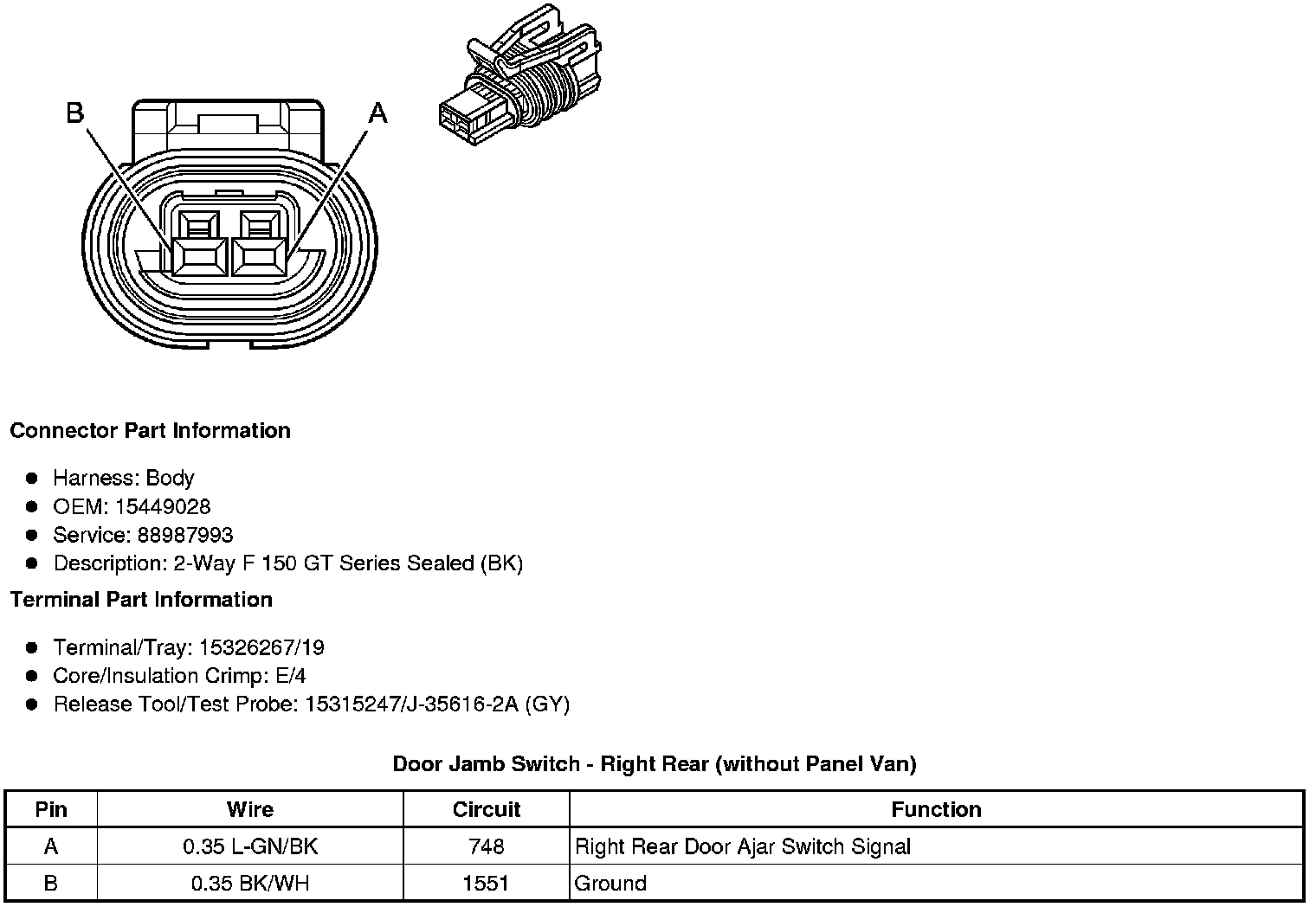

Door Jamb Switch - Right Rear (without Panel Van)
