Seat Belt Tension Sensor: Diagrams

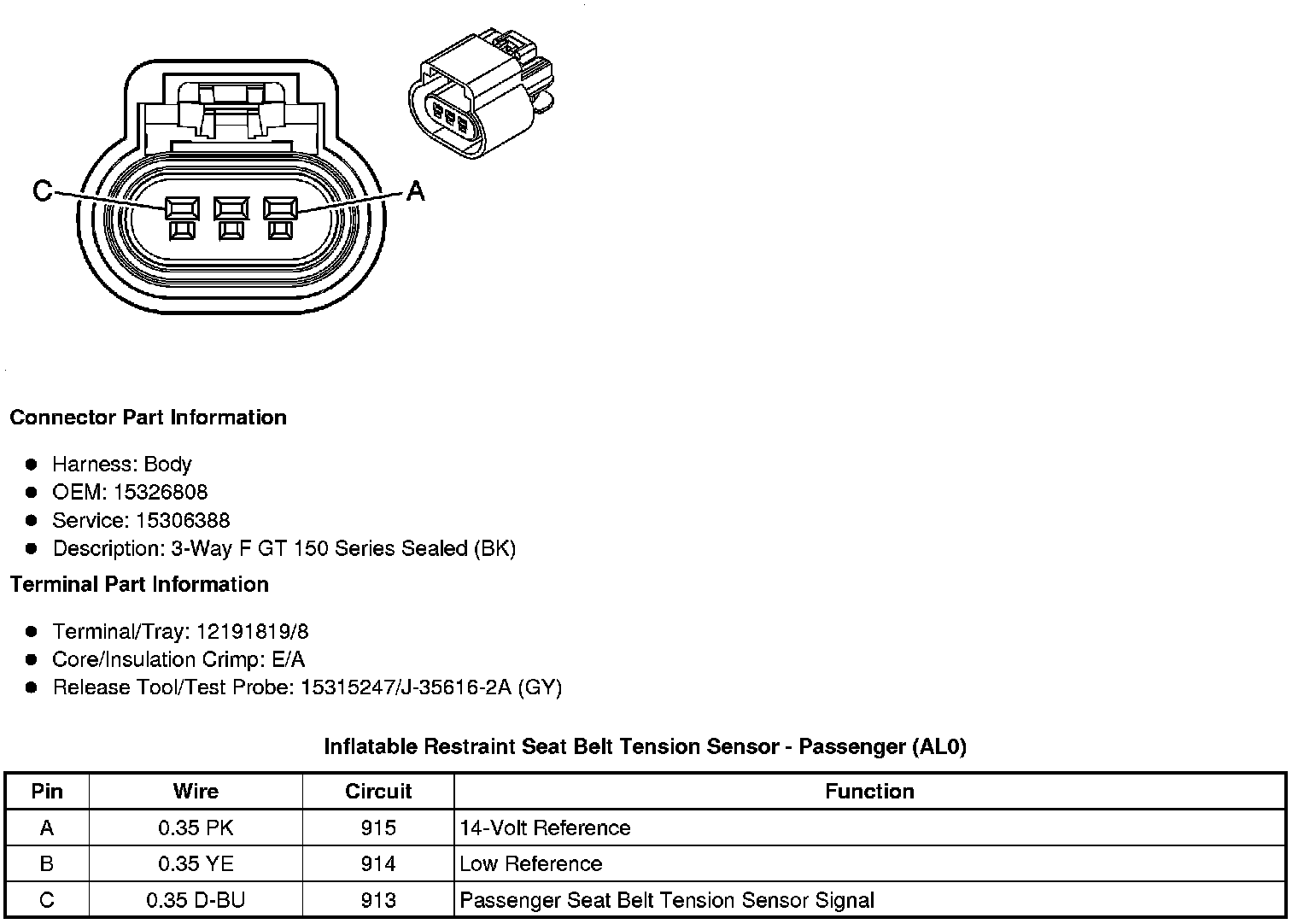

Component Connector End Views

Inflatable Restraint Seat Belt Tension Sensor - Passenger (AL0)
